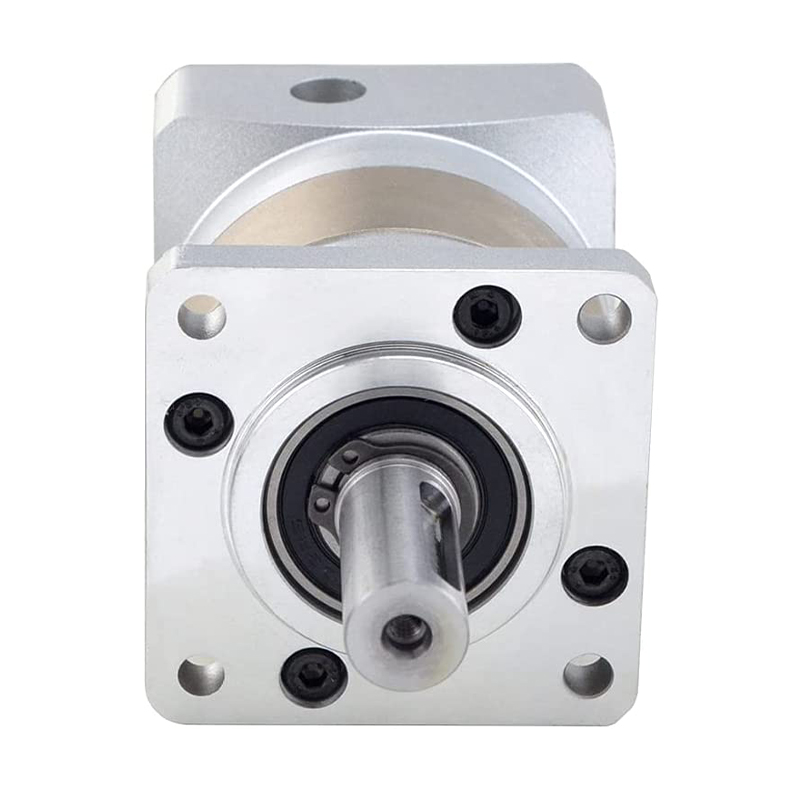

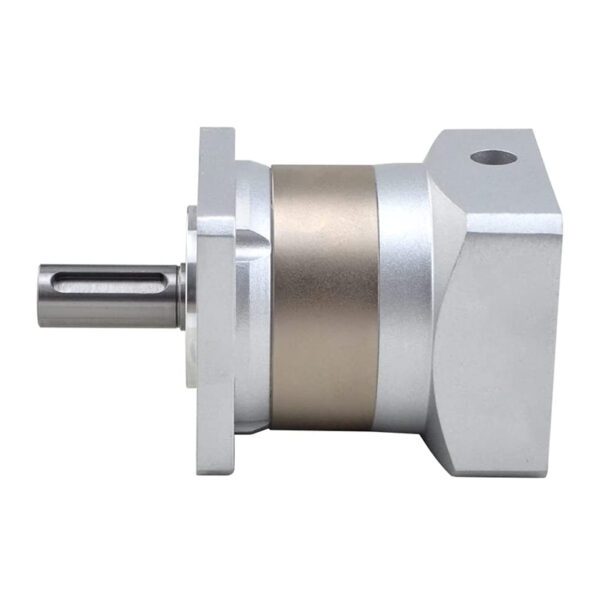

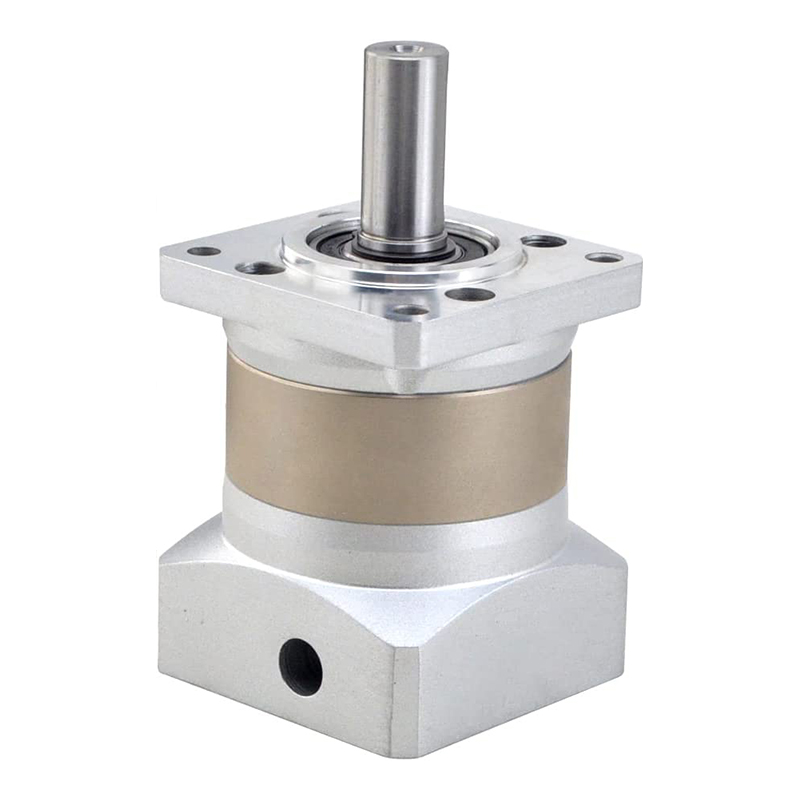

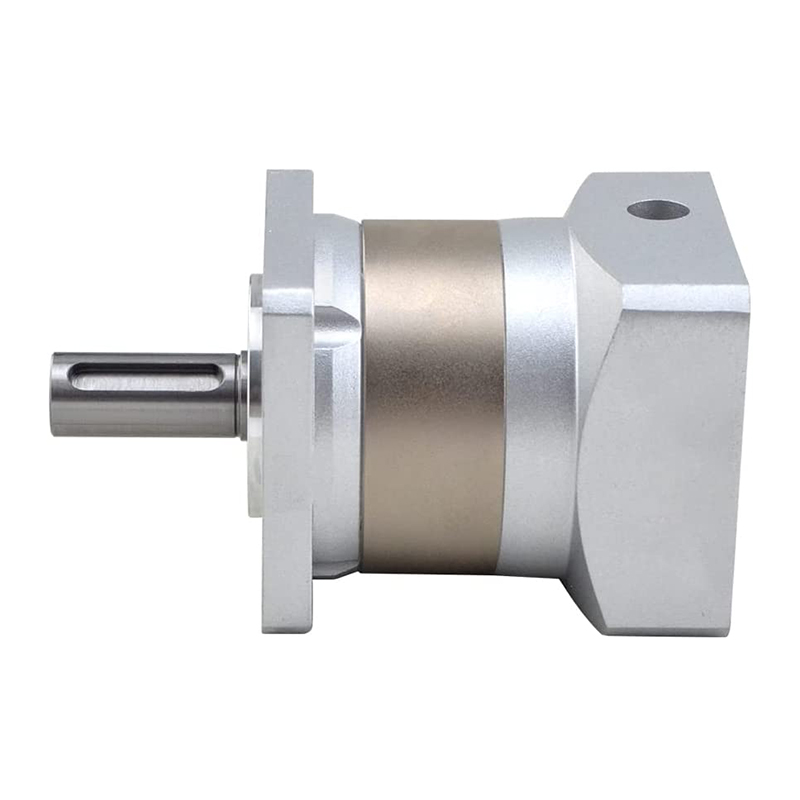

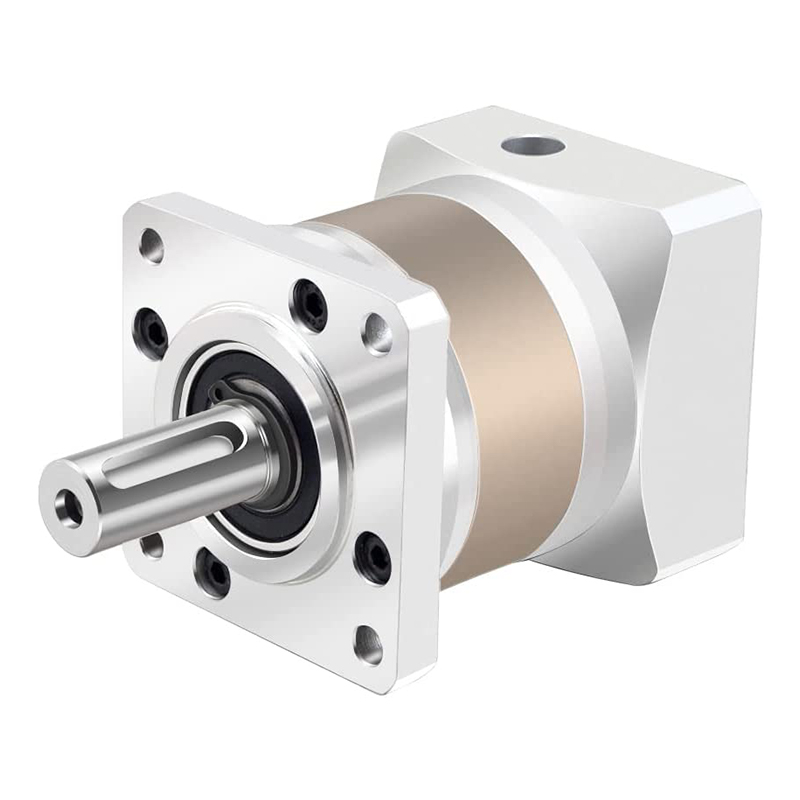

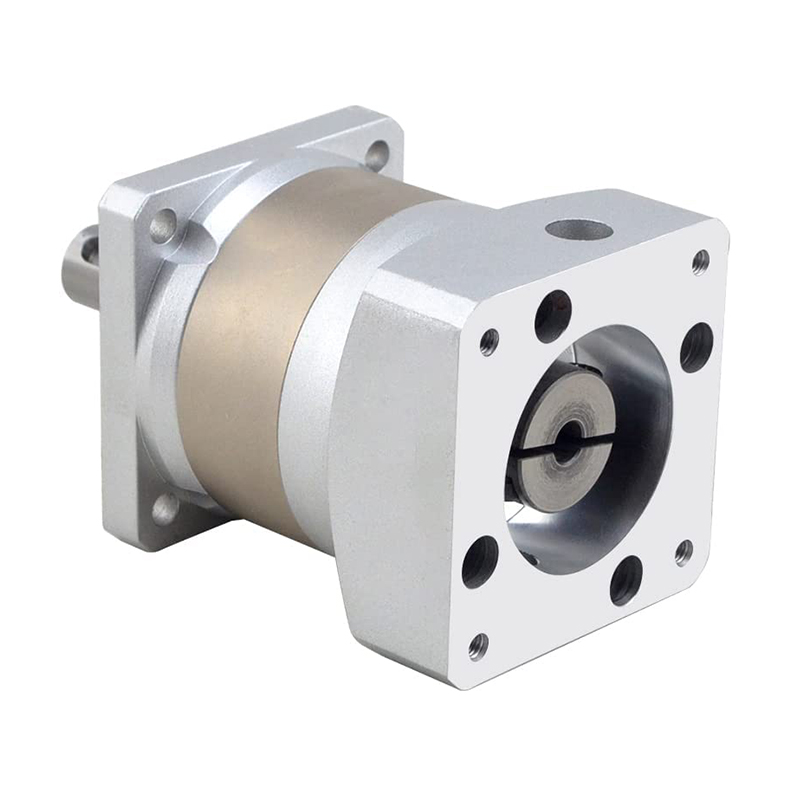

The gearbox is a gearbox with the same center of rotation for both input and output. This means that the center of the input gear rotates around the center of the output gear, and the input shaft and output shaft are aligned. The structure of the gearbox reduces the transmission speed ratio while increasing the motor torque proportionally.
Gear Ratio | 10: 1 |
Efficiency | 96% |
Backlash at No-load | <=15 arcmin |
Max.Permissible Torque | 10 Nm(88.51 lb-in) |
Moment Permissible Torque | 20 Nm(177.01 lb-in) |
Noise | <=60dB |
Waterproof Rating | IP54 |

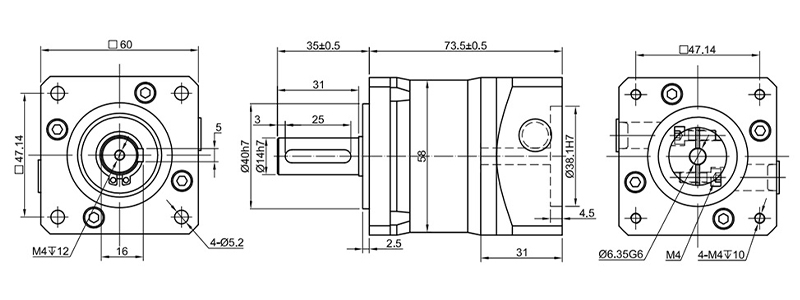

Frame Size | 60 x 60 mm |
Gearbox Length | 73.5 mm |
Output Shaft Diameter | Φ14 mm |
Output Shaft Length | 35 mm |
Input Shaft Diameter | Φ6.35 mm |
Input Shaft Length | 21~24 mm |
The gearboxes are used in various occasions where efficiency and high reduction ratios are needed in a small space. With high precision and high torque volume ratio. They are very suitable for the following applications: increasing torque, reducing speed, accurately positioning and controlling reproducible machinery.
