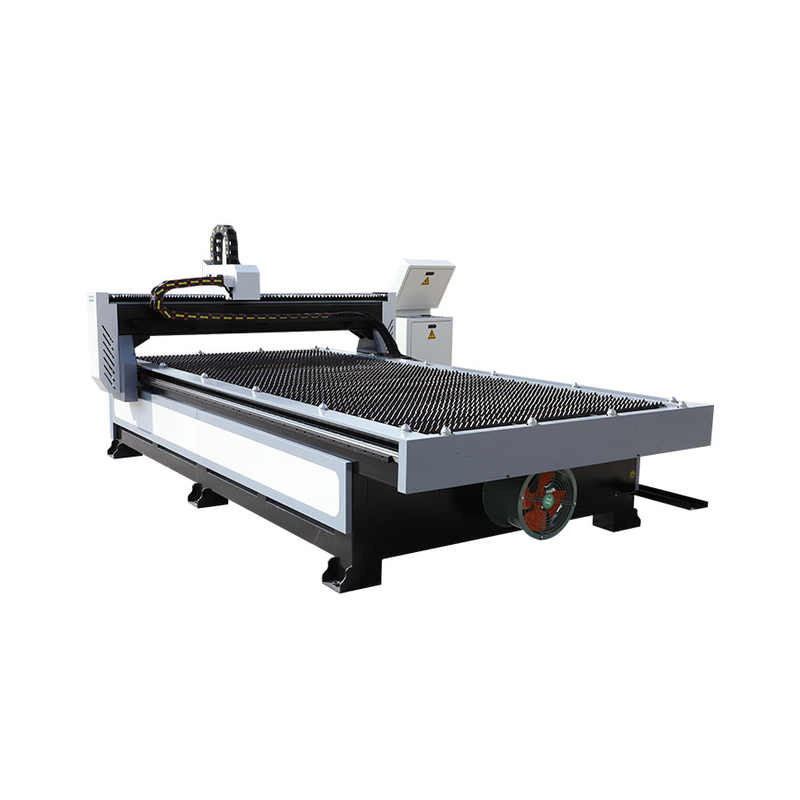

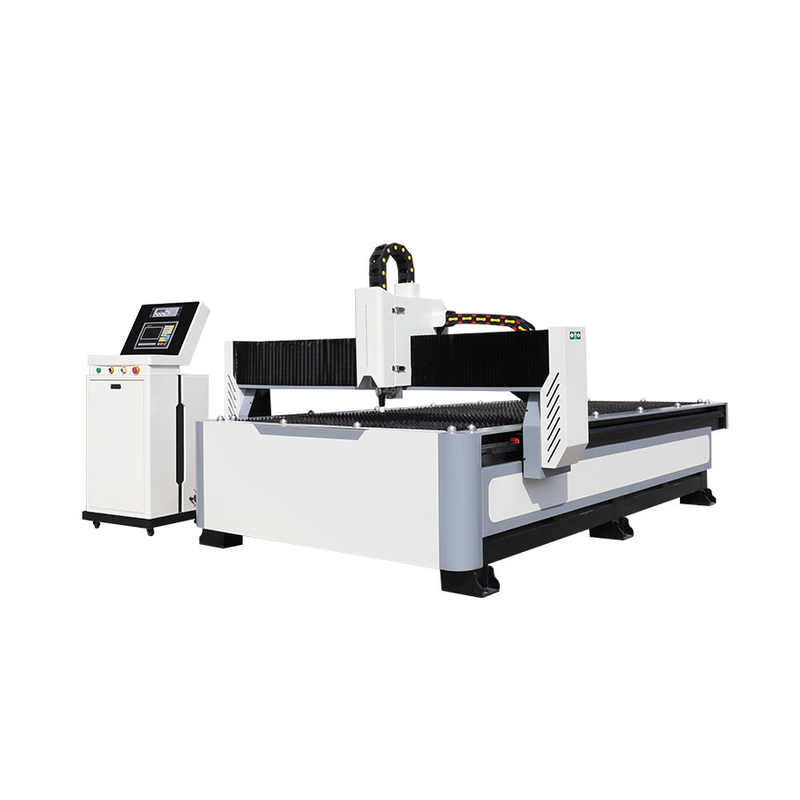

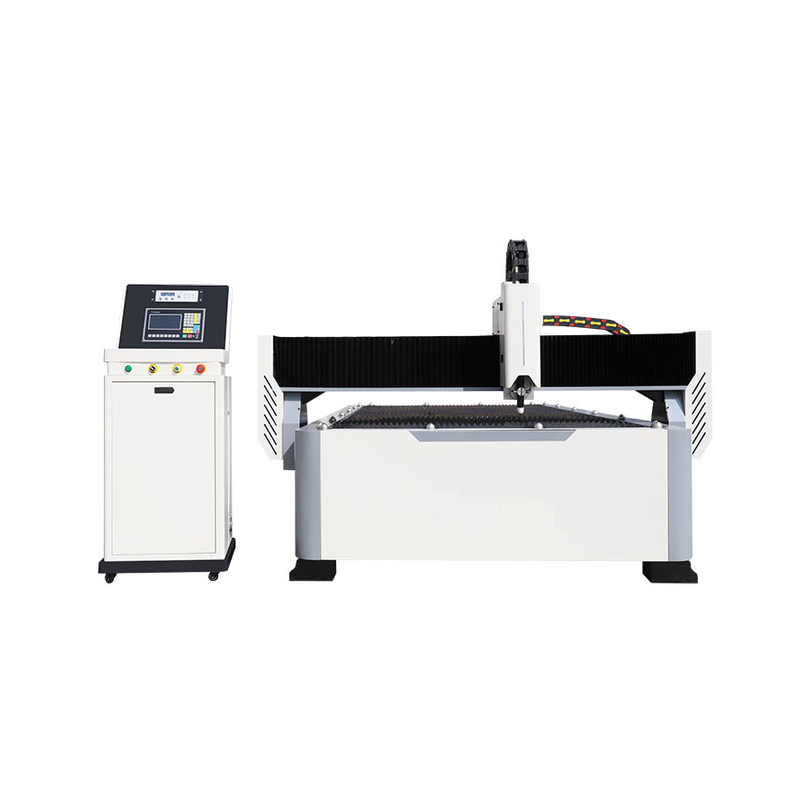

Gantry Plasma Flame Cutter Metal Sheet Cut CNC Table Plasma Cutting Machine
Application
Cutting materials: carbon steel, stainless steel, aluminum, copper and other non-ferrous metals.
Widely used in machinery, automobile, shipbuilding, petrochemical, military, metallurgy, aerospace, boiler pressure vessel,locomotive and other industries.
$3,800.00
CompareGantry Plasma Flame Cutter
| Technical indicators | Parameter |
| Working area | 1500*3000mm |
| Machine body | Thickened Square Tube Welding Body |
| Worktable | Sawtooth |
| Reducer | Japan SHIMPO |
| Control System | STARFIRE with THC |
| Plasma Power | HUAYUAN |
| Lubrication | Automatic |
| Transmission | X,Y-helical rack pinion, Z ball screw |
| Drive system | Leadshine servo motor and drivers |
| Power | 63A/ 100A / 120A / 160A / 200A |
| Cutting Torch Path | ≤200mm |
| 0.2mmPositioning Accuracy | 0.2mm |
| Working Voltage | 380V/50Hz |
| Dimensions | 3694*2290*1533mm |
| Package size | 3900*2270*2050mm |
Application
Cutting materials: carbon steel, stainless steel, aluminum, copper and other non-ferrous metals.
Widely used in machinery, automobile, shipbuilding, petrochemical, military, metallurgy, aerospace, boiler pressure vessel,locomotive and other industries.
