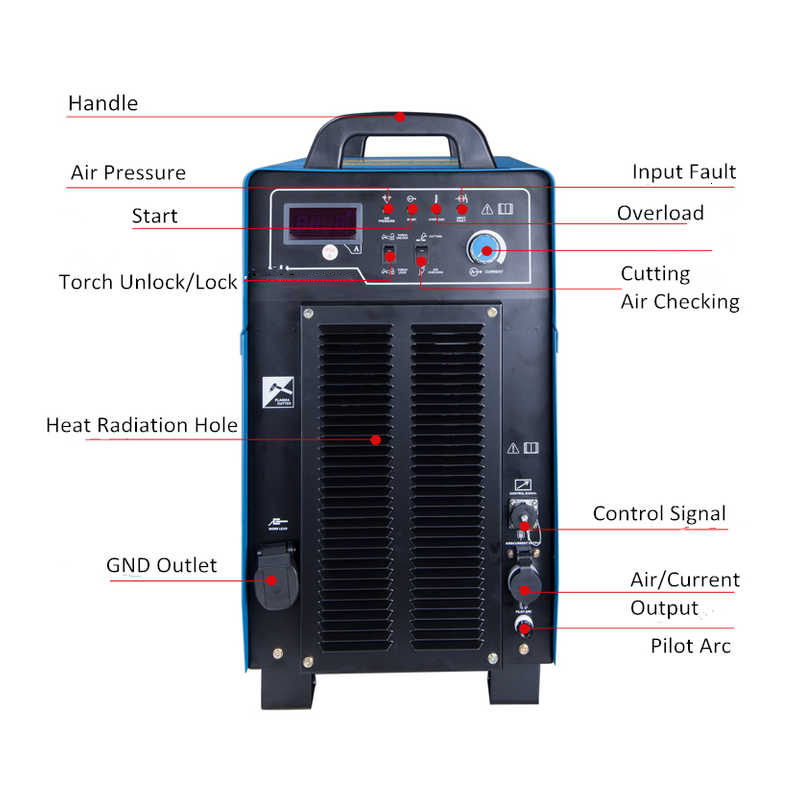

Popular Air Plasma Cutting Machine For Sale
100% (40° C) duty cycle, suitable for long time, heavy load, high temperature and bad circumstances
Current up-slope function: Reduce the impact on striking arc and decrease consumption of cutting torch parts
Air pressure, hydraulic pressure sensor: Protect torch from being burnt efficiently
Arc striking signal, arc pressure signal, air supply control and arc pressure output function , suitable for CNC and robot cutting
$1,290.00
Compare| Air Plasma Cutting Machine Main Feature | |
| 1 | 100% (40° C) duty cycle, suitable for long time, heavy load, high temperature and bad circumstances |
| 2 | Current up-slope function: Reduce the impact on striking arc and decrease consumption of cutting torch parts |
| 3 | Air pressure, hydraulic pressure sensor: Protect torch from being burnt efficiently |
| 4 | Arc striking signal, arc pressure signal, air supply control and arc pressure output function , suitable for CNC and robot cutting |
| Model | Unit | TYPE63 | TYPE100 | TYPE120 | TYPE160 | TYPE200 | TYPE300 | TYPE400 |
| Input Power | V/Hz | 3~ 380V± 15% 50/60 Hz | ||||||
| Rated Input Capacity | KVA | 9.5 | 17.8 | 22.4 | 32.2 | 46.7 | 65.8 | 94.1 |
| Rated Input Current | A | 14.5 | 27 | 34 | 49 | 71 | 100 | 143 |
| Rated Open Circuit Voltage | V | 300 | 300 | 300 | 315 | 315 | 380 | 380 |
| Rated Cutting Current | A | 63 | 100 | 120 | 160 | 200 | 300 | 400 |
| Rated Cutting Voltage | V | 106 | 120 | 128 | 144 | 160 | 200 | 200 |
| Current Adj Range | A | 30-63 | 30-100 | 30-120 | 40-160 | 40-200 | 60-300 | 60-400 |
| Max Cut Thickness (Steel) | mm | 25 | 40 | 45 | 55 | 65 | 80 | 90 |
| Quality Cutting Thickness (Steel, Machine) | mm | 0.3-6 | 0.3-13 | 0.3-15 | 0.3-17 | 1-30 | 1-35 | 1-40 |
| Air Pressure | Mpa | 0.3~0.5 | 0.4-0.6 | 0.45-0.6 | ||||
| Output Signal of Arc Voltage | – | 1: 1 / 1: 20 1: 50 / 1: 100 Arc Voltage | 1: 1 / 1: 20 | |||||
| Cutting Torch Cooling Mode | – | Air Cooling | Air Cooling/ Water Cooling | |||||
| Rated Duty Cycle | % | 60/40° C | 100/40° C | |||||
| Insulation Grade | F | |||||||
| Protection Grade | IP21S | |||||||
| Dimensions (L* W*H) | mm | 585*280*485 | 695* 320*580 | 800*380*650 | 800*380*810 | 890*430*900 | 930*430*900 | |
| Power Source (N. W.) | kg | 26 | 45 | 46 | 65 | 82 | 124 | 144 |
