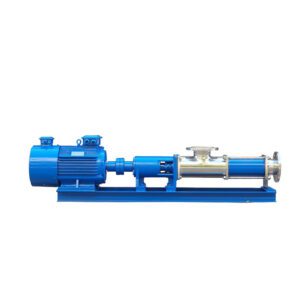

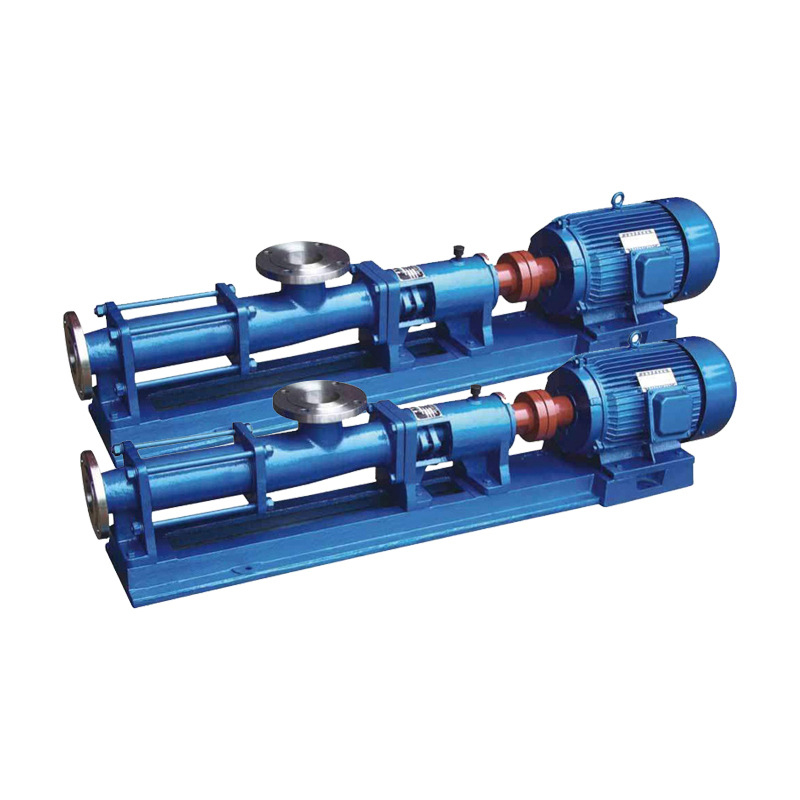

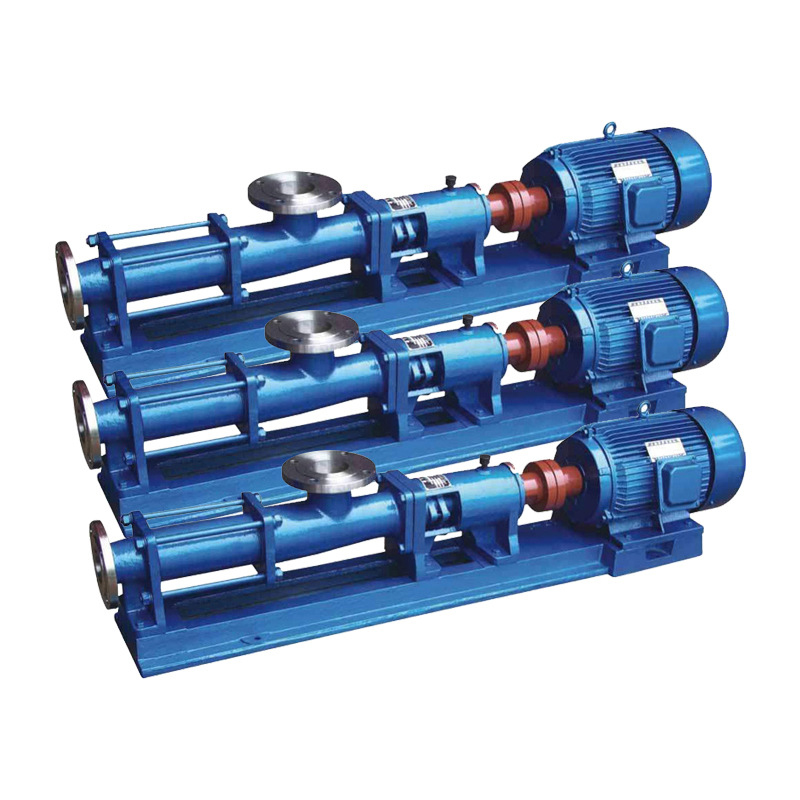

G type single Slush Heavy fuel oil transfer screw pump,Stainless steel non-blocking single screw pump,Blowdown single screw pump


G-type single-screw pump is a new type of pump that works on the principle of rotary meshing displacement. The main working parts of G-type single-screw pump are eccentric screw (rotor) and fixed bushing (stator). Due to the special geometric shape of the two parts , respectively forming a separate sealed cavity, the medium flows uniformly from the axial direction, the internal flow rate is low, the volume remains constant, and the pressure is stable, so there will be no eddy current and agitation. The output pressure of each pump is 0.6MPA, the head is 60M (clear water), and the self-priming height is generally 6M, which is suitable for the temperature of the conveying medium below 80°C (special requirements can reach 150°C).

$850.00

Compare

G type progressive cavity screw pump/Heavy fuel oil transfer pump belongs to the rotor type positive displacement pump, it is depend on the screw meshing with liner on the discharge and suction cavity to conveying liquid volume change.It is a kind of method of pressurized screw pump, a main working parts by bushing has a double helix cavity (stator) and the stator cavity and its meshing single-head screw screw (rotor).When the input shaft through the universal joint drive making planets revolving around the center of the stator, rotor stator, rotor, vice is continuous mesh form sealed cavity, the seal chamber volume invariably uniform axial movement, the medium from the suction end of deputy to the stator, rotor pressure side, the suction medium sealed cavity through the stator without stirring and destruction.



Application scope

1 Petro-industry
2 Chemical  industry and Pharmacy
3 Environment industry
4 Mineral products engineering industry
5 Food industry
6 Papermaking industry
