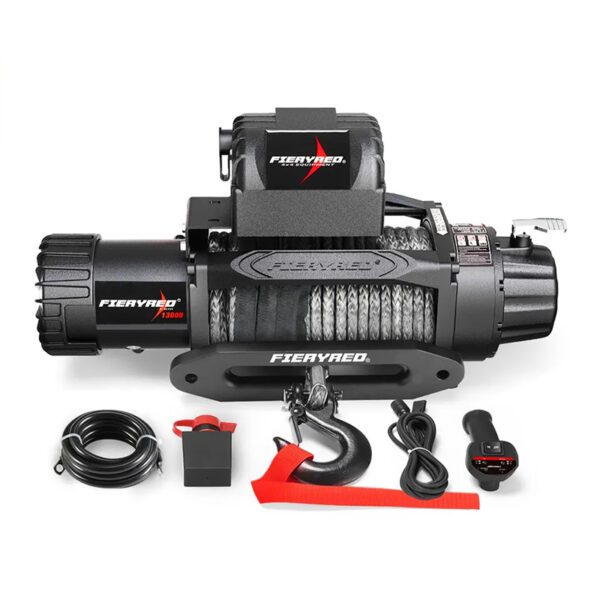

Specification of the FIERYRED Electric Winch
Single line rated pull | 13000LBS (5909KGS) |
Controls | Wired & wireless control |
Gear Train | 3-Stage Planetary |
Permanent Magnet | 6.0HP /4.5KW series Wound |
Gear Rotation | 265:1 |
Brake | Automatic load-holding brake |
Waterproof | IP67 |
Synthetic Rope | 9.5mm x 26m |
Remote Control | Included |
Fairlead | Aluminium Alloy Hawse Fairlead |
Remote Control Battery Type | Lithium Battery |
Recommended Battery | 650CCA Minimum For Winching |
Winch Dimensions | 650mm×390mm×290mm |
Weight | 26.5KG |
Features of the FIERYRED Electric Winch
- Massive Pulling Power: A 6.0 HP series wound motor delivers massive pulling capacity of 13,000lbs to recover your stuck 4×4,and SUV etc.

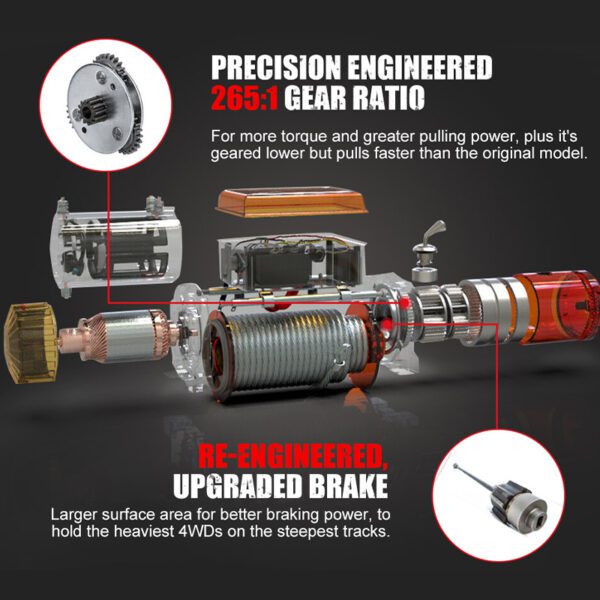

- Faster & Stronger: Geared lower with a ratio of 265:1 and equipped with a 3 stage planetary gear system, this winch is designed for stronger and faster winching.
- Multifunctional Remote Control: The controller that integrates both wired and wireless control (up to 30m) is 100% plug & play with a built-in LED light.
- Superior Durability: Made of heavy-duty steel with powder coating, this electric winch is rust and corrosion resistant and ideal for complex situations.

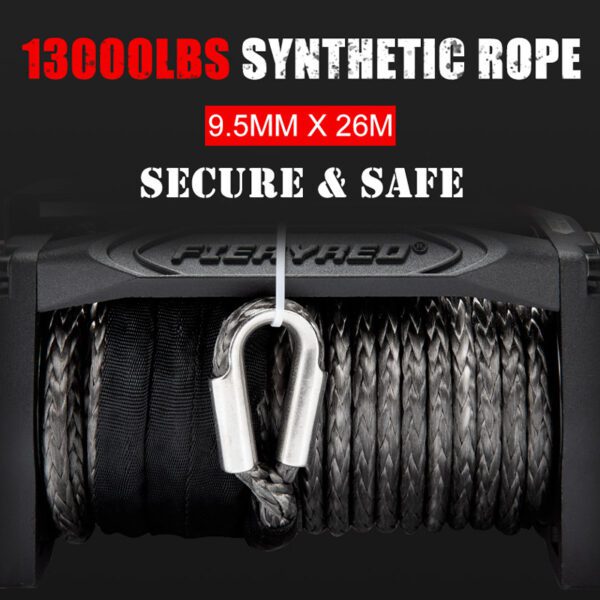

- Upgraded Rope: The synthetic rope (9.5mm*26m) boasts an amazing breaking strength of 23,809lbs that won’t fray or broke.
- Waterproof Construction: Sealed to IP-67 rating, all sensitive parts, including motor and solenoid, are fully sealed to prevent water damage.
- Powerful Braking: The brake has been upgraded and does an excellent job of keeping a solid grip of the rope, and allows you manually spool the synthetic rope.
- Copper Core Terminal: This design can effective keep oxidation, corrosion and rust at bay, and features superior conductivity.
- Strengthened Drum: Steel reinforced drum of the trailer winch allows you to upgrade to an optional steel cable.
- Menacing Exterior: This electric winch by Fieryred is matte black textured, giving it a true menacing and blackout look.
- Note: Avoid angle pull.The winch line should not exceed a 15° up and down for horizontal,or a 45° angle left or right from straight ahead.
