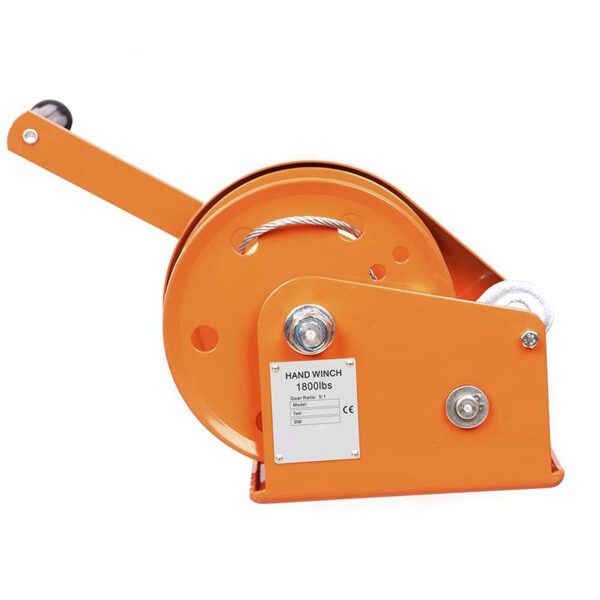

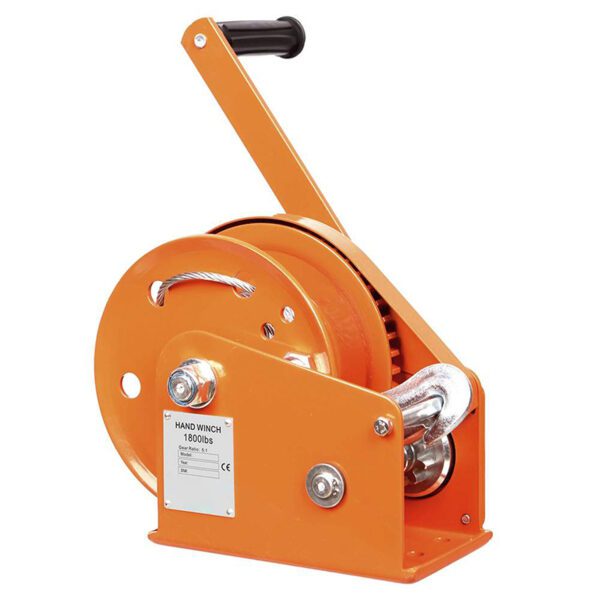

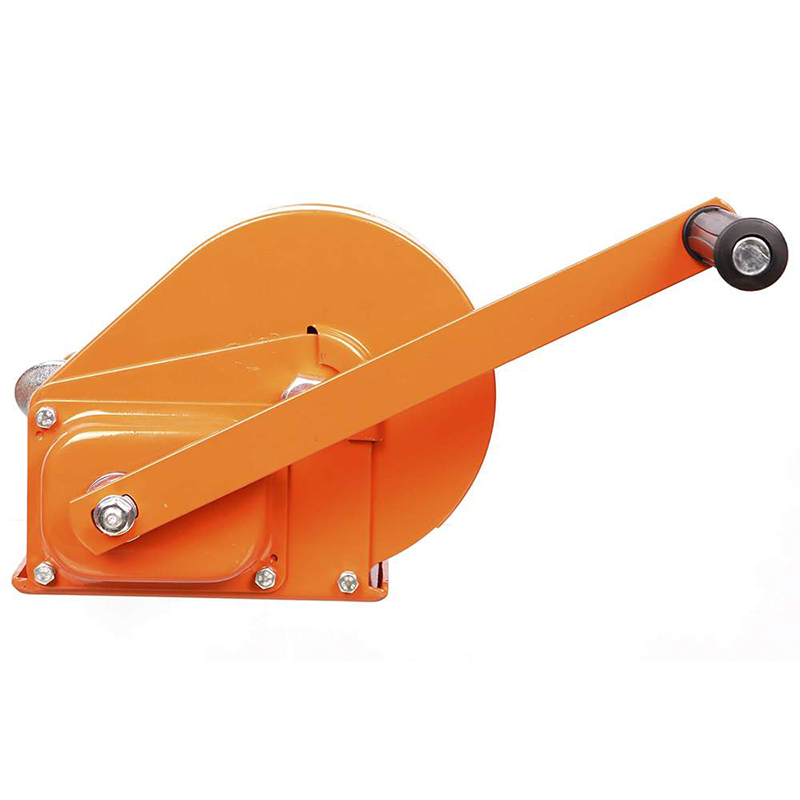

Hand Crank Gear Winch 1800 lbs 20ft heavy duty ATV Boat Trailer Auto RV Two-way Manual Winch
NOTE: Prices may vary by product model and material.
- 20ft heavy duty cable
- 1,800 lbs pulling capacity
- Portable, easy to mount and move
- Single-speed crank with 5:1 gear ratio
- Fits ATV Boat Trailer Auto RV
$66.00
CompareProduct Model of the Hand Crank Gear Winch
| Product Model | 1200LB | 1800LB | 2600LB | |
| Rated load/lb | 1200 | 1800 | 2600 | |
| Lateral traction/KG | 500 | 800 | 1100 | |
| Longitudinal tension/KG | 150 | 300 | 500 | |
| Speed ratio | 4:1 | 4:1 | 8:1 | |
| Hand force/N | 180 | 190 | 190 | |
| Wire rope diameter/mm | 4 | 5 | 6 | |
| Wire rope length/m | 5-30 | 5-40 | 5-40 | |
| Main size/mm | A | Φ48 | Φ60 | Φ75 |
| B | Φ134 | Φ180 | Φ180 | |
| C | 51 | 60 | 63 | |
| D | 157 | 190 | 209 | |
| E | Φ27 | Φ27 | Φ27 | |
| F | 273 | 288 | 307 | |
| G | 110 | 110 | 110 | |
| H | 156 | 203 | 216 | |
| J | 136 | 195 | 240 | |
| R | 250 | 280 | 280 | |
| Weight/KG | 3.8 | 8 | 10.2 | |
Features
- Size: The product is small, light, and easy to use.
- Braking: The product is fitted with friction brakes. The brake system automatically engages when the load on the lifting medium is greater than 30kg for capacities up to 1000kg, and greater than 3% of the rated load above 1000kgs
- Operating Crank: The crank is detachable and convenient to operate.
- Transmission parts: Made of forged blanks, an anti-rust process on the surface and professionally heat treated.
