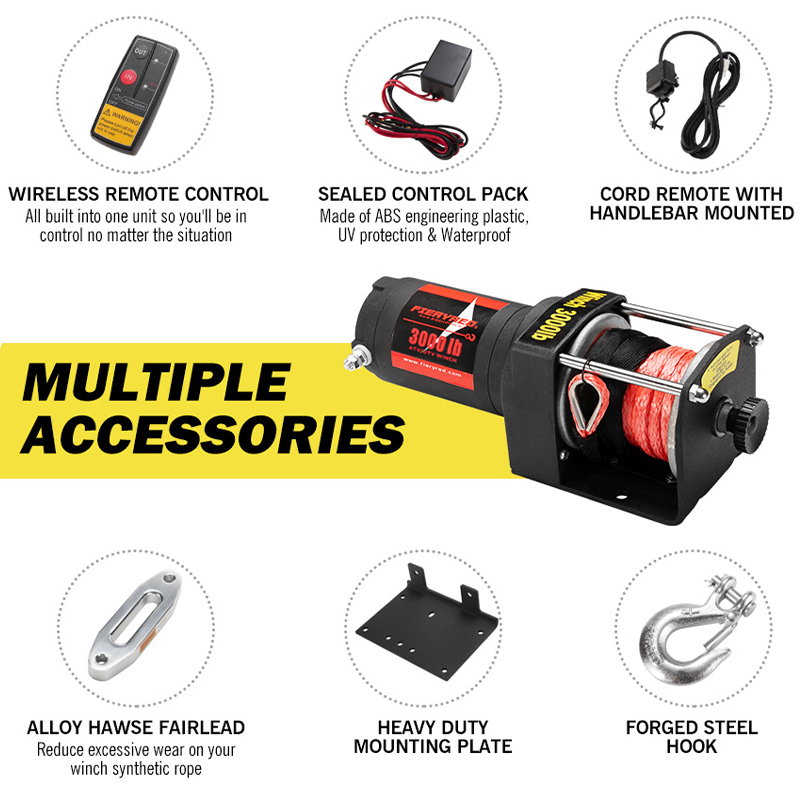

FIERYRED 12V 3000lbs Electric Winch Wireless ATV Boat Electric Winches with Synthetic Rope 1.3HP Motor

  • Rated Line Pull: 3000LBS(1361kg) single line
  • Motor: 1.3HP Permanent Magnet
  • Gear Reduction Ratio: 153:1
  • Cable: Dia.4.8mm x Length (12.2m)
  • Overall Dimension(L×W×H): 310mm×105mm×106mm
  • Weight: 8kg
  • Package Size: 340mm×290mm×158mm



Specification of the FIERYRED 12V 3000lbs Electric Winch

Rated Line Pull 3000LBS(1361kg) single line
Motor 1.3HP Permanent Magnet
Gear Reduction Ratio 153:1
Gear Train 3-Stage planetary
Cable Dia.4.8mm x Length (12.2m)
Control Remote Switch
Clutch Sliding Ring Gear
Breaking Action Automatic In-the-Durm
Overall Dimension(L×W×H) 310mm×105mm×106mm
Weight 8kg
Package Size 340mm×290mm×158mm

Item Description

  • Designed for all purpose winching, particular for ATV, UTV, boat trailer and jeeps. It is not only more efficient, but quieter as well.
  • Powerful sealed 1.3 HP motor and a full metal 3-stage planetary gear train that makes line speed faster under load.
  • Equipped with a gear reduction ratio of 153:1 and a Three-stage planetary gear train, a guarantee for stronger pulling capacity.

  • Designed for solid performance against corrosion and moisture, a great bonus for those living in rainy and stormy areas.
  • Noted: Pls. connect two long wires to power supply,and connect two short wires to motor!
  • This winch is designed only for pulling along a horizontal surface not for lifting a load under any circumstances.
  • Do not operate the winch at an angle of more than 15°, because angles greater than this will deform or damage parts of the winch.
  • When winching, you should stop pull the wire rope when red colored warning appears.
  • When hoisting, the winching capacity is only 1/5 compared with pulling along a horizontal surface.
  • Always ensure the clutch is fully engaged or disengaged. Failure to do so will significantly reduce winching capacity.
  • It is highly recommended to use batteries of more than 80A. Failure to do so will also reduce the winching capacity.
