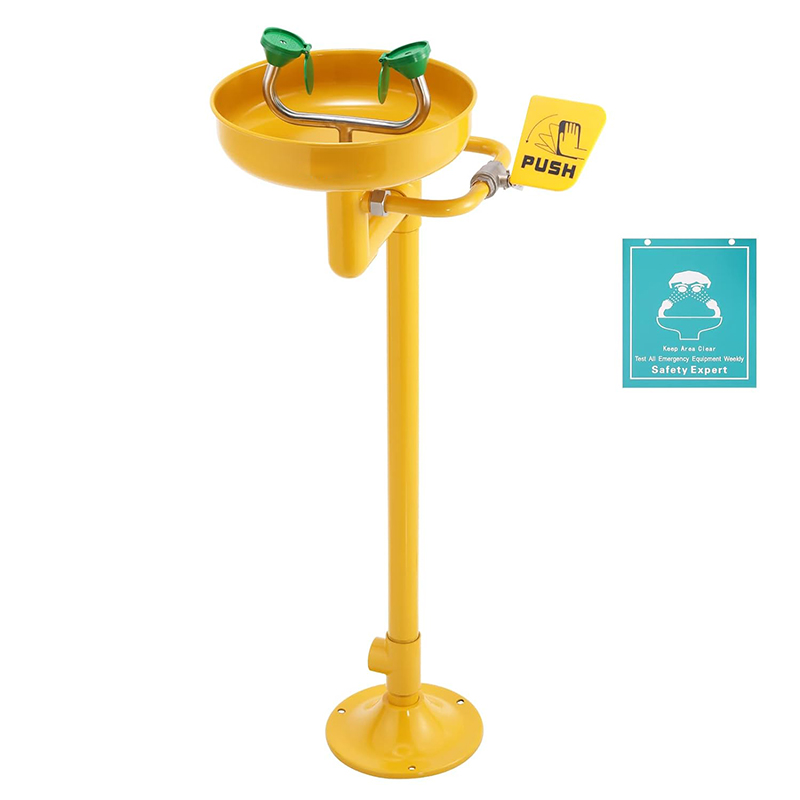

Technical Parameters of the Emergency Eye Wash Station

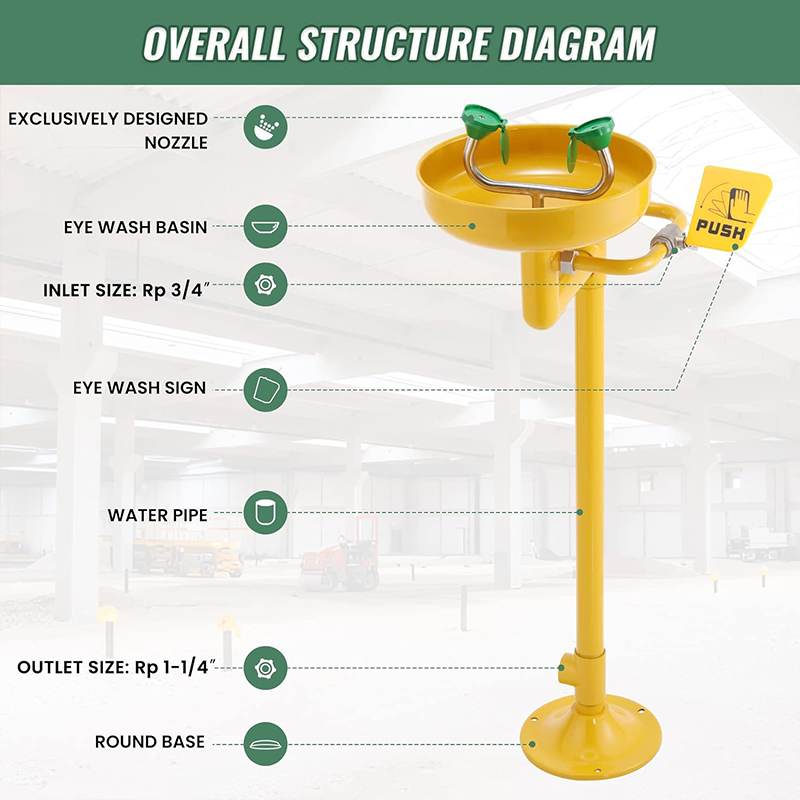

Inlet Size | Rp 3/4″ |
Outlet Size | Rp 1-1/4″ |
Eye/face wash flow rate | ≥12 L/MIN |
Nominal pressure | 1.0 Mpa |
Working pressure | 0.2~0.4 Mpa |
Eye Wash Basin Diameter | 300mm(11.81″) |
Pipe diameter | 42mm(1.65″) |

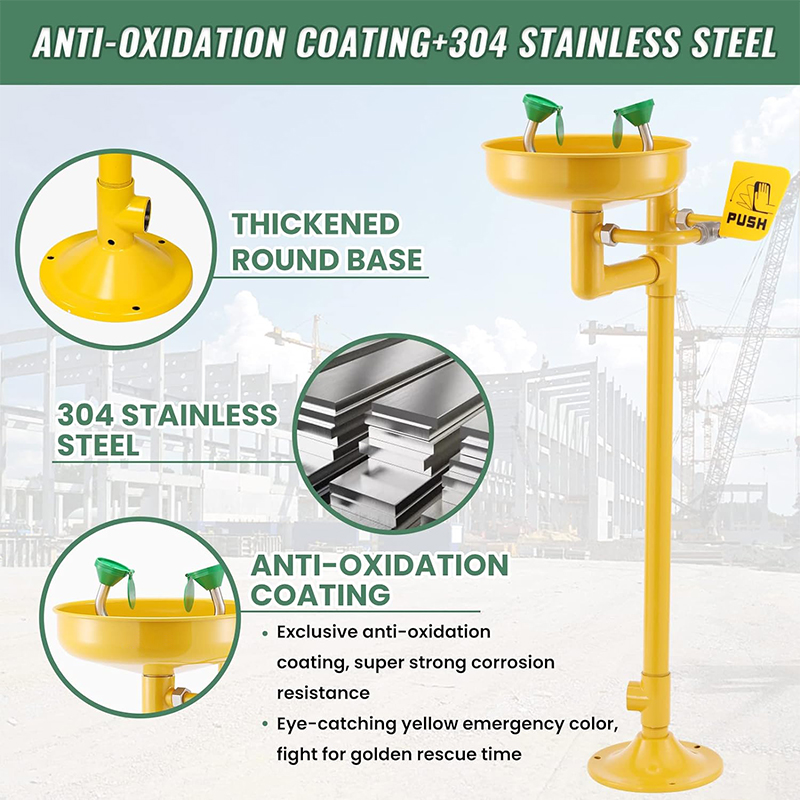

Material | The whole is made of heavy duty 304 stainless steel +high brightness yellow anti-oxidation coating. |

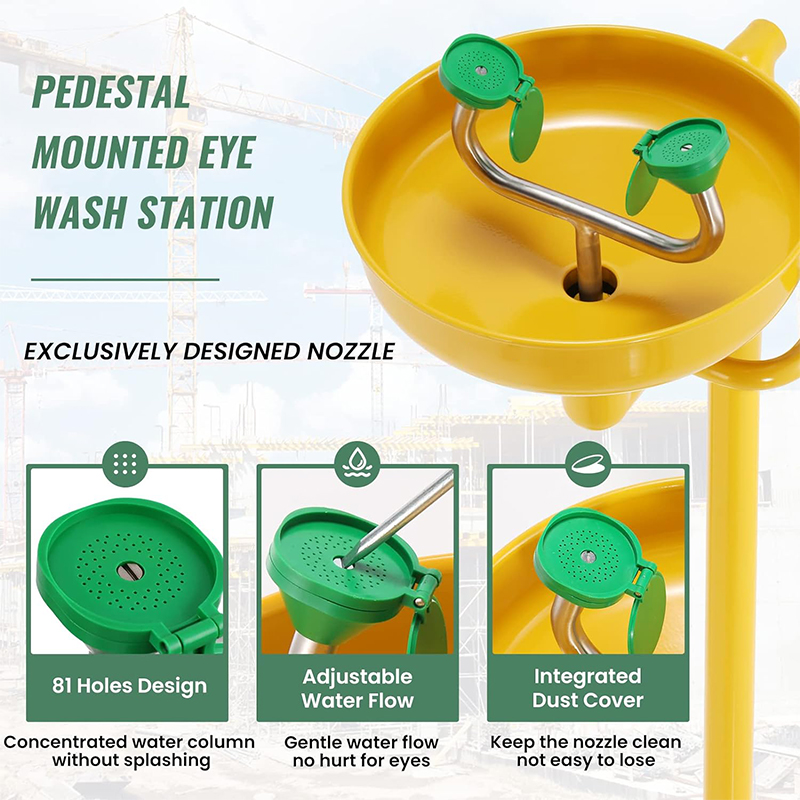

Exclusive Designed Nozzle
81 holes design, gathered water column, no splash
Dual spray heads, adjustable flow rate
Built-in sponge, gentle water flow, no hurt for eyes
Convenient Operation

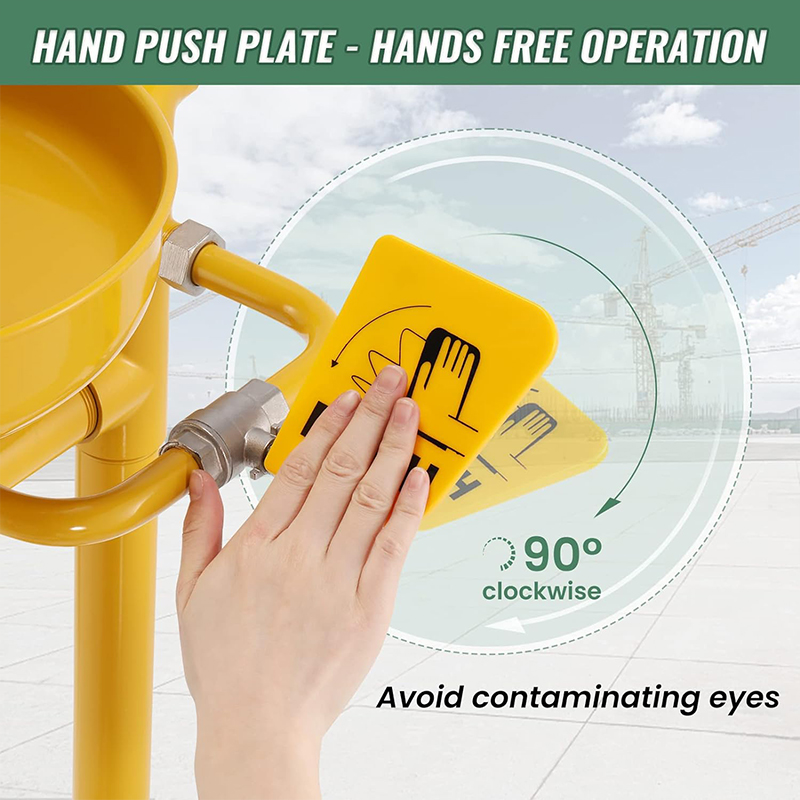

One push to open
Hands-Free Operation
Dust cover automatically opens when water comes
Large Diameter Basin
Durable,sturdy,not easy rusty
Anti corrosion,acid and alkali resistance
polished surface, easy to clean
Larger diameter, better water collection
