TECHNICAL PARAMETERS OF THE Emergency Eye Wash Station

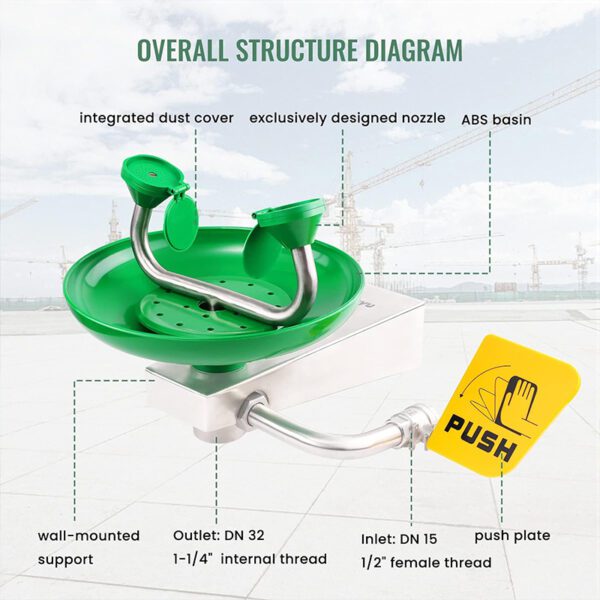

Inlet Size | 1/2″ female thread(DN15); |
Outlet Size | 1-1/4″ internal thread(DN 32); |
Eye wash flow rate | ≥12 L/MIN; |
Duration time | >15min; |
Nominal pressure | 1.0 Mpa; |
Working pressure | 0.2~0.4 Mpa; |
Diameter of eye wash basin | Diameter of eye wash basin: 250mm(9.84″). |
Application Scenes | Applicable for narrow spaces, easy and quick to install. |
Features
- Each exclusive designed nozzle has 81 outlet holes. Water column is gathered, no splash. Cleaning efficiency is increased by 50%.

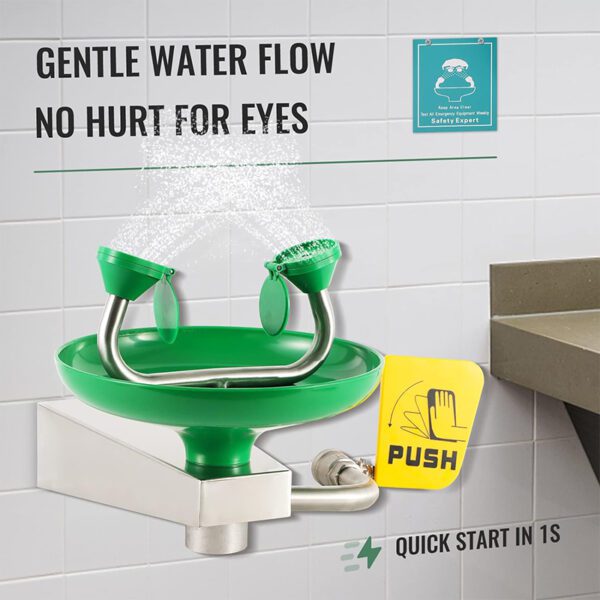

- Built-in decompression sponge effectively reduces water pressure. Gentle water flow will not hurt the eyes.

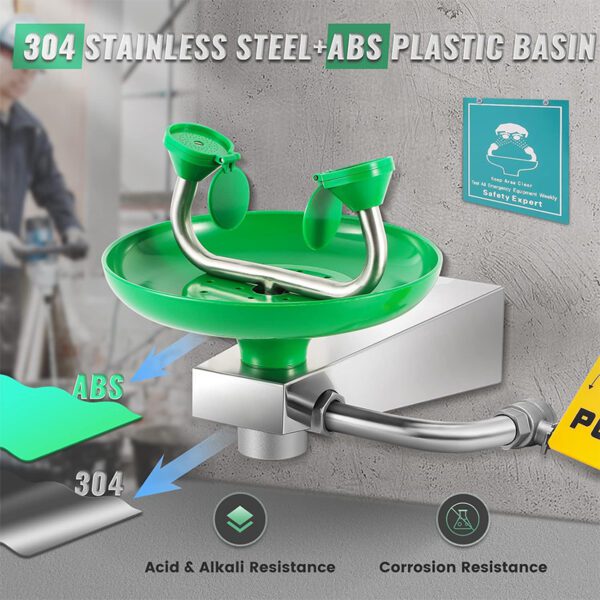

- Thickened ABS plastic basin with stable chemical properties. Anti-corrosion, suitable for acid & alkali environment.
- Easy to clean, hazardous substances will not stay on it.

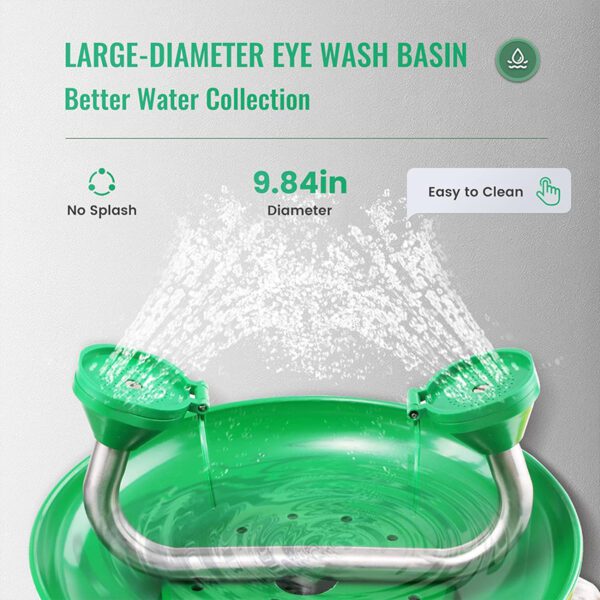

- 250mm diameter larger basin can better collect water & keep ground clean.
- 1 push to open.No need to press it all the time.
- Hands-Free Operation can prevent hands from polluting eyes again, resulting in secondary eye injury.
- Integrated dust cover is not easy to lose. It will automatically open when water comes. The dust cover can keep the nozzle clean & prevent blockage.
- Eye-catching eye wash sign for people to find the location of eye wash station quickly.
- Applicable for petrochemical plant, vehicle manufacturer, hospital, research laboratory, school, environmental purification plant, gas station, fire station and anywhere emergency eye wash equipment is required.
