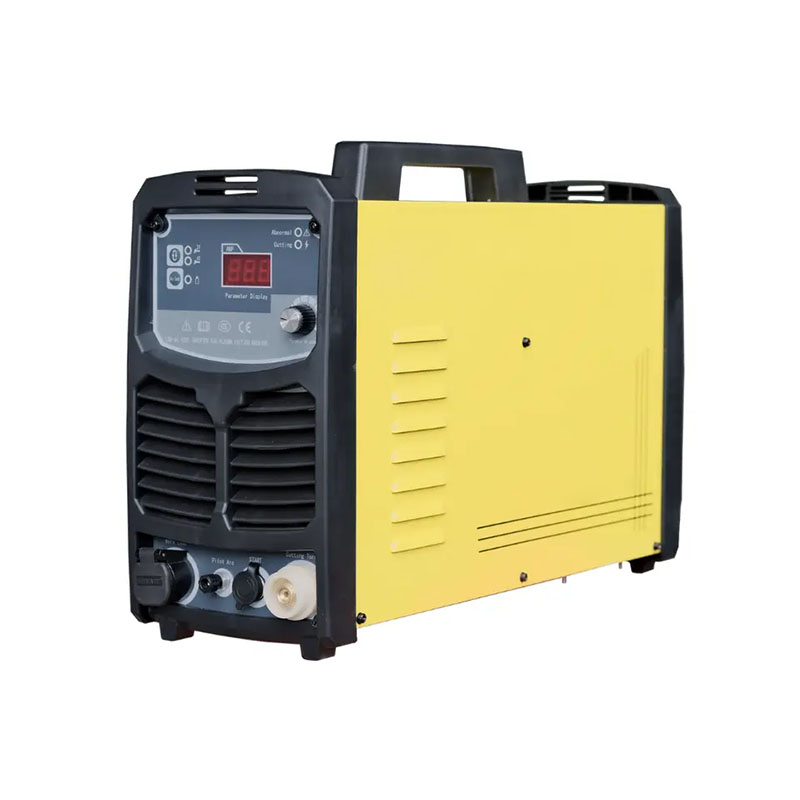

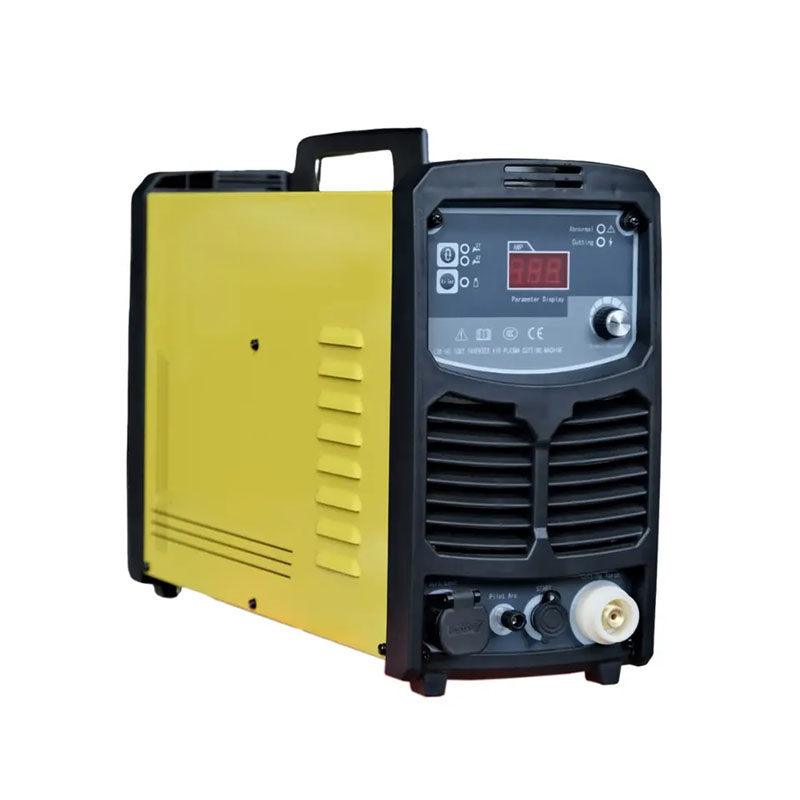

CUT-60 inverter type plasma cutting machine, Is a new design of metal processing equipment. The IGBT module for the whole machine. 100% Duty Cycle, suitable for cutting in all heavy industry fields, industrial grade.
The cutting machine can cut all metal materials, especially suitable for “flame cutting” can not achieve high alloy steel and non-ferrous metals. The series of cutting machines have reasonable static and external characteristics, and also have good dynamic characteristics, With high frequency arc starting function . The Soft-switching inverter technology, can improve reliability and reduce failure rate.
Widely used in all kinds of machinery manufacturing industry.
Plasma cutting machine Main Features:
Slow rise technology is applied from the arc ignition current to the cutting current.
Protect the cutting torch and reduce the consumption of consumables.
Initiating arc gas and cutting gas dual-in control.
Improve the success rate of arc ignition
Soft-switching inverter technology, improve reliability and reduce failure rate.
Cutting speed (3-5 times of gas cutting)
Cutting costs are low
Incision stenosis. Clean and tidy; close to vertical
Small deformation of workpiece
The cutting current is adjustable continuously
Easy arc setting
The operation is very convenient
Light weight, small size, easy to move
High efficiency, high power factor, it is a kind of energy saving equipment
Low noise and strong adaptability
Reduce the labor intensity of workers
Model | CUT-60 |
Power supply specifications | 380V/220V |
Frequency | 50Hz-60Hz |
Input power | 11KVA |
Rated output current | 60A |
Rated output voltage | 105.2V |
Rated load duration | 100% |
No-load voltage | 308VDC |
Current regulation range | 30~60A |
Cross-sectional area(mm) | ≥6square |
Fuse (A) | 60 |
Switching capacity | 60 |
Plasma gases are used | pressurized air |
Gas pressure | 0.4~0.6MPa |
Arc insertion mode | high frequency |
Insulation class | F level |
Enclosure protection class | IP21S |
Net weight | 20kg |
Package weight | 23kg(carton) |
Dimensions L*W*H (mm) | 510*170*310 |
Packing size L*W*H (mm) | 580*240*465 |
Easy Opration & Friendly To Use
The control system of Cut-60 makes the operation easier and user-friendly, with one button, you can start plasma cutting immediately.
And it can adjust the cutting strength.
