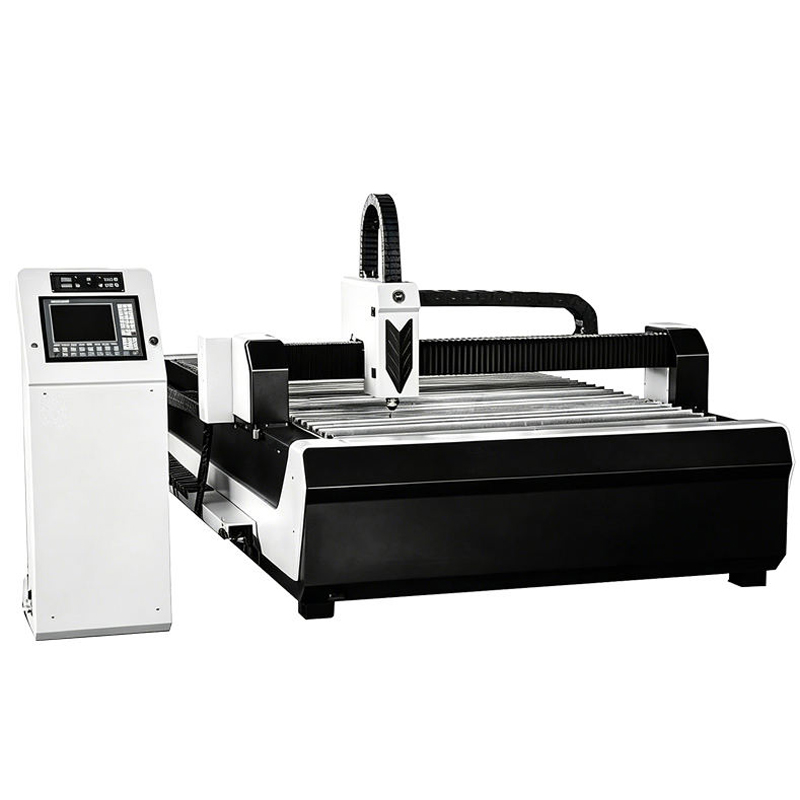

Desktop CNC Plasma System for Precision Metal Fabrication

Desktop CNC Plasma System Product Introduction

The Desktop CNC Plasma System for Precision Metal Fabrication is a compact intelligent thermal cutting solution specially developed for precision sheet metal workshops, small-scale fabrication factories, engineering studios, customized metal processing facilities, industrial prototype production centers, and modern manufacturing workshops requiring accurate contour cutting with limited floor space. The equipment combines compact machine architecture, intelligent CNC motion control technology, precision plasma processing systems, and stable servo transmission mechanisms to deliver reliable fabrication performance for modern metal manufacturing environments.

This desktop plasma fabrication system is widely used for carbon steel contour processing, stainless steel panel cutting, customized bracket production, industrial signage fabrication, machinery component manufacturing, decorative metal processing, engineering sample production, equipment panel fabrication, ventilation component manufacturing, and detailed contour cutting applications. The machine supports automatic contour cutting, slot processing, circular hole fabrication, edge shaping, engraving-style contour cutting, and intelligent nesting operations while improving processing accuracy and reducing raw material waste.

The equipment adopts a reinforced compact welded frame combined with high-precision linear guide rail systems, automatic torch height adjustment technology, intelligent contour programming software, and industrial-grade CNC automation functions to maintain stable contour quality during continuous production operations. Compact structural design allows efficient installation inside small fabrication workshops while maintaining industrial-level contour precision and manufacturing stability.

Common Challenges in Small Metal Fabrication Workshops

• Limited workshop space restricts installation of large industrial cutting equipment

• Manual contour cutting reduces processing consistency and production efficiency

• Poor contour precision affects downstream assembly and welding operations

• Traditional thermal processing methods increase material waste

• Small fabrication workshops require flexible customized contour programming

• Compact manufacturing facilities require stable automated fabrication systems

• Unoptimized contour layouts increase raw material consumption

• Complex contour processing requires intelligent CNC automation support

• Small engineering workshops need high precision processing capability

• Traditional fabrication systems require excessive manual operation

Intelligent Desktop Plasma Fabrication Technology

• Compact CNC contour systems improve dimensional consistency in limited workspaces

• Intelligent contour programming improves processing flexibility for customized fabrication

• Automatic plasma parameter optimization improves contour smoothness and edge quality

• Precision servo transmission systems improve motion stability during detailed contour processing

• Intelligent torch height adjustment improves contour consistency on uneven surfaces

• High-speed contour processing improves fabrication workshop productivity

• Smart nesting software improves sheet metal utilization efficiency

• Stable plasma arc systems improve cutting reliability and contour repeatability

• Compact fabrication architecture improves workshop space utilization

• Automated processing workflows reduce labor intensity and manual fabrication requirements

Equipment Configuration

The Desktop CNC Plasma System for Precision Metal Fabrication mainly includes:

• Compact plasma cutting platform

• Intelligent CNC control system

• Industrial plasma power supply

• Precision servo motor drive system

• Automatic torch height controller

• Industrial touch screen operating interface

• Heavy-duty compact welded machine frame

• Rack and pinion transmission structure

• Precision linear guide rail motion system

• Smart CAD/CAM contour programming software

• Industrial electrical control cabinet

• Cable drag chain management system

• Automatic lubrication mechanism

Optional configurations available:

• Rotary tube cutting attachment

• Water table cutting structure

• Smoke extraction filtration system

• Dual plasma torch configuration

• Flame cutting integration system

• Industrial air compressor support

• Bevel contour processing module

• Customized table size configuration

Precision Metal Fabrication Workflow

Material Positioning

Carbon steel sheets, stainless steel plates, aluminum panels, and customized metal materials are placed onto the compact fabrication platform according to production requirements.

Intelligent Contour Import

Engineering drawings and contour files are imported into the CNC system for automatic contour generation and intelligent nesting optimization.

Automatic Plasma Parameter Adjustment

The intelligent CNC controller automatically adjusts cutting speed, plasma current, arc voltage, and torch height according to material thickness and contour complexity.

High Precision Plasma Contour Processing

The desktop plasma system performs contour cutting, slot fabrication, circular hole processing, edge trimming, decorative shaping, and detailed engineering contour manufacturing through intelligent CNC automation technology.

Finished Component Production

Processed metal components are manufactured with smooth contour quality, stable dimensional consistency, optimized edge precision, and reliable fabrication performance suitable for downstream assembly, welding, polishing, coating, and engineering manufacturing operations.

Core Advantages For Compact Fabrication Workshops

• Compact machine structure improves workshop space utilization efficiency

• Intelligent CNC automation improves contour precision and manufacturing consistency

• Smart nesting optimization reduces sheet metal waste and production costs

• Precision servo systems improve detailed contour positioning stability

• Automatic torch height systems improve contour smoothness across uneven surfaces

• Stable plasma arc systems improve edge consistency and contour quality

• Flexible contour programming supports customized fabrication projects

• Compact fabrication architecture simplifies equipment installation and workshop integration

• Automated workflows reduce manual intervention and labor intensity

• Intelligent processing systems improve operational flexibility for small manufacturing environments

Technical Specifications

Item	Specification
Product Name	Desktop CNC Plasma System for Precision Metal Fabrication
Working Area (W × L)	1500×3000mm / 1500×6000mm
Machine Dimensions (L × W × H)	3600×2240×1075mm
CNC Control System	Intelligent Industrial CNC Controller
Plasma Cutting Technology	CNC Plasma Thermal Cutting
Plasma Power Supply	45A / 63A / 100A / 120A / 160A / 200A Optional
Plasma Cutting Thickness	Subject To Plasma Power Supply Configuration
Recommended Carbon Steel Thickness	1–35mm
Recommended Stainless Steel Thickness	1–20mm
Recommended Aluminum Thickness	1–16mm
Idle Travel Speed	0–15000mm/min
Recommended Cutting Speed	500–12000mm/min
Positioning Accuracy	±0.5mm
Repeat Position Accuracy	±0.02mm
Plasma Torch Lifting Distance	≤100mm
Drive System	Precision Servo Motor / Stepper Motor Optional
Motion Transmission	Rack And Pinion Transmission
Guide Rail Structure	Precision Linear Guide Rail
Machine Structure	Heavy-Duty Welded Steel Frame
Table Structure	Blade Cutting Table
Optional Table Type	Water Table Optional
Arc Voltage Height Control	Automatic THC System
Torch Cooling Method	Air Cooling
Supported File Formats	DXF / DWG / NC
Nesting Software	Intelligent CAD/CAM Nesting System
Lubrication System	Automatic Central Lubrication
Operating Interface	Industrial Touch Screen
Voltage	220V / 380V / 415V
Frequency	50Hz / 60Hz
Installed Power	6KW – 25KW
Smoke Extraction Interface	Available
Processing Mode	Fully Automatic CNC
Customization	Custom Acceptable
Optional Functions	Tube Cutting / Bevel Cutting / Flame Cutting
Industrial Applications	Precision Metal Fabrication / Sheet Metal Processing / Engineering Manufacturing

Main Features

• Compact desktop fabrication architecture

• Intelligent CNC contour processing technology

• Precision plasma thermal cutting capability

• Automatic contour parameter optimization

• Precision servo motion control system

• Intelligent CAD/CAM nesting integration

• Stable industrial plasma arc technology

• Flexible customized contour programming

• High-speed contour processing workflow

• Multi-material fabrication compatibility

Engineering Advantages

• Precision servo systems improve contour repeatability and processing consistency

• Intelligent torch height systems improve contour quality across uneven sheet surfaces

• Compact machine structures reduce workshop space requirements

• Smart nesting optimization improves raw material utilization efficiency

• Stable plasma arc systems improve edge smoothness and contour precision

• Automated contour workflows improve manufacturing productivity

• Flexible contour programming supports customized engineering projects

• Industrial CNC systems improve operational reliability and fabrication stability

• Optimized thermal processing improves downstream polishing and welding preparation

• Intelligent fabrication systems reduce manual operation intensity and production costs

Application Scenarios

• Small sheet metal workshops

• Customized fabrication studios

• Precision engineering workshops

• Industrial prototype manufacturing facilities

• Decorative metal processing companies

• Machinery component fabrication workshops

• Ventilation component manufacturing facilities

• Industrial signage production workshops

• Stainless steel processing studios

• Educational and technical training centers

Industry Applications

• Precision metal fabrication industry

• Sheet metal processing industry

• Engineering manufacturing industry

• Industrial prototype production industry

• Decorative metal fabrication industry

• Mechanical engineering industry

• Industrial automation industry

• Customized manufacturing industry

• Equipment component processing industry

• Industrial workshop fabrication industry

Frequently Asked Questions

1. Why is a desktop plasma fabrication system suitable for compact workshops?

Compact desktop structures reduce installation space requirements while maintaining industrial-level contour precision and fabrication performance.

2. What materials can this desktop plasma system process?

The system supports carbon steel, stainless steel, galvanized steel, aluminum plates, and various industrial metal materials.

3. What advantages does intelligent CNC contour processing provide?

Intelligent CNC processing improves contour precision, production consistency, workflow automation, and manufacturing efficiency.

4. Why is automatic torch height adjustment important?

Automatic torch height systems maintain stable cutting distance and improve contour quality across uneven metal surfaces.

5. Can the system support customized contour fabrication?

Yes. The CNC controller supports customized contour programming using CAD engineering drawings and intelligent contour software.

6. Is the equipment suitable for continuous workshop operation?

Yes. The system is designed for stable automated fabrication and continuous industrial workshop production environments.

7. What fabrication operations can the machine perform?

The equipment supports contour cutting, slot processing, circular hole fabrication, edge trimming, decorative shaping, and detailed engineering contour manufacturing.

8. How does intelligent nesting improve production efficiency?

Smart nesting optimization improves material utilization efficiency, reduces raw material waste, and lowers fabrication costs.

9. Which industries commonly use desktop plasma fabrication systems?

Industries including precision sheet metal fabrication, engineering manufacturing, customized metal processing, and industrial prototype production commonly use these systems.

10. Why do fabrication workshops choose compact CNC plasma systems?

Because compact plasma systems improve contour precision, save workshop space, increase automation efficiency, and support flexible manufacturing requirements.
