Cutting Machine Metallographic Automatic Specimen Precision High Efficiency
● Chamber illumination with LED
● Aluminum casting base, powder coated
● T-slot Table made of stainless and aluminum alloy
● Fast Cam Locking Vises, made of 304 stainless steel
● Left cover made of composites by integral molding
● Mobile plastic recirculation coolant tank
● Independent pump for cleaning the chamber
● Optional laser alignment aid
$17,900.00
Compare
Automatic Specimen Precision Cutting Machine
● Powerful motor to reduce cutting time and provide high productivity
● Smart feed. The machine can adjust the feed speed in real time with the load changes
● Cutting modes: Y-continuous, Y-pulse, Z-continuous, Z-pulse, slicing (different model, different cutting mode)
● Versatile industrial joystick with X, Y, Z axis. Easy to use

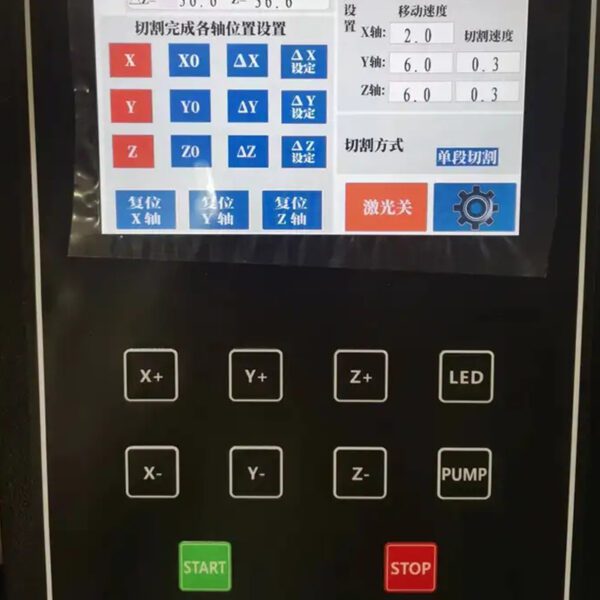

● 8 inch color touchscreen for simple operation and user friendliness
● Electrical brake for faster stopping of the blade
● Chamber illumination with LED
● Aluminum casting base, powder coated
● T-slot Table made of stainless and aluminum alloy
● Fast Cam Locking Vises, made of 304 stainless steel
● Left cover made of composites by integral molding
● Mobile plastic recirculation coolant tank
● Independent pump for cleaning the chamber
● Optional laser alignment aid
|
Blade(mm)
|
250*32*1.5
|
||
|
Blade speed (rpm)
|
500-3000
|
||
|
Table Dimensions (WxD,mm)
|
279*260
|
||
|
X Travel
|
60mm
|
||
|
Cooling
|
Automatic/manual
|
||
|
Main Motor
|
2.2KW
|
||
|
Power
|
Single-phase 220V/Three-phase 380V
|
||
