Laboratory Grinder Polisher Metallographic Specimen Grinding & Polishing Machine

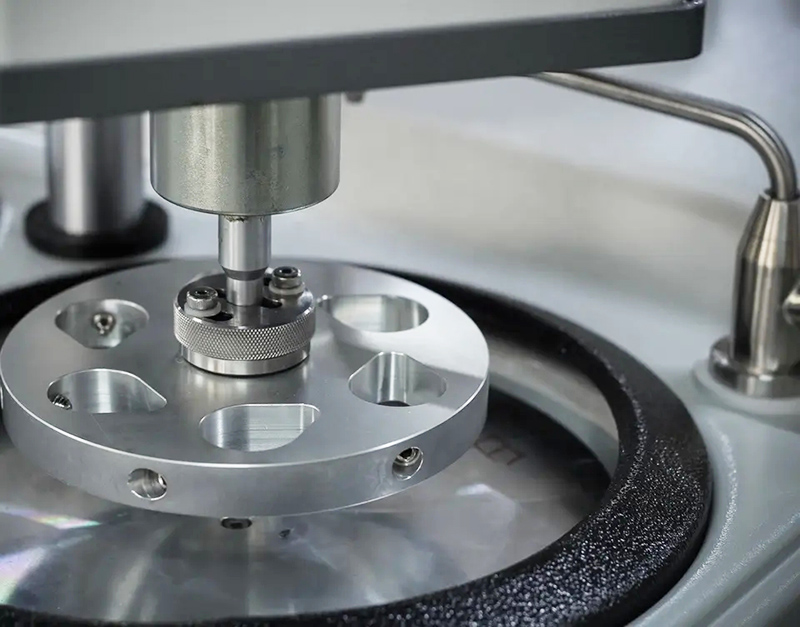

* Central force loading mode, fix six samples at one time, complete all grinding and polishing processes, and ensure the complete plane of each sample.
* Independently control the grinding and polishing disc and sample disc: control all grinding and polishing parameters such as rotating speed, grinding and polishing time, rotation direction, water valve closing, etc.
* Touch screen interface: it is convenient to set grinding and polishing parameters, intuitive status display and simple operation.
* The loading force can be adjusted in operation, flexible and convenient.
* The on-off of water is controlled by solenoid valve.
* By easily replacing the magnetic anti sticking disc, all processes such as rough and fine grinding, rough and fine polishing of various samples can be completed. One disc is equivalent to several discs.
* High precision, stable operation and low noise.
* Thickness control of sample grinding layer: accurately control the grinding amount of samples and grind them to the specified position (Optional).
* External dispenser control the dropping speed and dropping material (Optional)

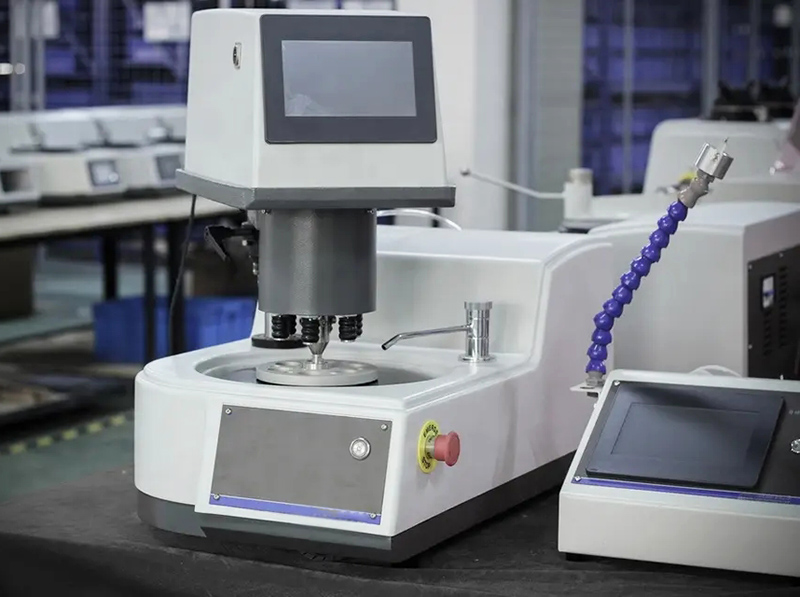

Laboratory Grinder Polisher  is a kind of single disc automatic metallographic specimen grinding and polishing machine equipped with automatic polishing head and stepless speed changing. It features advanced performance and high degree automation and can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing automatically. It is the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Technical specifications:
Working disc diameter: 254mm (with magnetic disc)
Grinding disc rotation speed: 100~1000 rpm (forward and reverse rotation can be switched)
Grinding head rotation speed: 0~100 rpm
Sample preparation time range: 0~9999s
Loading force range: 30~200N
Loading force mode: Central force loading
Sample holder: Ø 30mm, 6-hole (optional Ø 40~50mm, 4-hole, or customized)
Power Supply: AC 220V, 50Hz, single phase
Motor power: 750W
Overall dimension (L x W x H): 760 x 470 x 700mm
Weight: 80kg
