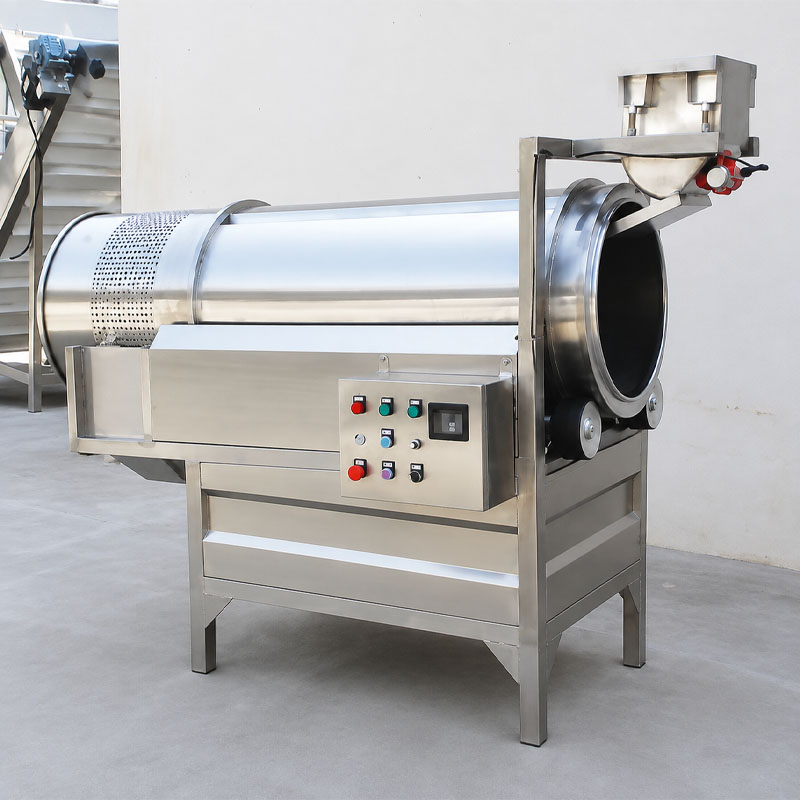

Continuous Drum Seasoning Machine for Puffed Snack Production

Product introduction of Continuous Drum Seasoning Machine

The continuous drum seasoning machine is an advanced solution for applying oil and seasoning materials to snack products in continuous production environments. The inclined rotating drum design allows products to move smoothly through the equipment while mixing blades and tumbling action ensure even flavor distribution.

The machine integrates automatic feeding, powder dispensing, and oil spraying functions to improve seasoning accuracy and reduce manual operation. Adjustable rotation speed allows manufacturers to control mixing intensity according to different product characteristics, helping maintain product integrity during processing.

Constructed with a hygienic stainless steel structure, the equipment offers reliable operation, easy cleaning, and long-term durability. It is widely used for puffed snacks, potato chips, cereal products, and other dry food applications. The continuous seasoning system can operate independently or connect with complete snack production lines to improve overall production efficiency.

Working Principle

The continuous drum seasoning machine operates through a rotating inclined drum that continuously moves products from the inlet to the outlet. During transportation, the products are gently tumbled inside the drum while oil and seasoning materials are evenly applied.

The powder feeding system controls the amount of seasoning added, while the internal mixing structure helps distribute flavors uniformly across the product surface. The adjustable drum speed allows operators to optimize residence time and mixing intensity for different snack types.

After completing the seasoning process, the finished products are discharged automatically and transferred to the next processing stage.

Working Process

1. Product Feeding

The processed snack products are transferred into the seasoning machine through the feeding system at a stable and continuous speed.

2. Drum Mixing

The products enter the inclined rotating drum, where the continuous tumbling movement ensures gentle mixing and prevents product damage.

3. Oil Spraying

The oil spraying system evenly applies oil onto the product surface to improve seasoning adhesion and enhance flavor performance.

4. Seasoning Distribution

The automatic powder feeding system adds seasoning materials while the rotating drum spreads flavors evenly across all product surfaces.

5. Continuous Coating

During the movement inside the drum, products are repeatedly mixed and coated to achieve consistent seasoning coverage.

6. Product Discharge

After completing the seasoning process, finished products are automatically discharged and transferred to the next processing stage, such as cooling, inspection, or packaging.

Product Parameter Table

Parameter	Specification
Machine Type	Continuous Drum Seasoning Machine
Production Capacity	500–1000 kg/h
Voltage	220/240/380/415V, customizable
Total Power	1.5 kW
Machine Dimension	2500 × 1200 × 1900 mm
Machine Weight	310 kg
Seasoning Method	Oil spraying and powder coating
Applicable Product	Puffed snack, potato chip, cereal snack

Main Features

Continuous Seasoning Operation

The inclined drum structure supports uninterrupted processing and improves production efficiency for large-volume snack manufacturing.

Uniform Flavor Distribution

The optimized mixing design ensures seasoning powder and oil are evenly applied to maintain consistent taste.

Gentle Product Handling

The smooth tumbling process reduces product damage while maintaining snack shape and texture.

Adjustable Processing Parameters

Speed and seasoning levels can be adjusted according to different product requirements.

Hygienic Stainless Steel Design

The stainless steel construction provides corrosion resistance and supports food safety standards.

Flexible Production Integration

The machine can work independently or connect with conveyors and complete snack processing systems.

Efficient Seasoning Control

Automatic powder feeding and oil spraying systems help reduce seasoning waste and improve coating accuracy.

Application Areas

1. Puffed Snack Production

Used for continuous seasoning of expanded snacks after extrusion and drying processes to improve flavor consistency.

2. Potato Chip Processing

Provides uniform oil and seasoning coating for chips with different flavors and surface textures.

3. Extruded Food Manufacturing

Suitable for seasoning various extruded snacks requiring stable flavor distribution after forming.

4. Cereal Snack Processing

Applied for coating breakfast cereals and grain-based snack products with different seasoning materials.

5. Tortilla Chip Production

Helps achieve even flavor coverage for crispy chip products during continuous processing.

6. Nut and Roasted Food Processing

Used for coating roasted nuts and similar products with spices, powders, or flavor ingredients.

7. Pet Food Processing

Can be used for applying coatings and flavor additives to certain dry pet food products.

8. Food Coating Applications

Suitable for various dry food products requiring continuous mixing and surface seasoning.

Equipment Advantages

• Continuous automatic seasoning process
• High uniformity of powder distribution
• Adjustable drum rotation speed
• Reduced product breakage during mixing
• Efficient oil and flavor coating
• Easy cleaning and maintenance
• Suitable for integration into production lines
• Stable performance for long-term operation

System Structure

Feeding Unit

Transfers products into the seasoning drum at a stable rate.

Rotating Drum

Provides continuous tumbling and mixing to achieve uniform coating.

Seasoning Dispensing System

Controls powder distribution for accurate flavor application.

Oil Spraying System

Applies oil evenly to improve seasoning adhesion.

Drive System

Provides stable drum rotation for continuous operation.

Control System

Manages equipment operation and allows adjustment of processing parameters.

Why Choose This Equipment

The continuous drum seasoning machine provides an efficient and reliable solution for manufacturers looking to improve snack flavor consistency. Its automatic coating system, adjustable operation, and hygienic structure help reduce labor requirements while maintaining stable product quality. It is an ideal choice for snack factories requiring continuous seasoning performance and flexible production capabilities.

FAQ

1. What products can be processed by the continuous drum seasoning machine?

The machine is suitable for various dry snack products, including puffed snacks, potato chips, cereal snacks, extruded foods, roasted nuts, and other products requiring flavor coating.

2. How does the seasoning machine achieve uniform flavor distribution?

The rotating drum continuously tumbles products while the powder feeding and oil spraying systems apply seasoning evenly, ensuring consistent flavor coverage.

3. Can the seasoning amount be adjusted?

Yes. The powder feeding speed, oil spraying volume, and drum rotation speed can be adjusted according to different product formulas and processing requirements.

4. Is this equipment suitable for continuous production lines?

Yes. The machine is designed for continuous operation and can be integrated with conveyors, dryers, extruders, and packaging systems.

5. Will the rotating drum damage fragile snack products?

No. The drum uses a gentle tumbling method to mix products while minimizing breakage and maintaining product shape.

6. What materials are used for the machine construction?

The equipment is mainly made of stainless steel, providing good corrosion resistance, hygiene performance, and easy cleaning.

7. Can the machine apply both oil and powder seasoning?

Yes. The system supports separate oil spraying and powder seasoning processes to improve flavor adhesion and coating quality.

8. How easy is the machine to clean and maintain?

The equipment features a hygienic structure with accessible components, making routine cleaning, inspection, and maintenance convenient.
