controlling software: | GRBL control |
Frame size: | 420x355x280mm |
The scope of work: | 300x180x40mm |
Screw: | T8 screw, lead 4mm, double copper nuts to eliminate hysteresis |
stepper motor: | 42 stepper motor 1.3A025NM. |
axis: | 775 spindle motor (12-36V) 24V 10000r/min |
Chuck Specifications: | ER113175MM (can be equipped with 0-7mm |
Body material: | Composition of aluminum + bakelite |
laser: | 500mw, 2500mw3500mw, 5500mw15w fixed focus optional |
power supply: | 24V5A, (110V-220V) |
System Requirements | windows XP, win7, win8win10, (32/64 are all available). Linux |
Loukou: | USB |
Processing instructions: | CNC: G-CODE, TAB,NC NCC file/Laser G-CODE, JPG, Dxf file |

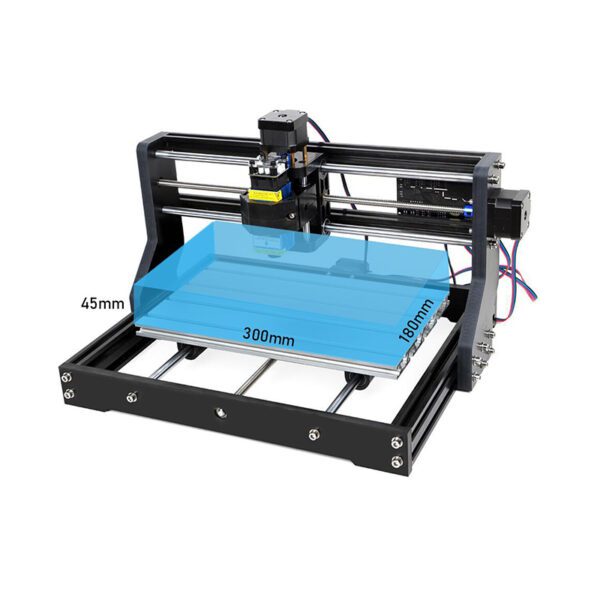

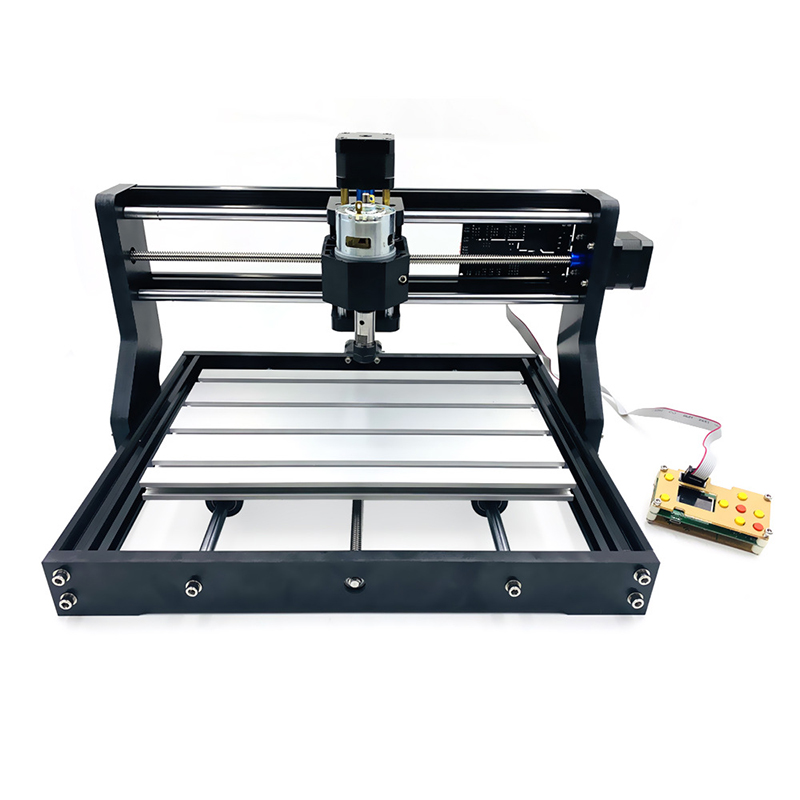

cnc3018 CNC engraving machine, small automatic woodworking, acrylic, seal DIY laser engraving machine, XYZ work area 300x180x45mm
Carving materials: plastic, wood, acrylic, PVC, pcb and other soft materials. Material shape: materials with standard shapes, cylinders, curved surfaces, and heterogeneous materials (materials with non-standard shapes) cannot be engraved.
1. The standard configuration includes a complete set of spare parts and installation tools, excluding the laser, which needs to be purchased additionally.
2. This machine is an entry-level learning kit, the parts are not the whole machine, and the whole set of parts is assembled by yourself
3 This machine is an entry-level learning model, and it cannot be compared with commercial machines. After all, the price difference is not a little bit.
$336.00
CompareBased on 0 reviews
Be the first to review “cnc3018 CNC engraving machine, small automatic woodworking, acrylic, seal DIY laser engraving machine, XYZ work area 300x180x45mm” Cancel reply
Related products
-
Metal Machine Tool Industry, Sheet Metal Machines
6 Inch Sheet Metal Shears Metal Sheet Cutter Scissors Heavy Duty Roll Press Machine for Crafts Thick Steel Crafting
Metal Machine Tool Industry, Sheet Metal Machines6 Inch Sheet Metal Shears Metal Sheet Cutter Scissors Heavy Duty Roll Press Machine for Crafts Thick Steel Crafting
0 out of 5(0)1. Horizontal arm with compensating spring.
2. Easy to cut the whole length.
3. Rigid cutter body, sent directly to the workbench.
4. Set adjustable hold-down jigs in the fixing material.
5. The shearing blade is precision rate fire steel.
6. Designed for cutting sheet metal, plate, flat bar, round bar and rebar.SKU: n/a -
CNC Machines

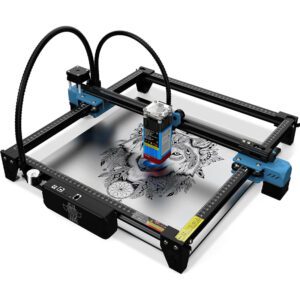

ATOMSTACK X30 PRO Laser Engraver Cutter – 160W Laser Engraving Machine for Wood and Metal, 33W Laser Output Power DIY CNC Laser Cutting and Engraving
