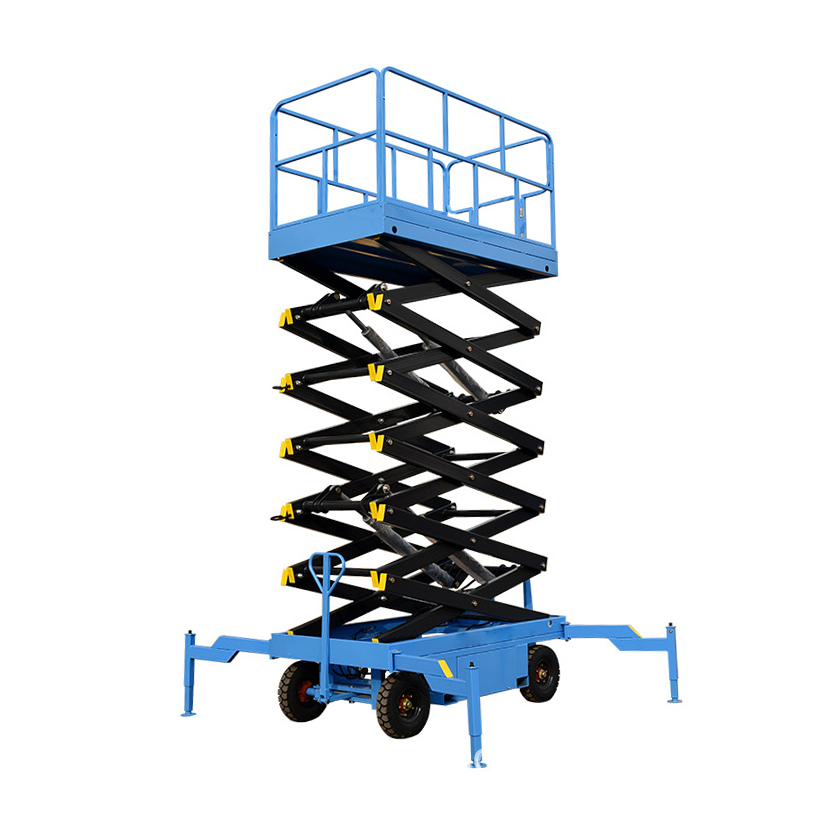

Electro-Hydraulic Small Hoist 300KG 500KG 1000KG Mobile Scissor Lift 8 Meters to 10 Meters Climbing Operation Vehicle Lifting Platform
NOTE: Prices may vary by product model and material.
- Product Name: Mobile Scissor Lift
- Color: blue or red
- Outriggers: pulling outriggers or folding outriggers are optional
- Load: 300-1000KG
- Power: 220V/380V/battery
$6,023.00
CompareFeatures of the Electro-Hydraulic Small Hoist
- High quality dual control switches. Industrial-grade dual control switches, which can be controlled on and off the stage.
- High-pressure explosion-proof oil pipe. The oil pipe adopts C-type joint, no leakage.
- Thick scissors set. The scissor set adopts manganese steel rectangular tube, which has strong bearing capacity, safety and durability.
- Using well-known brand tires, anti-slip and wear-resistant. Solid tires can be customized according to customer needs.
- Auxiliary walking system. The mobile lift can be configured with an auxiliary walking function. The auxiliary walking function adopts the electric vehicle handlebar controller to control the equipment walking, steering and forward and backward.
| Model | Platform size | Rate capacity | Raised height | Dimensions | Weight |
| 0.5-4 | 2100*830mm | 500 kg | 4 m | 2250*950*1100mm | 800 kg |
| 0.5-6 | 2100*830mm | 500 kg | 6 m | 2250*950*1200mm | 880 kg |
| 0.5-7 | 2100*830mm | 500 kg | 6.8 m | 2250*950*1200mm | 970 kg |
| 0.5-8 | 2100*930mm | 500 kg | 8 m | 2250*1060*1380mm | 1050 kg |
| 0.5-9 | 2100*930mm | 500 kg | 9 m | 2250*1060*1500mm | 1165 kg |
| 0.5-10 | 2100*1230mm | 500 kg | 10 m | 2250*1350*1530mm | 1360 kg |
| 0.3-11 | 2100*1230mm | 300 kg | 11 m | 2250*1350*1650mm | 1400 kg |
| 0.5-12 | 2550*1530mm | 500 kg | 12 m | 2796*1670*1750mm | 2260 kg |
| 0.5-14 | 2812*1530mm | 500 kg | 14 m | 3067*1730*1810mm | 2486 kg |
| 0.3-16 | 2812*1600mm | 300 kg | 16 m | 3067*1810*2080mm | 3063 kg |
| 0.3-18 | 3070*1600mm | 300 kg | 18 m | 3321*1810*2080mm | 3900 kg |
| 1.0-4 | 2100*1200mm | 1000 kg | 4 m | 2250*1350*1180mm | 1250 kg |
| 1.0-6 | 2100*1200mm | 1000 kg | 6 m | 2250*1350*1300mm | 1400 kg |
| 1.0-8 | 2100*1200mm | 1000 kg | 8 m | 2250*1350*1420mm | 1585 kg |
| 1.0-10 | 2100*1200mm | 1000 kg | 10 m | 2250*1350*1530mm | 1700 kg |
| 1.0-12 | 2550*1530mm | 1000 kg | 12 m | 2796*1700*1780mm | 2560 kg |
| 1.0-14 | 2812*1600mm | 1000 kg | 14 m | 3067*1810*1900mm | 3230 kg |
