Berry Juice Belt Press Machine for Continuous Processing
Fruit juice belt press machine is an efficient continuous pressing machine designed for extracting juice from fruit mash. With an integrated juice collection system and filtration unit, it reduces installation space while improving juice quality. The automatic operation, adjustable belt tension, and high-pressure cleaning system ensure stable performance and easy maintenance. Made with food-grade stainless steel, this machine is suitable for apple, berry, and other fruit juice processing applications requiring high extraction efficiency and hygienic production.
Compare
Product introduction of Juice Belt Press Machine
Fruit juice belt press machine is a continuous extraction machine designed for separating juice from crushed fruit mash with high efficiency. The equipment combines pressing, filtration, and juice collection functions into one integrated system, reducing additional tanks and pumps while saving installation space.
During operation, fruit mash is evenly distributed onto the press belt and gradually compressed through multiple pressing stages. The extracted juice passes through the integrated filtration system to remove impurities and improve clarity before collection.
The machine features automatic operation control, adjustable belt tension, high-pressure belt washing, and easy-access cleaning design. The pneumatic lifting safety cover allows convenient maintenance and inspection. All product-contact parts are manufactured with food-grade materials to ensure hygienic processing.
With reliable performance and simple maintenance, the fruit juice belt press is widely used for apple juice, berry juice, and other fruit processing applications requiring continuous production and high juice recovery.
Product Overview
Continuous Fruit Mash Pressing Equipment
This belt press system is designed for continuous juice extraction from prepared fruit mash. By integrating the pressing unit, juice collection tank, and filtration device, the equipment provides a compact solution for modern juice processing facilities.
The machine uses a progressive pressing method to extract liquid from fruit pulp while maintaining product quality. The integrated filtration system helps produce cleaner juice with reduced solid particles.
Compared with traditional pressing methods, this equipment offers:
- continuous operation
- reduced auxiliary equipment requirements
- improved juice quality
- convenient cleaning
- stable processing performance

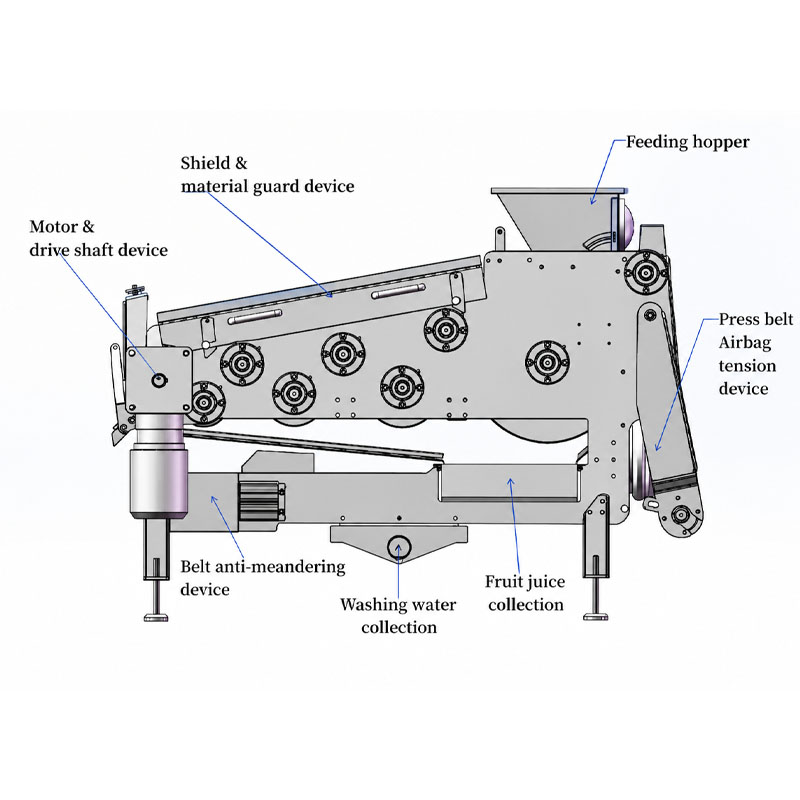

Working Principle
The fruit mash enters the feeding section and is evenly distributed onto the moving press belt. The belt carries the material through multiple pressing zones where increasing pressure gradually releases juice.
The extracted juice flows through the filtration section into the integrated collection tank. The filtered juice is then transferred for further processing.
After pressing, the remaining pulp is discharged from the belt, while the automatic washing system continuously cleans the belt surface to maintain stable filtration performance.
Working Process
Fruit Mash Feeding → Material Distribution → Belt Pressing → Juice Filtration → Juice Collection → Pulp Discharge → Belt Cleaning
Product Parameter Table
| Parameter | Specification |
|---|---|
| Processing Capacity | 1500 kg/h |
| Belt Width | Customized |
| Pressing Type | Multi-stage belt pressing |
| Operation Mode | Continuous automatic operation |
| Juice Collection | Integrated collection tank |
| Filtration Method | Built-in filtration system |
| Cleaning Method | High-pressure belt washing |
| Material | Food-grade stainless steel |
| Application | Apple, berry and fruit juice processing |
| Control System | Automatic control |
Main Features
Integrated Juice Collection System
The built-in juice collection structure eliminates the need for additional external tanks and pumps, reducing equipment footprint and installation costs.
High Juice Recovery Efficiency
The optimized pressing structure helps extract more juice from fruit mash while maintaining natural product characteristics.
Automatic Continuous Operation
The intelligent control system enables automatic feeding coordination, juice transfer, and machine operation for improved production efficiency.
Built-in Filtration Function
The integrated filtration screen removes unwanted particles and improves juice clarity.
High-pressure Belt Washing System
The automatic cleaning system continuously washes the press belt, reducing residue buildup and extending service life.
Adjustable Belt Tension
The belt tension adjustment system ensures stable operation and consistent pressing performance.
Hygienic Food-grade Design
All material-contact surfaces use food-grade materials suitable for beverage and food processing applications.
Maintenance Guide
Daily Belt Cleaning
Wash the belt after production to remove remaining pulp and maintain hygiene.
Regular Belt Inspection
Check belt tension and alignment to ensure stable operation.
Component Inspection
Inspect rollers, bearings, and drive components regularly.
Cleaning Procedure
The removable structure allows easy cleaning without complicated tools.
Why Choose Fruit Juice Belt Press?
- integrated juice collection and filtration
- continuous fruit mash processing
- high juice recovery performance
- automatic cleaning system
- adjustable pressing conditions
- food-grade stainless steel construction
- easy operation and maintenance
Application Areas
Apple Juice Production
Suitable for extracting juice from crushed apples with high recovery efficiency.
Berry Juice Processing
Used for processing berry mash including:
- strawberry
- blueberry
- raspberry
- other soft fruits
Fruit Beverage Production
Suitable for commercial juice production requiring continuous extraction.
Agricultural Product Processing
Can be applied for various fruit-based processing industries.
Advantages
Space-saving Design
The integrated collection and filtration structure reduces additional equipment requirements.
Easy Maintenance
Removable components and open-access design simplify cleaning and maintenance work.
Reduced Operating Cost
The efficient washing system and automatic operation reduce labor requirements.
Stable Juice Quality
The filtration system helps produce cleaner juice with improved consistency.
Long Service Life
Food-grade stainless steel construction and durable components support long-term operation.
FAQ
1. What is a fruit juice belt press?
A fruit juice belt press is a continuous machine that extracts juice from fruit mash through belt pressing and filtration.
2. What fruits can be processed?
It is suitable for apples, berries, and various fruit mash materials.
3. Does the machine require an external juice tank?
No. The integrated collection system reduces the need for additional juice collection equipment.
4. How does the machine improve juice quality?
The built-in filtration system helps remove impurities and provides clearer juice.
5. Is the machine fully automatic?
Yes. The equipment supports automatic operation for continuous production.
6. How is the press belt cleaned?
The integrated high-pressure washing system continuously cleans the belt surface.
7. What material is used for product contact parts?
Food-grade stainless steel is used for safe and hygienic processing.
8. Is maintenance difficult?
No. The machine is designed with accessible components for simple cleaning and maintenance.
Contact us to get your quotation now.
Get in touch with our engineering team.
