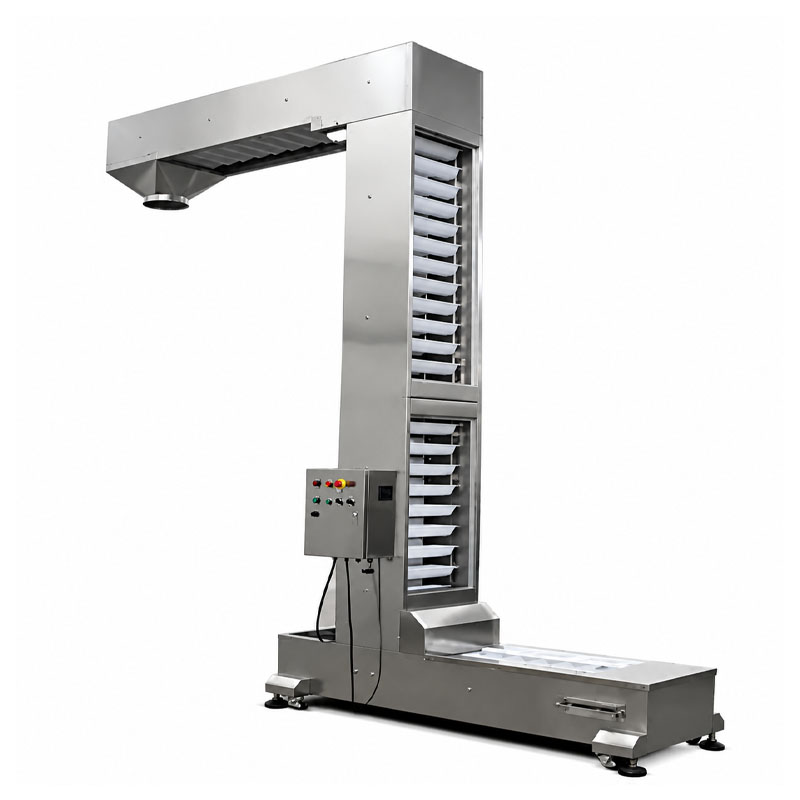

Automatic Z Type Bucket Elevator for Sugar and Candy Handling

Product introduction of Automatic Z Type Bucket Elevator

The Z Type Bucket Elevator is an advanced material handling system designed to provide continuous and automatic transportation of various granular and bulk materials. It uses a series of buckets connected to a belt or chain mechanism to lift materials smoothly between different production levels while maintaining product quality.

Unlike traditional lifting equipment, the Z Type Bucket Elevator integrates multiple conveying directions into one compact structure. The unique Z-shaped layout enables horizontal feeding, vertical elevation, and horizontal discharge, helping manufacturers save installation space and simplify production line design.

The equipment is manufactured with durable materials such as food-grade plastic and stainless steel, making it suitable for industries requiring clean, hygienic, and reliable operation. The enclosed conveying structure helps prevent material leakage, dust contamination, and external pollution during transportation.

With adjustable bucket volume, conveying height, feeding method, and discharge configuration, the Z Type Bucket Elevator can be customized according to different material characteristics and production requirements. It is widely used for transporting snacks, grains, seeds, sugar, nuts, chemicals, pharmaceutical granules, and other free-flowing materials.

Designed for automatic feeding and stable operation, this equipment can be integrated with weighing systems, packaging machines, and automated production lines to improve efficiency and reduce labor costs.

Working principle

The Z Type Bucket Elevator operates through continuously moving buckets attached to a belt or chain system. Materials enter through the feeding hopper and are collected by the moving buckets.

The buckets transport the materials horizontally, lift them vertically through the elevator section, and then move horizontally again before reaching the discharge point. After unloading, the empty buckets return to the feeding section to complete the next conveying cycle.

This continuous movement provides stable, accurate, and gentle transportation, making the equipment suitable for automated production environments.

Customization Options

Bucket Volume Selection

Different bucket sizes can be selected according to material properties and required conveying capacity.

Material Selection

Available construction options include food-grade plastic buckets and stainless steel structures for different application environments.

Conveying Height

The lifting height can be customized according to factory layout and production requirements.

Feeding Configuration

Single feeding or integrated automatic feeding solutions can be designed according to production needs.

Discharge Configuration

Single or multiple discharge points can be customized for different production processes.

Product Parameter Table

Item	Specification
Equipment Type	Z Type Bucket Elevator
Conveying Capacity	3–6 Tons/hour
Maximum Lifting Height	Up to 10 m
Lifting Direction	90° Vertical Lifting
Load Capacity	Adjustable According to Bucket Size
Drive Type	Chain Drive
Conveying Speed	Adjustable, Up to 60 m/min
Bucket Operation	Continuous Automatic Feeding and Discharging
Material	Stainless Steel / Mild Steel
Power Supply	380V, 3 Phase, 50Hz
Control System	PLC Control Panel
Noise Level	≤70 dB
Working Temperature	-10°C to 60°C
Safety Features	Emergency Stop, Anti-Return Device, Safety Guard
Application Material	Granular and Small Block Materials

Main Features

Z-Shaped Conveying Design

The Z Type Bucket Elevator combines horizontal and vertical conveying functions within one compact system. This design allows flexible installation in factories with limited space while maintaining efficient material transfer.

Gentle Material Handling

The bucket lifting method provides smooth transportation and minimizes product impact. It helps reduce breakage, material loss, and deformation, making it suitable for fragile products.

Food Grade Construction

Food-grade plastic buckets and stainless steel components provide safe and hygienic material contact surfaces, meeting the requirements of food processing and packaging applications.

Automatic Feeding and Discharging

The system supports continuous automatic feeding and controlled discharge, improving production efficiency and reducing manual operation requirements.

Customizable Configuration

The equipment can be customized according to:

• bucket volume
• conveying height
• conveying distance
• feeding method
• discharge position
• production capacity

Enclosed Structure

The closed conveying design helps prevent dust, leakage, and contamination while maintaining a cleaner production environment.

Durable and Easy Maintenance

The robust structure provides reliable operation, corrosion resistance, and convenient maintenance for long-term industrial use.

Wide Material Compatibility

The Z Type Bucket Elevator can handle different free-flowing materials, including granular, powder, and small bulk products.

Application Scenarios

Food Processing Industry

The Z Type Bucket Elevator is widely used for transporting snacks, candies, nuts, sugar, cereals, and other food ingredients requiring hygienic and gentle handling.

Snack Production Line

It is suitable for conveying chips, biscuits, puffed food, and other fragile snack products while reducing breakage during transfer.

Grain and Agricultural Processing

The equipment can handle rice, wheat, corn, seeds, beans, and other agricultural products in processing facilities.

Packaging Industry

It can provide stable feeding for weighing machines, filling machines, and automatic packaging systems to improve production efficiency.

Pharmaceutical Industry

The enclosed structure and clean material transfer method make it suitable for pharmaceutical granules and powder handling.

Chemical Industry

It can transport non-viscous chemical granules and powder materials in industrial production processes.

Feed Manufacturing

The system is suitable for transporting feed pellets, additives, and other granular ingredients.

Industrial Bulk Material Handling

It provides an efficient solution for moving small bulk materials between different production stages.

Product Selection Guide

When selecting a Z Type Bucket Elevator, customers should provide:

• material type
• required conveying capacity
• lifting height
• feeding method
• discharge position
• installation space
• power supply requirements

Based on these details, a suitable conveying solution can be designed to achieve the best performance.

Material Handling Capability

The Z Type Bucket Elevator is suitable for:

• sugar
• candy
• nuts
• seeds
• grain
• rice
• snacks
• cereals
• pellets
• pharmaceutical granule
• chemical particle
• feed material

FAQ

Q1: What materials can the Z Type Bucket Elevator handle?

A: It can transport various free-flowing granular and powder materials, including sugar, candy, nuts, seeds, grains, snacks, pellets, and chemical particles.

Q2: Is the Z Type Bucket Elevator suitable for food production?

A: Yes. With food-grade buckets and stainless steel construction options, it is suitable for hygienic food processing and packaging applications.

Q3: Can the equipment reduce product damage?

A: Yes. The bucket conveying method provides gentle transportation and helps minimize breakage and material loss.

Q4: Can the conveying height be customized?

A: Yes. The lifting height, conveying distance, and layout can be adjusted according to customer requirements.

Q5: Can it connect with automatic packaging machines?

A: Yes. The Z Type Bucket Elevator can be integrated with weighing, filling, and packaging equipment.

Q6: What is the maintenance requirement?

A: The equipment requires only routine inspection, cleaning, and basic maintenance to ensure stable operation.

Q7: What industries commonly use this equipment?

A: It is widely used in food processing, packaging, agriculture, pharmaceutical, chemical, and industrial material handling industries.
