Automatic Horizontal Flow Wrapping Machine for Food Packaging

Automatic Horizontal Flow Wrapping Machine Product Introduction

The Automatic Horizontal Flow Wrapping Machine for Food Packaging is an advanced continuous packaging solution designed for a wide range of food products. It adopts horizontal flow wrapping technology to automatically complete film feeding, product conveying, bag forming, sealing, and cutting processes, providing an efficient and reliable packaging method for food manufacturers.

This flow wrapping machine is widely used for packaging vegetables, bread, bakery products, snacks, meat products, frozen food, prepared meals, and other products requiring clean and attractive packaging. The machine supports different cutting modes, including fixed-length cutting, non-fixed-length cutting, and code-detection cutting, allowing flexible adjustment according to different product requirements.

Equipped with servo motor control, intelligent operation interface, and stable sealing structure, the machine delivers consistent packaging performance while reducing manual labor and improving production efficiency. It is an ideal choice for food factories, central kitchens, supermarkets, and large-scale production lines.

Industry Pain Points

Food manufacturers often face several packaging challenges:

Traditional manual packaging has low efficiency and inconsistent appearance.

Different product sizes require flexible packaging solutions.

Packaging speed cannot meet increasing production demands.

Poor sealing quality may affect product freshness and shelf life.

High labor costs increase overall production expenses.

Changing product specifications requires frequent machine adjustment.

Food packaging requires clean, stable, and reliable operation.

Our Solution

The Automatic Horizontal Flow Wrapping Machine provides a complete automated packaging solution for food products.

The machine uses continuous film packaging technology to automatically wrap products with packaging film and create sealed packages. The adjustable conveying system and intelligent cutting modes allow the equipment to handle different product lengths and packaging requirements.

For fresh food, bakery products, vegetables, and snacks, the machine provides professional packaging results with neat sealing, stable operation, and improved production efficiency.

The system can also be integrated with upstream and downstream equipment to create a complete automated food packaging line.

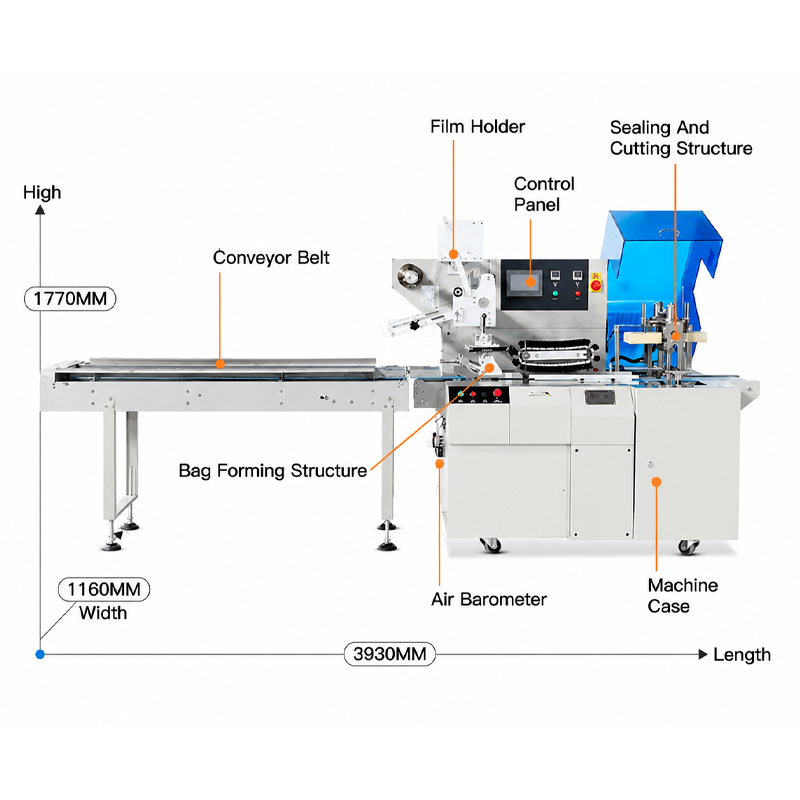

System Overview

The automatic horizontal flow wrapping system mainly consists of:

Automatic film feeding unit

Product conveyor system

Bag forming structure

Horizontal sealing system

Cutting mechanism

Servo drive system

Touch screen control panel

Nitrogen filling structure (optional)

Finished product discharge conveyor

Safety protection system

The integrated design ensures smooth material transportation and continuous packaging operation.

Process Description

Film Feeding

The packaging film roll is installed on the film holder and automatically supplied into the forming section.

Product Conveying

Products are transported continuously through the conveyor belt with accurate positioning.

Film Forming

The film is folded around the product to create a tubular packaging structure.

Sealing

The sealing system creates strong and clean package seals according to preset parameters.

Cutting

The machine automatically cuts finished packages using selected cutting modes.

Product Output

Finished packages are discharged automatically for collection, storage, or further processing.

Main Features

Automatic horizontal flow wrapping operation.

Suitable for various food products and packaging formats.

Servo motor control for accurate and stable operation.

Multiple cutting modes for flexible production requirements.

Adjustable packaging length according to product specifications.

High-quality sealing structure ensures reliable package integrity.

Intelligent touch screen control for easy operation.

Compact structure suitable for different production environments.

Optional nitrogen filling system helps protect product quality.

Compatible with various packaging films.

Key Performance Highlights

The Automatic Horizontal Flow Wrapping Machine combines high packaging efficiency with flexible production capability.

Its servo-controlled feeding and sealing system improves packaging accuracy and reduces film waste. The intelligent cutting system supports fixed-length cutting, non-fixed-length cutting, and code-detection cutting, allowing manufacturers to handle different product sizes efficiently.

The continuous horizontal packaging design enables stable high-speed production while maintaining attractive package appearance and reliable sealing quality.

Why Choose This Equipment

Improves food packaging efficiency compared with manual methods.

Provides consistent package appearance and sealing quality.

Suitable for different food categories and production scales.

Reduces labor requirements and operating costs.

Flexible adjustment for different product sizes.

Supports customized packaging solutions.

Easy operation through intelligent control system.

Suitable for integration into automatic production lines.

Technical Specifications

Parameter	Specification
Equipment Type	Automatic Horizontal Flow Wrapping Machine
Power Supply	Customized according to customer requirements
Motor Power	3.2 kW
Conveyor Speed	5–20 m/min
Suitable Product Height	Maximum 130 mm (customizable)
Bag Forming Size	Width: 100–270 mm; Length: 150 mm (customizable)
Film Width	Maximum 590 mm (customizable)
Film Roll Diameter	Maximum 320 mm (customizable)
Packaging Material	OPP heat-sealing film, laminated composite film
Sealing Type	Bottom sealing
Packaging Method	Automatic film feeding, forming, sealing and cutting
Control System	Intelligent automatic control system
Application Products	Food products, bakery items, vegetables, snacks, daily products and other packaged goods
Machine Size	Approx. 3930 × 1160 × 1770 mm (L × W × H)
Customization	Product size, bag dimensions, film specifications and packaging functions can be customized according to requirements

Optional Equipment

Nitrogen filling system

Automatic feeding conveyor

Date coding system

Product counting system

Customized sealing knife

Extended conveyor system

Automatic sorting system

Integration with production lines

Application Scenarios

Fresh Vegetable Packaging

The machine is suitable for packaging leafy vegetables, celery, peppers, and other fresh agricultural products, helping maintain clean appearance and improve retail presentation.

Bakery Product Packaging

Suitable for bread, pastries, cakes, and other bakery products requiring attractive and hygienic packaging.

Meat and Processed Food Packaging

Used for packaged meat products, prepared meals, and refrigerated foods requiring sealed protection.

Snack Food Packaging

Suitable for chips, biscuits, candy, and other snack products requiring efficient individual packaging.

Central Kitchen Packaging

Provides automatic packaging solutions for prepared dishes, meal kits, and food distribution centers.

Supermarket Product Packaging

Helps supermarkets and food suppliers achieve standardized packaging operations.

Industry Applications

Food Processing Industry

Used for automated packaging of various processed food products.

Bakery Industry

Suitable for bread, cakes, pastries, and baked goods packaging.

Agricultural Products Industry

Used for fresh vegetables, fruits, and agricultural product packaging.

Meat and Seafood Industry

Suitable for packaged meat, seafood, and chilled products.

Ready-to-Eat Food Industry

Provides efficient packaging solutions for prepared meals and convenience foods.

Catering and Central Kitchen Industry

Supports large-volume food preparation and distribution operations.

FAQ

1. What products can this horizontal flow wrapping machine package?

It can package vegetables, bread, snacks, meat products, bakery products, and many other food items.

2. What type of packaging film can be used?

The machine can work with various food packaging films, including PE film and laminated composite films.

3. Can the packaging length be adjusted?

Yes. The machine supports adjustable packaging length according to product requirements.

4. What cutting modes are available?

The machine supports fixed-length cutting, non-fixed-length cutting, and code-detection cutting.

5. Is the machine suitable for fresh food?

Yes. It is widely used for fresh vegetables, bakery products, and refrigerated food packaging.

6. Can nitrogen filling be added?

Yes. A nitrogen filling system can be added according to product preservation requirements.

7. Does the machine require manual operation?

The machine works automatically after product feeding and parameter setting.

8. Can it connect with other production equipment?

Yes. It can be integrated with conveyors, production lines, and automatic feeding systems.

9. How can the machine improve packaging efficiency?

It replaces manual wrapping with continuous automatic packaging, reducing labor costs and improving production speed.

10. Can the machine be customized?

Yes. Packaging size, conveyor design, sealing structure, and additional functions can be customized according to customer needs.
