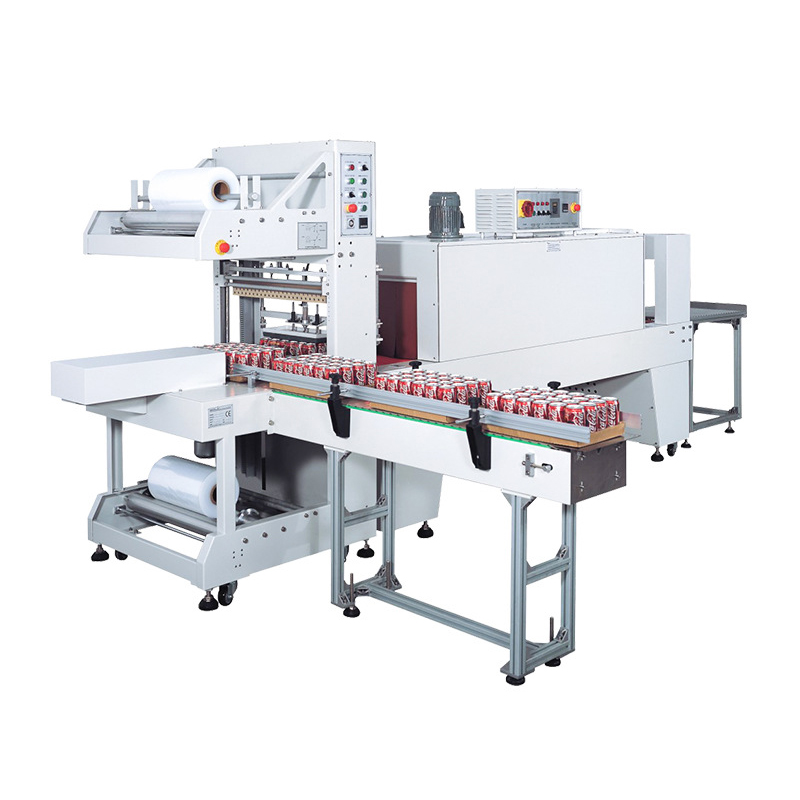

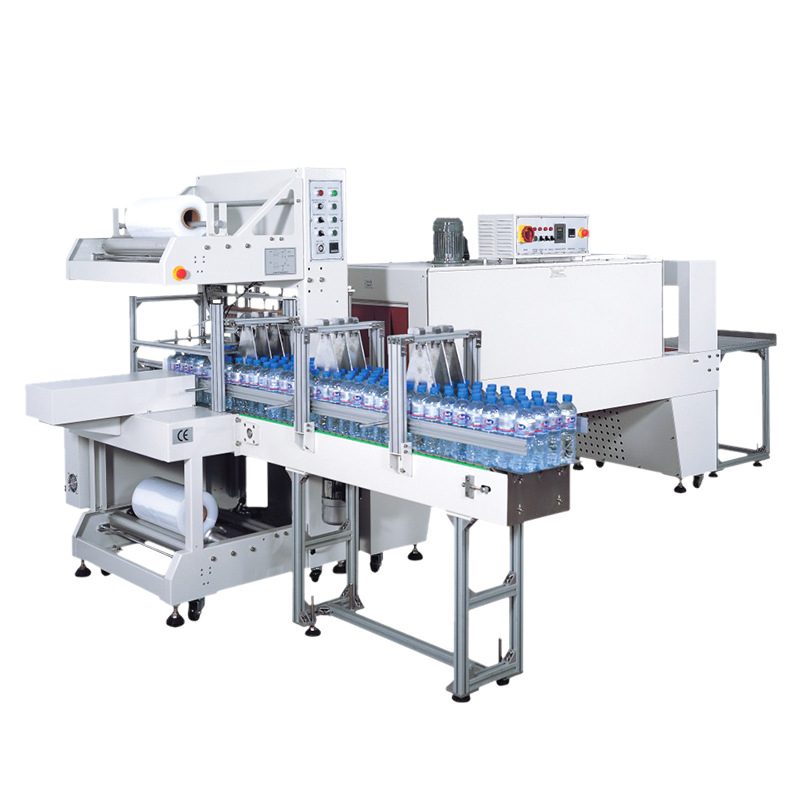

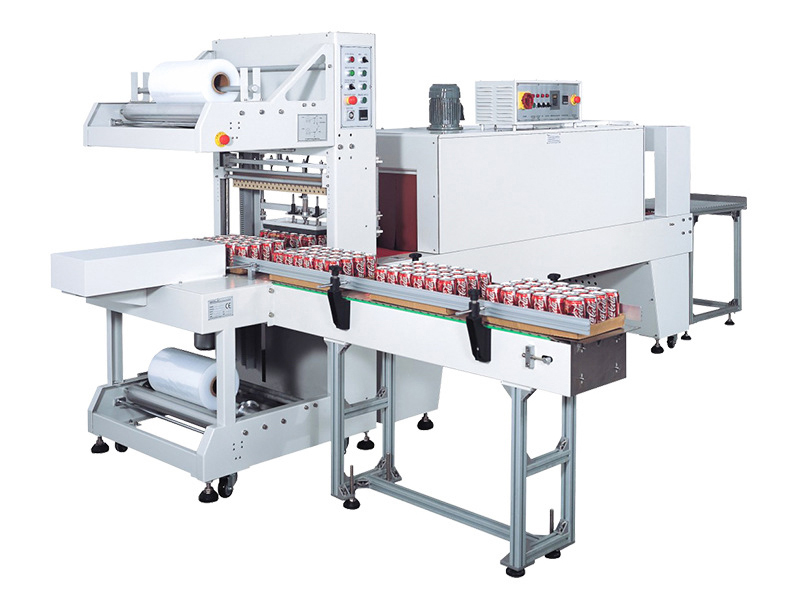

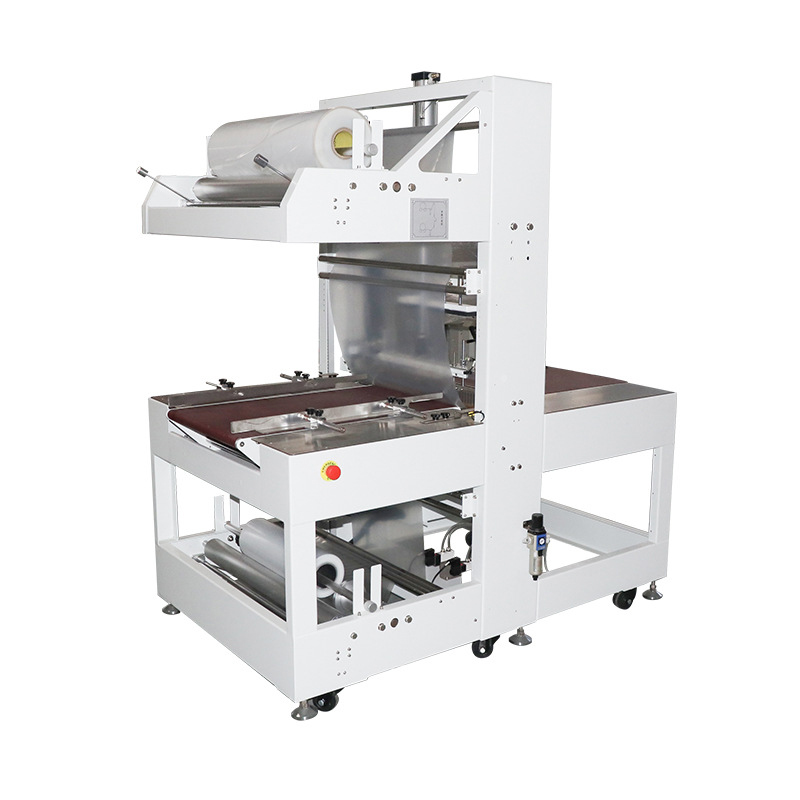

Basic parameters of the Cuff Type Automatic Heat Shrinkable Packaging Machine
Packing form | Cuff Type heat shrinkable |
Power supply | 220-380V |
Maximum packing size | L1360mm×W2120mm×H1900mm |
Mechanical size | L500mm×W300mm×H300mm |
Sealing knife size | 700mm |
Feed level height | 850mm±50/1500mm |
Sealing temperature/shrinkage temperature | 0-200°C |
Packing speed | 8-18 pieces/minute |
Power | 2Kw |
Scope of application | Beverages, beer, mineral water, cans, glass bottles with paper trays, cartons, etc., for collective or single shrink packaging |
Features
- The introduction of international advanced technology and craft production, the equipment performance is stable and reliable.
- Inductive film feeding greatly reduces film loss.
- Digital display thermostat allows you to directly see the temperature status during sealing and cutting.
- Stepless mechanical speed regulating device adjusts the speed of the feeding conveyor belt.
- PLC programmable controller realizes the integration of machinery, electricity and gas.
- Using a specially designed sealing knife, the sealing line is firm, does not crack, and is not easy to stick to the knife.
- The feeding conveyor belt can be designed to feed on the left or right as needed.
- The imported dual-movement wind motor is used to distribute the hot air evenly in the furnace cavity, and the effect after shrinkage is more beautiful.
- The adjustable hot air diversion circulation structure in the furnace chamber makes the equipment more energy-saving.
- It uses solid steel rods wrapped with imported silicone tubes, and the chain-rod conveying is durable.
