Automatic Horizontal Crayon Labeling Machine for Packaging

Horizontal Crayon Labeling Machine Product Introduction

Automatic Horizontal Crayon Labeling Machine for Packaging is designed for high-precision labeling of small cylindrical products, including crayons, reagent tubes, cosmetic tubes and other round containers.

The machine adopts a horizontal feeding and labeling structure, allowing products to remain stable during transportation and labeling. Through automatic bottle feeding, positioning and label application, it achieves smooth and accurate labeling results on cylindrical surfaces.

With compact design, adjustable labeling components and reliable control technology, this horizontal labeling machine is ideal for manufacturers requiring efficient labeling solutions for small-diameter products.

Product Overview

This Automatic Horizontal Labeling Machine is developed for products that are difficult to label vertically due to their small diameter or unstable shape.

Compared with traditional manual labeling methods, the machine provides:

• Stable product positioning
• Higher labeling accuracy
• Faster production efficiency
• Consistent product appearance
• Reduced manual operation

It is widely used in industries requiring precise labeling of small cylindrical products.

Working Principle

Products are automatically fed into the conveyor system and transported horizontally to the labeling station.

The sensor detects the product position, and the positioning mechanism controls the product movement. The labeling head automatically releases and applies the label onto the cylindrical surface while the product rotates smoothly.

The machine can achieve full-circle labeling or partial wrap-around labeling according to product requirements.

Working Process:

Automatic Feeding → Product Positioning → Label Detection → Label Dispensing → Rotary Labeling → Product Output

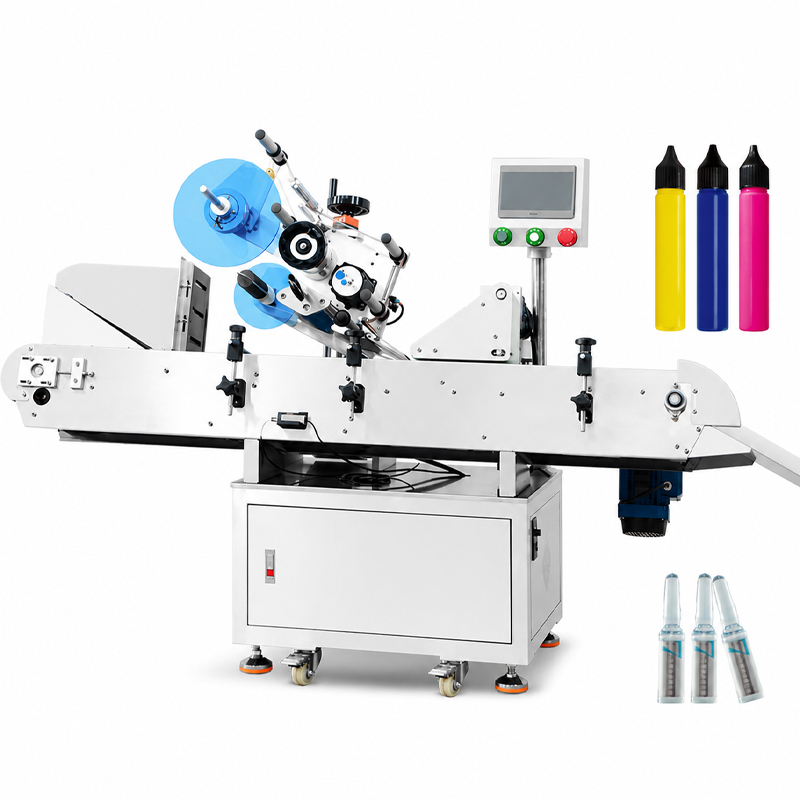

Machine Structure

Automatic Feeding System

Automatically transfers products into the labeling area to improve production efficiency.

Label Roll Holder

Provides stable label supply for continuous labeling operation.

Labeling Head

Applies labels accurately onto product surfaces.

Product Positioning Structure

Keeps small cylindrical products aligned during labeling.

Label Sensor

Detects label gaps and controls precise label dispensing.

Inclined Conveyor

Ensures smooth product movement and stable output.

Control Panel

Allows operators to set labeling parameters and monitor machine operation.

Main Features & Advantages

Designed for Small Cylindrical Products

The horizontal structure is specially designed for small diameter products that are difficult to label vertically, ensuring stable transportation and accurate labeling.

Full-Circle and Partial Labeling

The machine supports full wrap labeling and partial labeling applications for different product packaging requirements.

High Labeling Accuracy

The precise sensor system and positioning mechanism help maintain consistent label placement and reduce labeling errors.

Automatic Product Feeding

The feeding system improves production efficiency and reduces manual product placement.

Adjustable Labeling Parameters

Operators can adjust labeling speed, product positioning and labeling position according to different product specifications.

Compact and Efficient Design

The machine occupies less production space and is suitable for small and medium production lines.

Easy Operation

The touch screen control system provides convenient parameter adjustment and production monitoring.

Technical Parameters

Parameter	Specification
Equipment Type	Automatic Horizontal Labeling Machine
Application	Crayons, Reagent Tubes, Small Cylindrical Products
Labeling Method	Horizontal Rotary Labeling
Power Supply	110/220V, 50–60Hz
Labeling Speed	60–170 pcs/min
Labeling Accuracy	±1 mm
Suitable Product Diameter	Φ13–21 mm (Customizable)
Suitable Label Width	20–100 mm
Suitable Label Height	20–130 mm
Label Roll Outer Diameter	Φ280 mm
Label Roll Inner Diameter	Φ76 mm
Suitable Product Type	Small Round Tubes and Cylindrical Containers
Machine Dimensions	Approx. 2100 × 800 × 1400 mm (L×W×H)
Package Dimensions	Approx. 2220 × 930 × 1520 mm (L×W×H)
Package Weight	Approx. 319 kg
Label Type	Self-Adhesive Labels
Operation Mode	Automatic Continuous Operation
Main Features	High-Speed Labeling, Precise Positioning, Stable Performance and Easy Adjustment

Customization Options

The machine can be customized according to:

• Product diameter
• Product length
• Label size
• Labeling position
• Production speed
• Packaging requirements

Optional functions:

• Date printing system
• Barcode printing
• Customized feeding device
• Special positioning fixture
• Transparent label sensor

Application Scenarios

Stationery factories applying labels on crayons and color pencils

Laboratory suppliers labeling reagent tubes and test tubes

Cosmetic manufacturers labeling small tubes and cylindrical containers

Medical supply companies labeling sample tubes and laboratory products

Beauty product manufacturers applying branding labels on cosmetic tubes

OEM factories handling customized small product labeling projects

Educational product manufacturers labeling stationery items

Chemical suppliers labeling small sample containers

Electronic component manufacturers labeling cylindrical parts

Small packaging workshops requiring accurate product labeling

Industry Applications

Stationery Industry for crayons, markers, pens and educational products labeling

Laboratory Industry for reagent tubes, test tubes and sample container identification

Medical Industry for healthcare tubes and laboratory consumable labeling

Cosmetics Industry for small cosmetic tubes, sample bottles and beauty products

Chemical Industry for small chemical containers and sample package labeling

Personal Care Industry for essential oil tubes and small cylindrical packages

Manufacturing Industry for precision product identification labeling

OEM Packaging Industry for customized small product labeling solutions

Retail Product Industry for branded packaging and product information labels

Industrial Supply Industry for cylindrical component identification and tracking

Label Compatibility

The machine supports different self-adhesive labels, including:

• Paper labels
• Film labels
• Transparent labels
• Waterproof labels
• Barcode labels
• Product identification labels

The labeling parameters can be adjusted according to different label materials and product sizes.

Why Choose This Automatic Horizontal Crayon Labeling Machine?

✔ Designed for small cylindrical products
✔ Suitable for crayons, reagent tubes and cosmetic tubes
✔ Stable horizontal labeling operation
✔ Supports full-circle and partial labeling
✔ High labeling accuracy and consistency
✔ Automatic feeding improves efficiency
✔ Compact structure saves production space
✔ Suitable for various precision labeling applications

FAQ

1. What products can this Automatic Horizontal Crayon Labeling Machine label?

This machine is mainly designed for small cylindrical products such as crayons, marker pens, reagent tubes, test tubes, cosmetic tubes and other round containers requiring precise labeling.

2. Why is a horizontal labeling machine suitable for crayons and reagent tubes?

Small diameter products are often unstable during vertical labeling. The horizontal structure keeps products steady during transportation and rotation, improving labeling accuracy and reducing label deviation.

3. Can this machine apply full-wrap labels around cylindrical products?

Yes. The machine can perform full-circle labeling or partial wrap labeling according to different product packaging requirements.

4. Can this machine handle different product sizes?

Yes. The labeling position, guide structure and operating parameters can be adjusted according to product diameter, length and label specifications.

5. What types of labels can be used with this machine?

The machine supports various self-adhesive labels, including paper labels, film labels, transparent labels, waterproof labels, barcode labels and customized printed labels.

6. Can this machine be used for laboratory products?

Yes. It is suitable for labeling reagent tubes, test tubes, sample containers and other laboratory consumables requiring clear product identification.

7. How does the machine ensure accurate labeling?

The machine uses a photoelectric sensor and positioning structure to detect product position and control label dispensing timing, ensuring stable and accurate labeling.

8. Can a date printer or coding system be added?

Yes. The machine can be integrated with coding equipment to print production dates, batch numbers, barcodes, QR codes and other traceability information.

9. Is this machine suitable for small production factories?

Yes. With a compact structure and simple operation, it is suitable for small and medium-sized manufacturers, OEM factories and customized production applications.

10. Can this horizontal labeling machine be connected with other equipment?

Yes. It can be integrated with automatic feeding systems, inspection equipment, packaging machines and production lines to achieve continuous automated operation.
