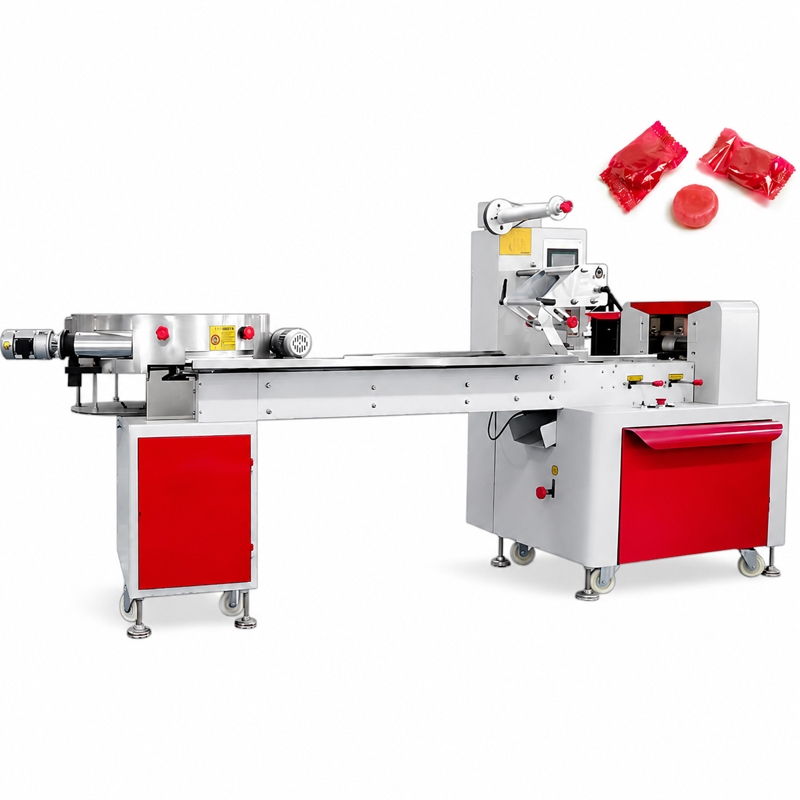

Automatic Flow Wrapping Machine for Compressed Face Mask

Automatic Flow Wrapping Machine Product Introduction

The Automatic Flow Wrapping Machine for Compressed Face Mask is a high-efficiency horizontal packaging solution designed for automatic wrapping of compressed facial mask tablets, candy-shaped mask products, and other small cosmetic items. The machine adopts a continuous flow wrapping structure with automatic feeding, film forming, sealing, and cutting functions, providing stable and attractive individual packaging for mass production.

With servo motor control, precise film feeding, and adjustable packaging parameters, this machine can meet different product sizes and packaging requirements. It is widely used in cosmetic, personal care, and beauty product industries where compact, hygienic, and convenient packaging solutions are required.

Industry Pain Points

For compressed face mask manufacturers, traditional manual packaging methods often face several challenges:

• Low packaging efficiency and difficulty meeting large production demands.
• Inconsistent sealing quality caused by manual operation.
• High labor costs and unstable production output.
• Difficulty maintaining clean and hygienic packaging environments.
• Limited flexibility when changing different product sizes or packaging materials.

These issues can affect production capacity, product appearance, and market competitiveness.

Our Solution

This automatic flow wrapping machine provides a complete automated packaging process for compressed face mask tablets. It replaces manual packing operations with continuous mechanical feeding, film wrapping, heat sealing, and cutting.

The equipment helps manufacturers improve packaging speed, reduce labor requirements, maintain consistent sealing performance, and achieve professional retail-ready packaging.

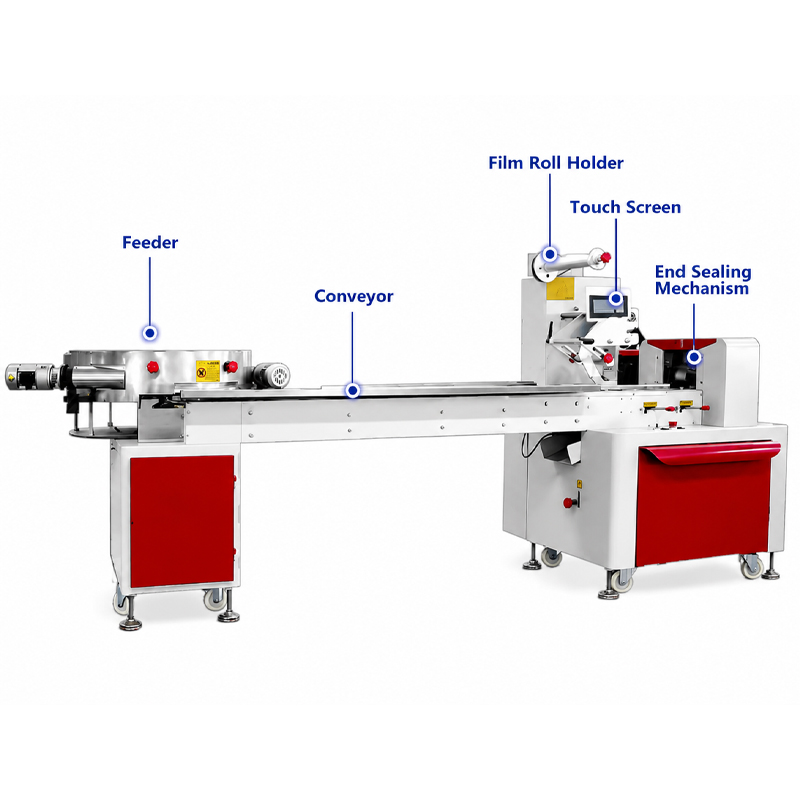

System Overview

The machine consists of:

• Automatic feeding system
• Product conveying system
• Film roll holder
• Film forming unit
• Horizontal sealing mechanism
• Cutting system
• Servo drive control system
• Touch screen operation panel
• Stainless steel machine frame

The compact structure allows easy integration into cosmetic production lines and automated packaging systems.

Process Description

The working process includes:

1. Compressed face mask tablets are automatically fed into the conveyor system.
2. Packaging film is continuously supplied from the film roll.
3. The film is formed around the product through the forming structure.
4. The sealing system creates tight package edges.
5. The cutting unit separates individual packages.
6. Finished products are discharged for collection or further packing.

The entire process runs continuously to improve production efficiency and packaging consistency.

Main Features

• Automatic horizontal flow wrapping operation with stable performance.
• Suitable for compressed facial mask tablets and small cosmetic products.
• Servo motor control for accurate film feeding and cutting.
• Adjustable sealing temperature and packaging parameters.
• High-quality sealing appearance with neat package edges.
• Compatible with various heat-sealing films.
• Touch screen control for convenient operation.
• Compact design suitable for production workshops with limited space.
• Easy adjustment for different product sizes.

Key Performance Highlights

• High-speed continuous packaging capability.
• Precise product positioning and cutting.
• Stable operation with low maintenance requirements.
• Excellent package appearance suitable for retail products.
• Flexible packaging length adjustment according to product requirements.
• Suitable for long-term industrial production.

Why Choose This Equipment

Compared with manual packaging or semi-automatic solutions, this automatic flow wrapping machine provides:

• Higher production efficiency.
• More consistent packaging quality.
• Reduced labor dependency.
• Lower packaging costs per unit.
• Better protection against contamination and moisture.
• Improved product presentation for retail markets.

It is an ideal choice for cosmetic manufacturers looking to upgrade from manual packing to automated production.

Technical Specifications

Parameter	Specification
Machine Type	Automatic Flow Wrapping Machine
Power Supply	220V
Motor Power	3.7 kW
Packaging Capacity	50–700 bags/min
Packaging Size	Length: 10–50 mm / Width: 10–30 mm / Height: 4–25 mm
Film Width	50–120 mm
Packaging Method	Horizontal flow wrapping
Sealing Type	Heat sealing
Control System	Intelligent automatic control system
Operation Mode	Fully automatic
Applicable Products	Small solid products, compressed face masks, candies, tablets and similar items
Machine Dimensions	Approx. 3850 × 1100 × 1800 mm (L×W×H)
Machine Weight	Approx. 820 kg

Key Specification Highlights

• High-speed packaging capability up to 700 bags/min depending on product size and packaging material.
• Supports small-size product packaging with flexible adjustment range.
• Compatible with various heat-sealing films for different packaging requirements.
• Compact horizontal flow wrapping structure with stable and continuous operation.
• Suitable for automated production lines requiring high efficiency and consistent packaging quality.

Optional Equipment

• Automatic feeding conveyor
• Customized product feeding system
• Date printing system
• Customized sealing structure
• Different film roll holders
• Production line connection system
• Customized stainless steel structure

Application Scenarios

The Automatic Flow Wrapping Machine for Compressed Face Mask is suitable for packaging various compact cosmetic products, including:

• Compressed facial mask tablets
• Solid facial mask products
• Beauty care tablets
• Disposable skincare products
• Travel-size cosmetic products
• Personal care samples
• Small hygiene products

It provides individual sealed packaging that protects products from dust, moisture, and external contamination.

Industry Applications

Cosmetic Manufacturing Industry

Used for automated packaging of compressed face masks, skincare tablets, and beauty care products to improve production efficiency and packaging consistency.

Personal Care Products Industry

Suitable for compact personal care items requiring hygienic single-unit packaging.

Beauty Product OEM/ODM Factories

Helps OEM and ODM manufacturers handle different customer orders with flexible packaging adjustments.

E-commerce Cosmetic Brands

Provides professional individual packaging appearance suitable for online retail, promotional products, and sample distribution.

Healthcare and Hygiene Product Industry

Can also be applied to similar small solid products requiring clean and protective packaging.

FAQ

Q1: What products can be packaged by this automatic flow wrapping machine?
A: This machine is mainly designed for compressed face mask tablets, solid facial mask products, beauty care tablets, and other small flat cosmetic products. It can also be customized for similar products according to size and packaging requirements.

Q2: Is this machine suitable for cosmetic and skincare factories?
A: Yes. The machine is widely suitable for cosmetic manufacturers, skincare brands, and OEM/ODM factories that require efficient and hygienic individual packaging solutions.

Q3: How does the automatic flow wrapping process work?
A: The machine automatically completes product feeding, film forming, wrapping, heat sealing, and cutting. The finished products are discharged as individual sealed packages.

Q4: Can the packaging size be customized for different face mask tablets?
A: Yes. The feeding system, sealing position, cutting length, and packaging parameters can be adjusted according to different product dimensions and packaging designs.

Q5: What type of packaging film can be used with this machine?
A: The machine is compatible with various heat-sealing films, including OPP, CPP, laminated films, and other customized packaging materials suitable for cosmetic products.

Q6: Is the machine fully automatic?
A: Yes. It integrates automatic feeding, film wrapping, sealing, cutting, and finished product output, reducing manual operation and improving production efficiency.

Q7: What are the advantages compared with manual packaging?
A: Automatic packaging provides higher production speed, more consistent sealing quality, improved packaging appearance, reduced labor costs, and better hygiene control.

Q8: Can the machine package products with different shapes and sizes?
A: Yes. The machine can be adjusted for different product sizes. For products with special shapes or dimensions, customized feeding and sealing solutions are available.
