Automatic Double Side Labeling Machine for Bottles and Boxes

Double Side Labeling Machine Product Introduction

Automatic Double Side Labeling Machine for Bottles and Boxes is a professional automatic labeling solution designed for applying self-adhesive labels on two sides of bottles, boxes and flat packaging products. It is suitable for products requiring front and back labeling, double-side identification or multiple label applications, helping manufacturers achieve accurate and consistent packaging results.

The machine adopts a dual labeling structure with automatic conveying, product positioning and label detection systems. It can apply labels simultaneously or separately on both sides of products, improving labeling efficiency while maintaining high precision. It is widely used for cosmetic bottles, detergent bottles, food containers, electronic packages, cartons and other products with flat or double-side labeling requirements.

With a stable stainless steel structure, adjustable labeling heads and an intelligent control system, this automatic double side labeler provides flexible operation for different product sizes and label specifications. It helps companies reduce manual labor, improve production efficiency and create professional product packaging.

Product Overview

In modern packaging industries, products often require labels on multiple surfaces for branding, product information, barcodes, ingredients, instructions and traceability. Traditional manual labeling methods can result in inconsistent positions, slow production speed and increased labor costs.

The Automatic Double Side Labeling Machine for Bottles and Boxes provides an efficient automated solution for double-side labeling applications. The machine uses precise sensors and adjustable labeling mechanisms to ensure labels are attached smoothly and accurately on both sides of products.

The equipment is designed for a wide range of packaging materials, including plastic bottles, glass bottles, cartons, boxes and flat containers. It is an ideal choice for manufacturers requiring stable operation, flexible applications and high-quality labeling performance.

Working Principle

1. Product Feeding
Products are placed onto the conveyor system and automatically transported into the labeling area.

2. Product Positioning
The guide mechanism adjusts product movement to ensure stable positioning during the labeling process.

3. Label Detection
The sensor detects the product position and controls the labeling timing accurately.

4. First Side Labeling
The first labeling head automatically separates and applies the adhesive label onto one side of the product.

5. Second Side Labeling
The second labeling head applies another label on the opposite side, completing double-side labeling.

6. Label Pressing and Fixing
The pressing mechanism ensures labels are attached smoothly without wrinkles or bubbles.

7. Finished Product Output
The labeled products are automatically transferred to the next packaging process.

Process Flow:
Product Feeding → Position Detection → First Side Labeling → Second Side Labeling → Label Pressing → Finished Product Output

System Overview

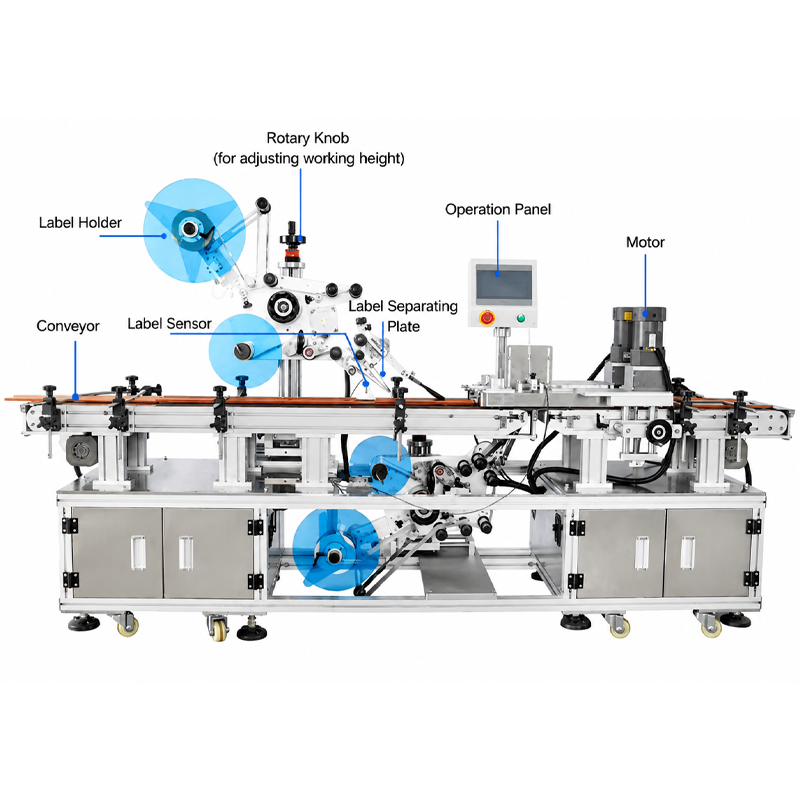

The Automatic Double Side Labeling Machine for Bottles and Boxes integrates a conveyor system, double labeling heads, label feeding mechanism, photoelectric detection system, product guiding structure and intelligent control panel.

The dual-head design allows the machine to handle products requiring front and back labels efficiently. Each labeling head can be adjusted according to different product sizes, label positions and packaging requirements.

The machine can operate independently or be connected with filling machines, packing machines and other production equipment to build a complete automatic packaging system.

Main Features

Double Side Automatic Labeling

The machine is equipped with two labeling heads to apply labels on both sides of products, improving production efficiency.

Wide Product Compatibility

Suitable for bottles, boxes, cartons, containers and flat packaging products with double-side labeling requirements.

High Labeling Accuracy

Precise sensors and stable conveying ensure accurate label placement and consistent results.

Adjustable Labeling Heads

The labeling positions can be adjusted according to different product dimensions and label specifications.

Automatic Continuous Operation

The machine completes feeding, detection and labeling automatically, reducing manual operation.

Intelligent Control Panel

The touch screen interface allows operators to adjust parameters and monitor machine operation easily.

Stable Conveyor System

The conveyor provides smooth and reliable product transportation during continuous production.

Professional Packaging Appearance

Accurate double-side labeling improves product presentation and brand recognition.

Key Performance Highlights

• Automatic front and back labeling solution
• Suitable for bottles, boxes and flat products
• Dual labeling head structure for higher efficiency
• Accurate self-adhesive label application
• Adjustable for different product sizes
• Stable continuous production capability
• Reduced manual labeling requirements
• Improved packaging consistency
• Compatible with various label materials
• Suitable for multiple industries

Why Choose This Equipment

The Automatic Double Side Labeling Machine for Bottles and Boxes is designed for manufacturers who require efficient and accurate multi-surface labeling solutions.

Compared with traditional single-side labeling equipment, this machine provides greater flexibility by supporting two-side labeling operations in one process. It helps reduce production time while maintaining consistent label positioning and professional packaging quality.

The adjustable structure allows quick adaptation to different bottle shapes, box sizes and label designs. With reliable performance, easy operation and wide application compatibility, it is a practical automation solution for companies upgrading their packaging processes.

Technical Specifications

Parameter	Specification
Equipment Type	Automatic Double Side Labeling Machine
Application	Bottles, Boxes, Cartons and Flat Packaging Products
Labeling Method	Front and Back / Double Side Self-Adhesive Labeling
Power Supply	110V / 220V, 50–60Hz
Labeling Speed	20–80 pcs/min (Depending on Product Size and Label Specifications)
Labeling Accuracy	±1 mm
Suitable Product	Customized According to Customer Requirements
Suitable Label Size	Customized According to Product Requirements
Label Roll Outer Diameter	Ø300 mm
Label Roll Inner Diameter	Ø76 mm
Label Type	Self-Adhesive Labels
Control System	Intelligent Touch Screen Control
Detection System	Photoelectric Sensor
Labeling Head	Double Labeling Structure
Machine Dimensions	Approx. 2490 × 625 × 1410 mm (L × W × H)
Machine Weight	Approx. 369 kg
Packaging Dimensions	Approx. 2740 × 1040 × 1510 mm (L × W × H)
Packaging Weight	Approx. 491 kg

Product Advantages

• Front and Back Labeling Capability
  Allows labels to be applied on two sides of bottles, boxes and containers, improving packaging efficiency.
• High Precision Label Application
  The photoelectric detection system ensures accurate label positioning and consistent results.
• Flexible Labeling Adjustment
  Labeling heads and product guides can be adjusted according to different product sizes and packaging designs.
• Large Label Roll Capacity
  Supports Ø300 mm label rolls, reducing the frequency of label replacement and improving production continuity.
• Wide Material Compatibility
  Suitable for plastic bottles, glass containers, cartons, boxes and other packaging materials.
• Stable Industrial Operation
  Strong machine structure supports long-term continuous production with reliable performance.
• Easy Integration into Production Lines
  Can be connected with filling machines, packing machines and conveyors for complete automation.

Application Scenarios

Cosmetic bottle production lines requiring front and back labels
Skincare and personal care packaging with double-side labeling needs
Food containers requiring product information labels on multiple surfaces
Electronic product boxes requiring barcode and identification labels
Detergent bottle packaging lines with automatic labeling requirements
OEM factories handling various bottle and box packaging products
Retail product manufacturers improving package appearance
Export product packaging requiring accurate labeling standards
High-volume production lines replacing manual labeling operations
Automatic packaging systems requiring double-side label application

Industry Applications

Cosmetics Industry for bottles, jars and beauty product packaging
Personal Care Industry for shampoo, lotion and detergent containers
Food Industry for food boxes, containers and packaged products
Beverage Industry for bottles requiring multiple labels
Electronics Industry for boxes and accessory packaging
Pharmaceutical Industry for medicine packages and information labels
Daily Chemical Industry for household product packaging
Retail Industry for branded product labeling solutions
Consumer Goods Industry for customized package identification
Packaging Industry for automatic labeling automation systems

FAQ

1. What products can this double side labeling machine handle?

It is suitable for bottles, boxes, cartons, containers and other products requiring labels on two sides.

2. Can the machine apply labels to both sides at the same time?

Yes. The double labeling head structure allows simultaneous or separate double-side labeling according to production requirements.

3. What types of labels can be used?

The machine supports self-adhesive paper labels, film labels, barcode labels and customized stickers.

4. Can it label different product sizes?

Yes. The labeling heads and conveyor system can be adjusted for different product dimensions.

5. Is this machine suitable for cosmetic packaging?

Yes. It is widely used for cosmetic bottles, skincare containers and beauty product boxes.

6. How does the machine ensure labeling accuracy?

The machine uses photoelectric sensors and stable conveying structures to control labeling position precisely.

7. Can a printing system be installed?

Yes. Optional printers can add production dates, batch numbers and traceability information.

8. Is the operation complicated?

No. The touch screen control system makes parameter adjustment and operation simple.

9. Can this machine connect with other production equipment?

Yes. It can be integrated with filling machines, packing machines and automatic production lines.

10. What industries commonly use this equipment?

It is widely used in cosmetics, food, beverage, pharmaceutical, electronics and consumer product industries.
