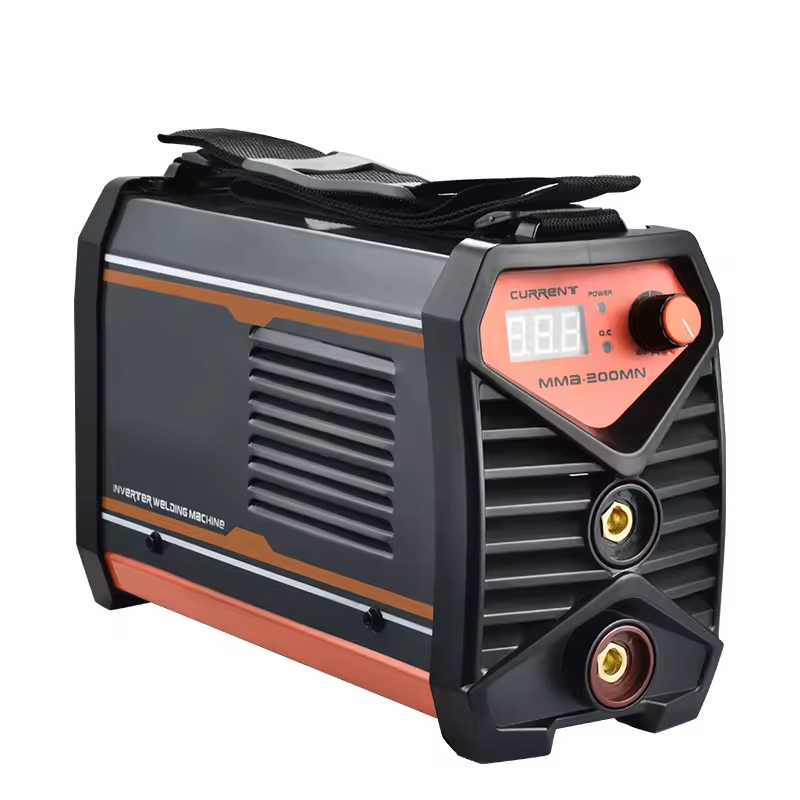

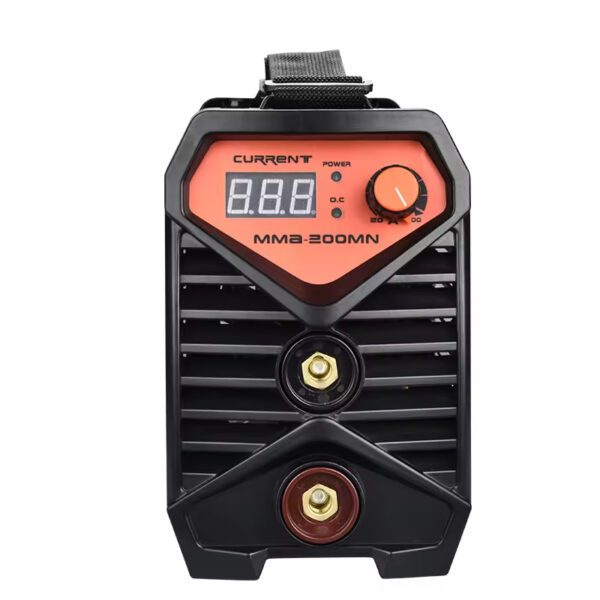

Arc Welding Equipment Portable DC Super ARC-200T/250T/315T Metal Inverter
Three big selling points:
Attractive design
Belt type
Thick input power cable
MOQ:500PCS
$28.00
Compare| Arc Welding Equipment Model | MMA-200B | MMA-250B |
| Type | IGBT 1 PCB | IGBT 1 PCB |
| AC Input Voltage(V) | 220V(110V can do) | 220V(110V can do) |
| Rated Input Power Capacity(KVA) | 5 | 5.7 |
| Input Frequency(Hz) | 50/60 | 50/60 |
| Non-load Voltage(V) | 68 | 68 |
| Output current range(A) | 20-200 | 20-250 |
| Rated Duty Cycle(%) | 60% | 60% |
| Efficiency(%) | 85% | 85% |
| Class of Insulation | F | F |
| Protection class of case | IP21 | IP21 |
| Electrode diameter(mm) | 1.6-3.2 | 1.6-3.2 |
| Quick joint Size | 10-25mm | 10-25mm |
| N.W./G.W.(kg) | 3/4.6 | 3.2/4.8 |
| Machine Size(LxWxH mm) | 290*130*190 | 290*130*190 |
| Package Dimension(LxWxH mm) | 345*210*250 color box+foam | 345*210*250 color box+foam |
| 360*215*255 honeycomb box | 360*215*255 honeycomb box | |
| Accessories | 1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual |
1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual |
Three big selling points:
Attractive design
Belt type
Thick input power cable
Based on 0 reviews
Be the first to review “Arc Welding Equipment Portable DC Super ARC-200T/250T/315T Metal Inverter”
Related products
-
-
Arc Welding Equipment & Accessories
Portable Small Mini MMA-300 MMA Arc Welding Equipment
Features:
1.Single board IGBT technology, energy-efficient and low noise.
2.Easy arc ignition, litter spatter and excellent welding performance.
3.Safety protection against over current, over voltage and over heat.
4.Small and light, but still powerful.
5.Suitable for welding all kinds of acid and basic electrodes.SKU: n/a -
Arc Welding Equipment & Accessories
Inverter MMA Argon Stick Arc Welding Machine TIG Stick Welder
1.Use powerful IGBT switches and advanced inverter control technology.
2.Use PWM control technology and constant (CC) output control,welding current can be exactly controlled.
3.MMA welding process method.special design of the circuit and structure of these welding power sources.
4.Excellent arc characteristics,good welding performance and little spatter.MOQ:5SETS
SKU: n/a -
Arc Welding Equipment & Accessories
Soldering Iron Arc Stick MMA Welding Machine Portable
Products Description
1. Small size: easy to carry, suitable for aerial work.
2. Strong function: instantaneous arc starting, strong thrust, good anti-sticking and arc starting performance.
3. Using IGBT inverter technology, the welding current is efficient, stable and lasting.
4. High-frequency transformer: saving energy consumption.
5. Industrial radiator: thickened design, good heat dissipation effect.
6. GB capacitor: long service life.
7. There is a button behind the welding machine: adjusting switch.SKU: n/a
