Hydraulic Gauges

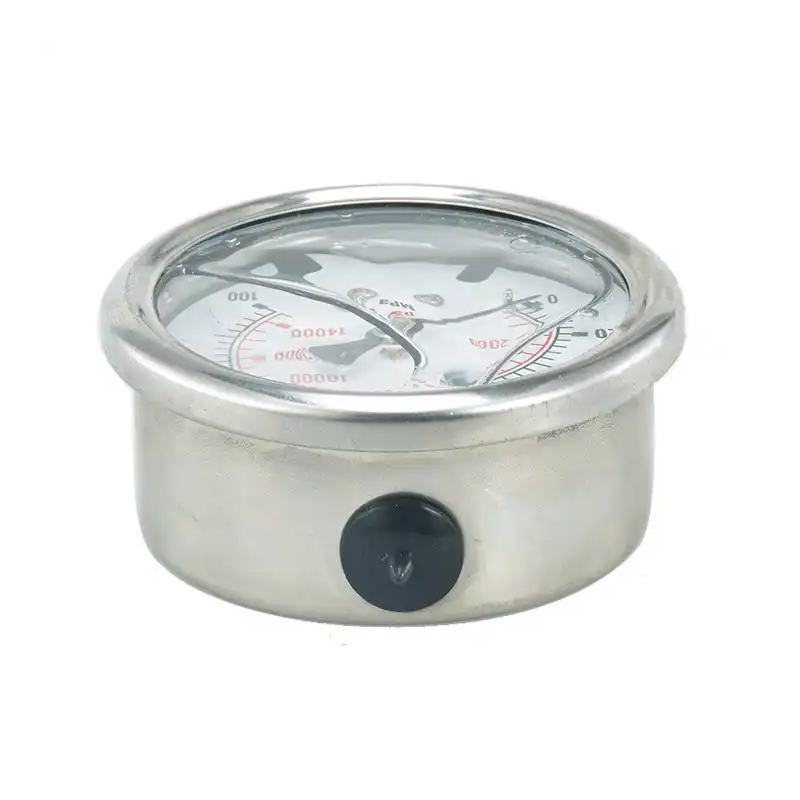

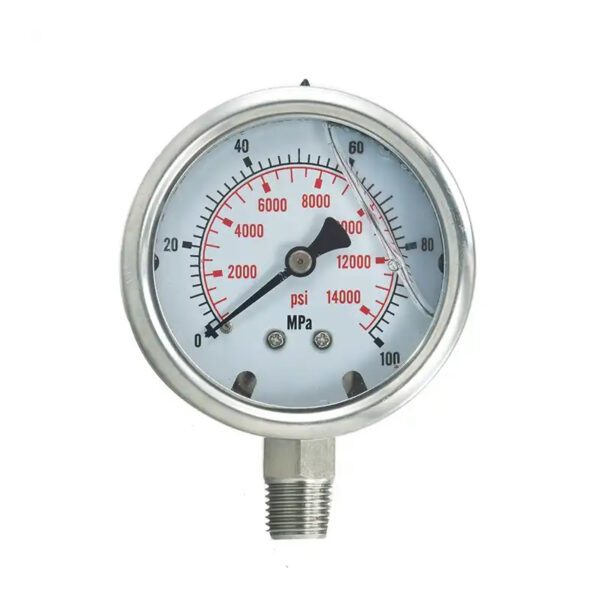

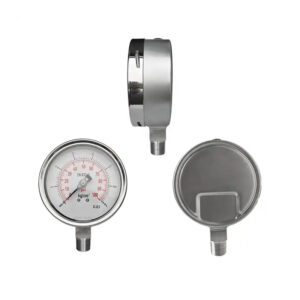

All Stainless Steel Bottom Connection Hydraulic Pressure Gauge Oil Pressure Gauges
Normal Size:
1.5″(40mm),2.0″(50mm),2.5″(63mm),
3″(75mm),4″(100mm),6″(150mm).
$4.00
Compare| Normal Size: | 1.5″(40mm),2.0″(50mm),2.5″(63mm),
3″(75mm),4″(100mm),6″(150mm). |
| Pressure Range: | 0-14000psi, 0-1bar |
| Accuracy: | ±1.6%,±2.5% |
| Operating temperature: | -45°C to +80°C |
| Case: | Brass |
| Bezel: | Brass |
| Bourdon tube: | Brass or Stainless steel |
| Connection: | Brass or Stainless steel |
| Movement: | Brass or Stainless steel |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Polycarbonate or Glass |
| Thread: | 1/8″,1/4″, 3/8″,1/2″; |
| PT(BSPT,ZG),BSP(G,PF),NPT etc. |
