A10 Pro/X7 Pro/S10 Pro Laser Engraver, 10W Laser Engraver, Laser Cutter,with 0.06×0.06mm Dual Compression Points for Wood and Metal, Acrylic

  • REAL 10W OPTICAL POWER: With the world’s first dual laser coupling technology,combine two laser beams into one spot. The compressed spot has higher power, higher cutting ability, faster speed, and better effects under the same electric power.The A10 Pro laser engraver for wood and metal achieves true 10W output power, narrowing the laser focus area to 0.06*0.08mm. With it’s high density laser, it can cut 0.8″ wood and 0.6″ dark acrylic.
  • Powerful Usability and Wide Compatibility: A10 Pro laser cutter and engraver is compatible with Windows, Mac OS and Linux systems. It can be operated using the ATOMSTACK mobile application. It is also equipped with an easy-to-operate 3.5-inch touch screen that supports offline engraving. You can transfer data via USB cable or TF card. It can engrave continuously 24×7, allowing your business to increase production.
  • Make your engraving more exquisite: A10 Pro laser engraving machine adopts the latest 32-bit core control motherboard. This machine offers greater processing power and faster engraving speed (10,000 mm/min) than other 10W machines. A 256-color gradient module is integrated to make your engraving more sharp and three-dimensional.
  • Ultimate Safety Design: Innovative coated filter glass ensures better visual penetration, prevents eye burns, and eliminates the possibility of acrylic becoming flammable. It is approved by Rheinland Laboratories for eye protection and safety. It is also equipped with a horizontal gyroscope and an emergency pause switch button, which can automatically pause or manually pause your engraving work in the event of an accident, ensuring the safety of the A10 Pro metal engraving machine to the greatest extent.
  • High-Precision Cutting and Engraving: Designed with an industrial-grade structure, the ATOMSTACK A10 Pro has an incredible machining accuracy of 0.01mm. 0.08*0.06mm ultra-fine compressed laser spot, whether it is engraving or cutting, ATOMSTACK A10 Pro always shows the finest details.

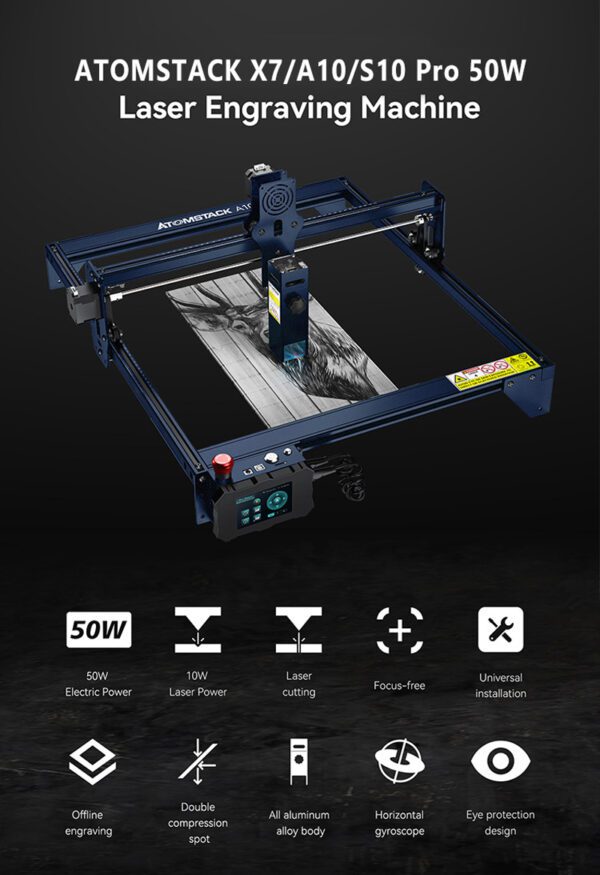

Model: ATOMSTACK X7Pro/A10 Pro/S10 Pro engraving machine (Laser Engraver)
Working area: 410*400mm
Engraving materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
electroplating painted metal, 304 mirror Stainless steel, glass, ceramics, cotton cloth, slate;
cutting materials: cardboard, non-woven fabric, wood, acrylic, some thin plastic plates, sponge;
laser power: 50W
laser output optical power: 10-11W
laser wavelength: 455±5nm
engraving accuracy : 0.01mm
Focusing method: Laser fixed focus, no focus
Laser protective cover: There is a protective cover on the laser to protect the user’s eyes, no need to wear additional protective glasses. At the same time prevent pets from robbing the laser point
Operation software: LaserGRBL, LightBurn, support Win XP/Win 7/Win 8/XP/Win 10 system Support
file format NC, BMP, JPG, PNG, DXF,
data transmission method: USB connection
Power supply: International Universal Standard Power Input: 100-240V AC, 50/60HZ Output: 12V 5A
Equipment Net Weight: 3.426kg
Package Weight: 5.072kg
Equipment Size: 570*600*270mm
Package Size: 620*345*130mm
Certification: CE FCC RoHS FDA PSE

Higher precision DIY laser engraving and cutting machine with true 10W optical power.

  • The best small industrial high power laser engraver and cutter for entrepreneurs, hobbyists, designers, artists, housewives and professionals.
  • Better technology (industrial-grade steel axle, tensioning wheel, timing belt, compression spot, etc.) makes the engraving more precise and the engraving works more perfect. With a human-centered design, you can enjoy your creations without distractions.
  • Good safety features: all parts are metal and coated with anti-reflective paint, so the laser cannot be accidentally reflected.
  • Quality After-sales: We provide 30 days no reason to return and 12 months free repair, replacement parts and technical support. Your concerns will be answered within 24 hours.

The higher the energy setting, the faster it can be set.

  • The above parameters are reference values,
  • Due to the different properties of the materials used,
  • Please adjust the parameter value according to the actual situation.

Independent terminal supports offline lettering

  • Configure the terminal control panel, support offline engraving, not limited by the computer, and perform engraving anytime, anywhere


Manual screw button height adjustment

  • It is more convenient and quick to adjust the laser height with the knob.


1000~1200℃ Sintering temperature

  • More different kinds of materials can be engraved than others.
  • It is dangerous to test the sintering temperature, please operate under the guidance of professionals.

More safety information reminders:

  • Please carefully review the installation steps and software installation steps in the user manual before installation.
  • If you encounter any problems when using the Laser Engraver, please feel free to ask us for help, we will reply you within 24 hours for a solution.
  • When operating the laser engraving machine, please install the laser protective cover. If not fitted, goggles are required.
  • Do not touch the laser transmitter with your hands, or your hands may be burned.
  • Please avoid hitting the machine strongly.
  • Children under 14 years of age should not use this product, children over 14 years of age require adult supervision.
  • The laser engraving machine cannot be directly applied to any specular reflective objects, which may injure the operator or burn the laser.
