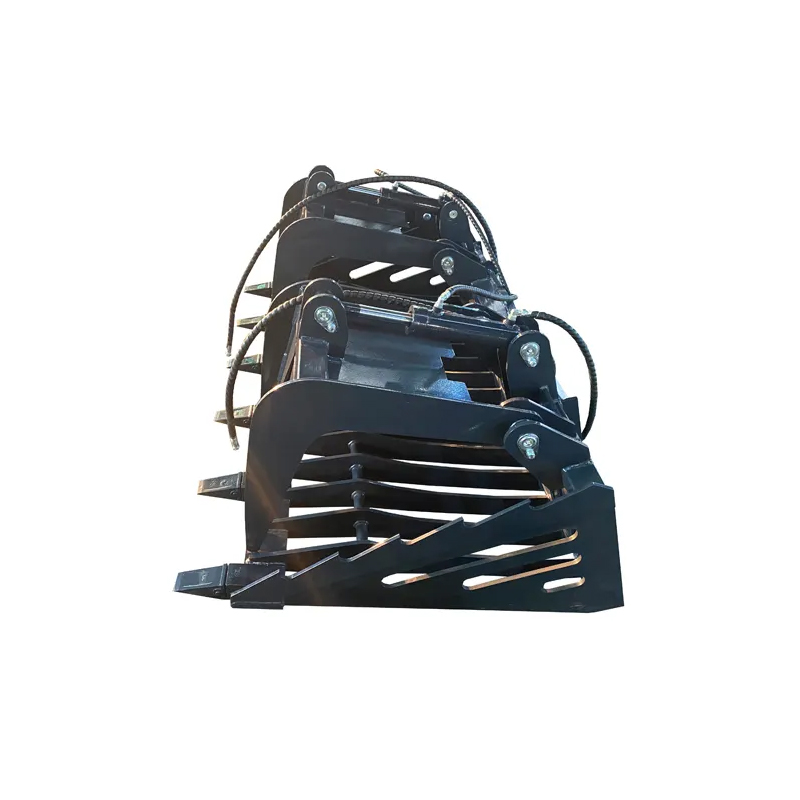

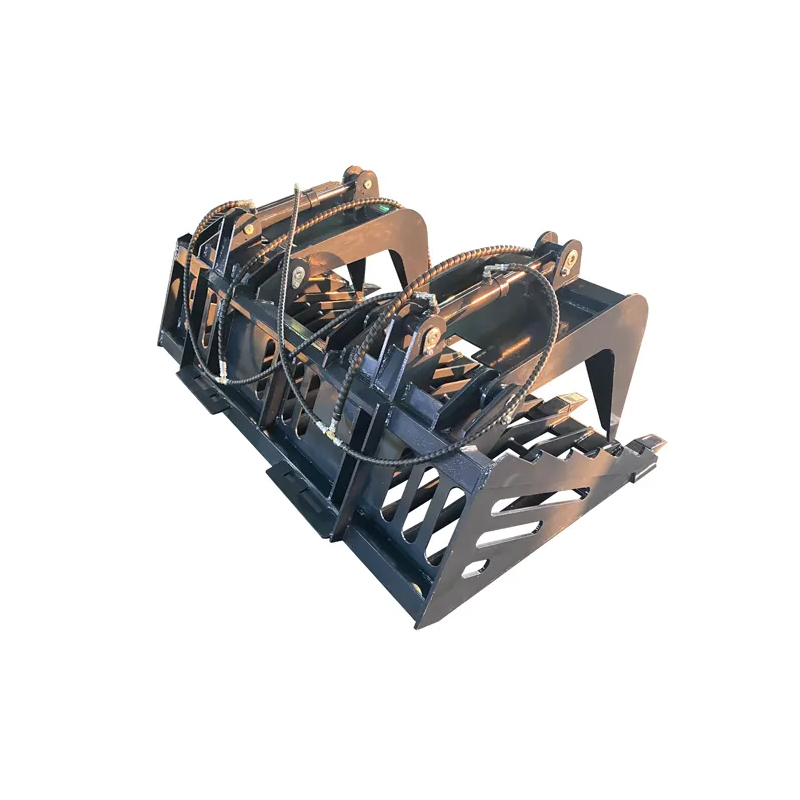

These high-quality Skid Steer Fine Grade Rock Grapple Rake are designed to easily screen rocks and debris. You can choose two different configurations of single or double 2.5″ bore x 8″ stroke hydraulic cylinders, both of which have the power to lift and transport almost any obstacle. You can also choose from three two configurations of 72 or 82 inches in width, and their maximum opening height is 45.3 inches, which allows them to effectively lift rocks, brushes and debris. In addition, the bucket includes a universal connector, and these grabs can be easily connected. Add one of these attachments to your collection to help you get the job done correctly.
Max Opening Height
|
45.3-in.
|
Overall Width
|
73-in./83-in.
|
Inside Width
|
72-in./82-in.
|
Overall Depth
|
51.5-in.
|
Inside Depth
|
38-in.
|
Spacing Between Tines
|
3-in.
|
Steel Thickness
|
0.5-in.
|
Cutting Edge
|
1-in.
|
Teeth
|
6-in.
|
Tooth Count
|
5-7
|
Material
|
Steel
|
Packaging
|
1900mmx1300mmx800mm
|
Product Weight
|
576 kg./617 kg.
|
– Connects to Skid Steers and Quick Tach Tractors
– Fine Grade tines are spaced 3-inches apart
– Open Tine Bottom for sifting debris
– Reinforced side cutters and cutting edge
– LW80 Replaceable teeth
– Frame is built with 3 x 3-inch steel tubing
– Single or Dual 2.5-in bore x 8-in stroke hydraulic cylinders
– Max opening height up to 45.3-in.
– Replacement Teeth Available
