540W 550W Risen Energy Solar Panel 700W In Kolkata For Risen Solar System MOQ 10000 Watt

Add to wishlist
Compare

RSM110-8-535M-555M

Mono PERC Module 110 CELL

Power Output Range 535-555Wp

Maximum System Voltage 150oVDC

Maximum Efficiency 21.2%

$3,800.00

Compare

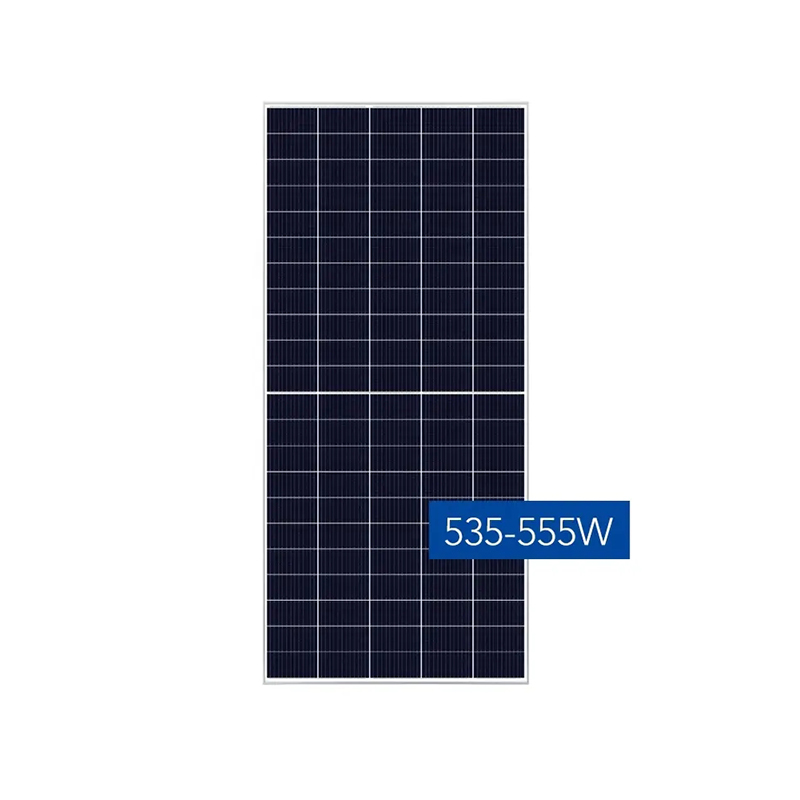

 Solar Panel RSM110-8-535M-555M
Mono PERC Module 110 CELL
Power Output Range 535-555Wp
Maximum System Voltage 150oVDC
Maximum Efficiency 21.2%

ELECTRICAL DATA (STC)
Model Number
RSM110-8-535M
RSM110-8-540M
RSM110-8-545M
RSM110-8-550M
RSM110-8-555M
Rated Power in Watts-Pmax(Wp)
535
540
545
550
555
Open Circuit Voltage-Voc(V)
37.58
37.78
38.02
38.24
38.46
Short Circuit Current-lsc(A)
18.13
18.18
18.23
18.28
18.33
Maximum Power Voltage-Vmpp(V)
31.26
31.46
31.66
31.86
32.06
Maximum Power Current-lmpp(A)
17.12
17.17
17.22
17.27
17.32
Module Efficiency (%)
20.5
20.7
20.9
21.0
21.2
STC: Irradiance 1000 W/m2, Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3.
Module Efficiency (%): Round-off to the nearest number
ELECTRICAL DATA (NMOT)
Model Number
RSM110-8-535M
RSM110-8-540M
RSM110-8-545M
RSM110-8-550M
RSM110-8-555M
Maximum Power-Pmax (Wp)
405.3
409.0
412.8
416.7
420.5
Open Circuit Voltage-Voc (V)
34.95
35.14
35.36
35.56
35.77
Short Circuit Current-lsc (A)
14.87
14.91
14.95
14.99
15.03
Maximum Power Voltage-Vmpp (V)
29.01
29.19
29.38
29.57
29.75
Maximum Power Current-lmpp (A)
13.97
14.01
14.05
14.09
14.13
NMOT: Irradiance at 800 W/m2, Ambient Temperature 20°C, Wind Speed 1 m/s.
