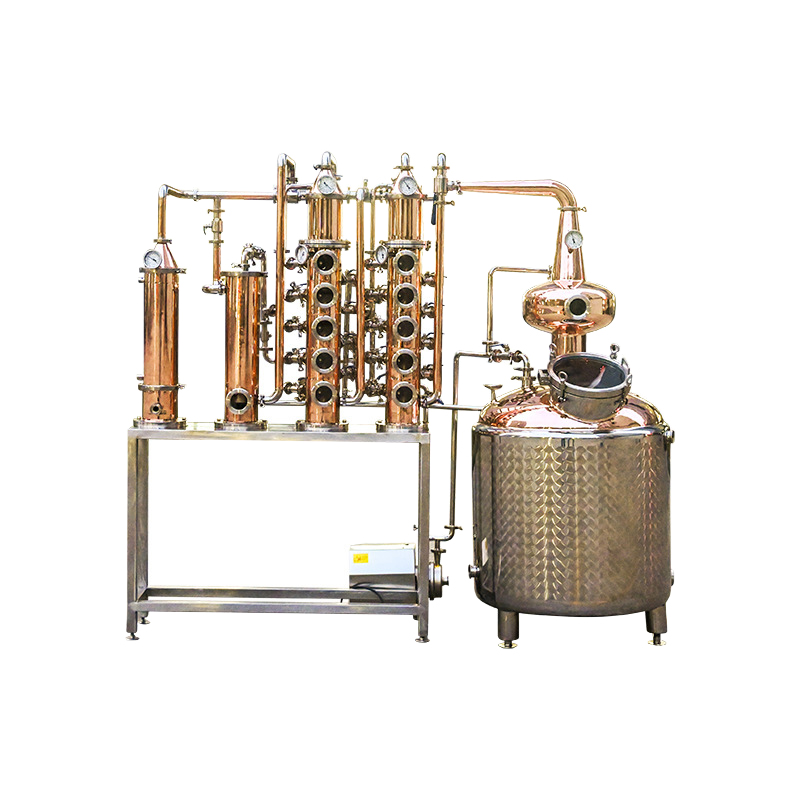

500L Red Copper Stainless Steel Wine Gin Whiskey Still Pot Multifunctional Distillery pot Distillation Equipment
Advantages of distillation equipment
A: Flanging welding technology is adopted at the welding position of distillation equipment to ensure no leakage of distillation equipment.
B: The distillation pot is divided into single layer, double layer and three layers. The three-layer distillation pot is jacketed for heating. The bottom and surrounding of the distillation pot are heated at the same time, which has high heating effect and energy-saving effect.
C: The split condenser and condenser are cooled by tubes. There are many tubes inside, with large heat exchange area and high cooling effect.
$46,700.00
Compare|
Output/ Brew
|
500L
|
800L
|
1000L
|
1500L
|
2000L
|
2500L
|
3000L
|
5000L
|
|
Brew/Week
|
2~6
|
|||||||
|
Output/Week
|
10~30HL
|
16~48HL
|
20~60HL
|
30~90HL
|
40~120HL
|
150~300HL
|
180~360HL
|
240~360HL
|
|
Area Request
|
>45㎡
|
>60㎡
|
>70㎡
|
>90㎡
|
>120㎡
|
>140㎡
|
>150㎡
|
>180㎡
|
|
Brew master
|
1
|
1
|
1~2
|
1~2
|
2~3
|
2~3
|
3~5
|
3~5
|
|
Material
|
Interior Shell: SUS304 TH=3mm; Exterior Shell:SUS304 TH=2mm /red copper
|
|||||||
|
Heating
|
Electric/Steam/Direct fire for optional
|
|||||||
|
Voltage
|
3 phase/380(220, 415,440…)v/50 (60)Hz
|
|||||||
|
Model
|
Descriptions
|
Quantity
|
Comment / note
|
|
500L Still Pot
|
1.Volume: total volume 800L, working volume 500L 2.Inner pot:TP2 red copper, thickness 3mm
3.Dished head:TP2 red copper，thickness 3mm
4.Outer shell:SUS304，fish wave plate, thickness：2mm
5.Jacketed&50mm insulated
6.Heating method:2*8KW, 415V / 50hz / 3ph electric heating rods)
7.Accessories:φ250 man hole, level gauge, pressure relief valve, thermometer, sight light,etc.
|
1
|
Equipment build size LWH:1500*1100*2200mm Total weight：400KG
|
|
Copper head
|
1.Material：TP2 red copper, thickness：3mm
|
1
|
|
|
Alcohol pipeline
|
1.Material：TP2 red copper, thickness：1.5mm
|
1
|
|
|
Still Column
|
1.Column:TP2 red copper,thickness:3mm 2.size:Φ152
3.4 bubble trays with 5 sight glasses
4.Attached reflux device, thermometer
|
1
|
|
|
Dephlegmator
|
1.Dephlegmator:TP2 red copper,thickness:3mm 2.size:Φ152
3.With cooling water inlet and outlet,thermometer
|
1
|
|
|
Condenser
|
1.Condenser:SUS304,thickness:3mm 2.size:Φ152
3.With cooling water inlet and outlet,thermometer
|
1
|
|
|
Wine mouth
|
1.Material:TP2 red copper with glass
|
1
|
|
|
Gin basket
|
1.Condenser:TP2 red copper,thickness:3mm 2.size:Φ133
|
1
|
|
|
Control box
|
Control electric heating rod switch, PT100
|
1
|
