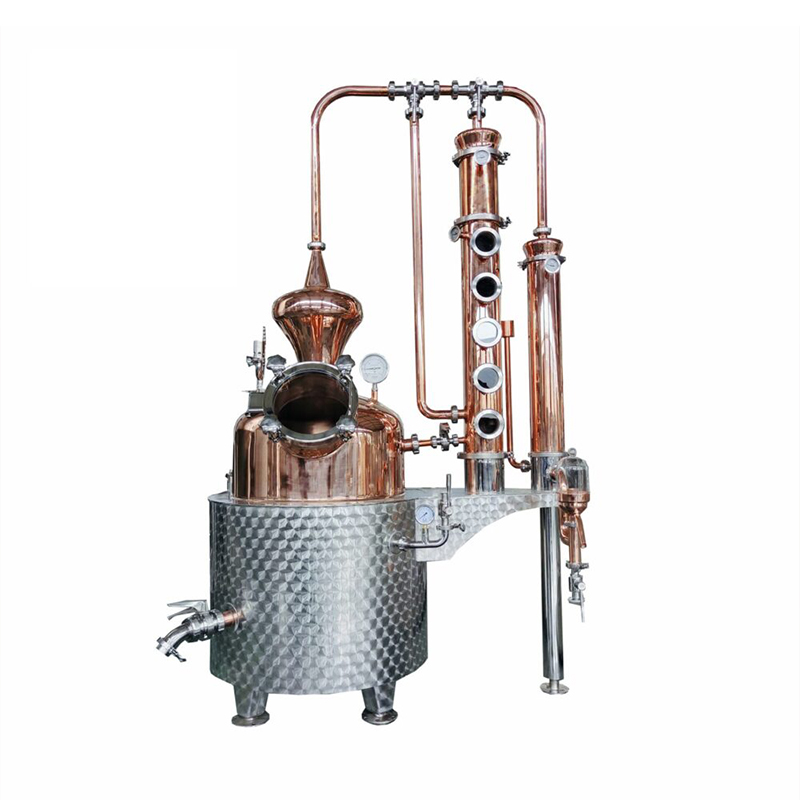

Copper Distilling Equipment 300L Without Alcohol Storage Tank 4 Plates 5 Sight Glasses Rum Whiskey Distiller Column Still
- The 300l distillery equipment consists of a pot made of copper, glass, and copper columns combined, a partial condenser, and a condenser, which are heated using electricity.
- Tower column: 5 sight glasses and 4 layers of trays
- The distillery equipment is a single unit designed to meet and exceed the needs of start-up distilleries and can be used as advanced test distillery equipment for mature distilleries of whisky, gin, fruit brandy, rum, wine spirits.
- We provides a complete distillation process system including mash tun, fermentation tank, spirit storage tanks, wine tanks, etc.
$39,000.00
CompareSpecifications of the 300L Copper Distilling Equipment
| Material | SUS304 and Copper CU12200 |
| Main Structure | Kettle+ Helmet+Distilling Column Dephlegmator Condenser Column Base+ parrot outlet |
| Heating Mode | Electric Heating |
| Structure | Jacket with PU insulation |
| Function | suitable for making rum, whiskey |
Still Pot
- Actual volume 375L, Working volume 300L
- Inner pot: red copper T2, thickness: 3m
- Dished head: red copper T2, thickness: 3m
- Jacketed: SUS304, thickness: 4mm
- Insulated: 50mm, PU
- Stirring motor: explosion-proof mixer 0.37KW/46rpm(EX)
- Outer shell: SUS304, thickness: 2mm
- Temperature control: PT100
- Heating method: electric heating
- With manhole, CIP cleaning ball, safety valve, sight light, steam trap, etc.

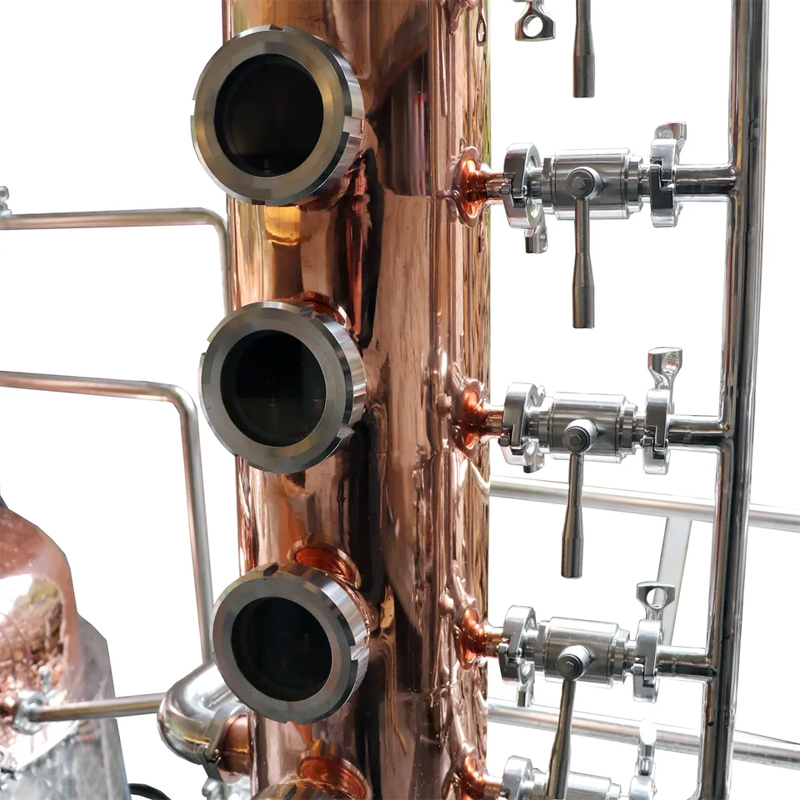

Still Column
- Material: red copper T2, thickness: 3mm
- Connection method: 8″ tri-clamp
- Red copper tubes, one column with 4 bubble trays, each tray has bubble caps, and with CIP cleaning balls, Drain valve, thermometer
Based on 0 reviews
Be the first to review “Copper Distilling Equipment 300L Without Alcohol Storage Tank 4 Plates 5 Sight Glasses Rum Whiskey Distiller Column Still”
Related products
-
Distillery Equipment, Distillery System
1000Liter Distillery Equipment Rum Whisky Still Alcohol Distillation Machinery
Distillery Equipment, Distillery System1000Liter Distillery Equipment Rum Whisky Still Alcohol Distillation Machinery
Hybrid pot stills can be built either of copper or stainless steel. When built from stainless steel, the bottom and side shell of the pot are made of stainless, while the top of the pot is built from copper and welded together.
The Hybrid pot still can be build with various head designs, depending on the spirits being produced. The tray quntity in the rectification column is dependent on the desired ABV of the final distillate.
SKU: n/a -
Distillery Equipment, Distillery System
300L Copper Still Turnkey Batch Alcohol Distilling Systems Electric Heating Distillation Equipment Vodka Towers Distiller
Distillery Equipment, Distillery System300L Copper Still Turnkey Batch Alcohol Distilling Systems Electric Heating Distillation Equipment Vodka Towers Distiller
- The addition of a rectification column can allow the distiller to produce distillate with an abv 92%.
- The more trays that are included in a column, the higher the abv that can be achieved.
- Each tray is in itself, a single disdtillation.
- Stills pot can be built either of copper or stainless steel.
- The still can be build with various head designs, depending on the spirits being produced.
- The condenser, which cools the vapour to liquid, is of a shell and tube design and can be built from either copper or stainless stee.
SKU: n/a -
Distillery Equipment, Distillery System
Hot Sale 500L High Tower Distiller Liquor Brewing Equipment Ace spirit Distillation machine Vodka distillery equipment
Distillery Equipment, Distillery SystemHot Sale 500L High Tower Distiller Liquor Brewing Equipment Ace spirit Distillation machine Vodka distillery equipment
Our Factory Make Distillation Equipment,Beer Brewing Equipment Etc.
Export Equipment Capacity:200-5000L
Beer Brewing Equipment:Brew House, Mash Tun, Fermenter Tank, Beer Bright Tank, Water Tank etc.
Other Equipment:Storage Tank,CIP Cleaning Machine,other stainless steel customized Products.
Distillation Equipment:Include whiksy/Rum/Brandy/Gin/Vodka/Multi-spirit stills;Essential Oil DistillerSKU: n/a -
Distillery Equipment, Distillery System
1000L Commercial Distillery Equipment Still Gin Distillation Machine
Distillery Equipment, Distillery System1000L Commercial Distillery Equipment Still Gin Distillation Machine
Commercial Distillery Equipment Components:
Still pot
Helmet
Distillation columns(optional)
Dephlegmator
Gin basket
Condenser
Parrot out mouth
Storage tank(Head heart tail)
Frame(table or tank)
CIP cleaning system
Electric control box
Steam generator FOR Steam heating.SKU: n/a
