50-70 pcs/min High-Speed Cosmetic Bottle Cap Capping Machine

Bottle Cap Capping Machine Product Introduction

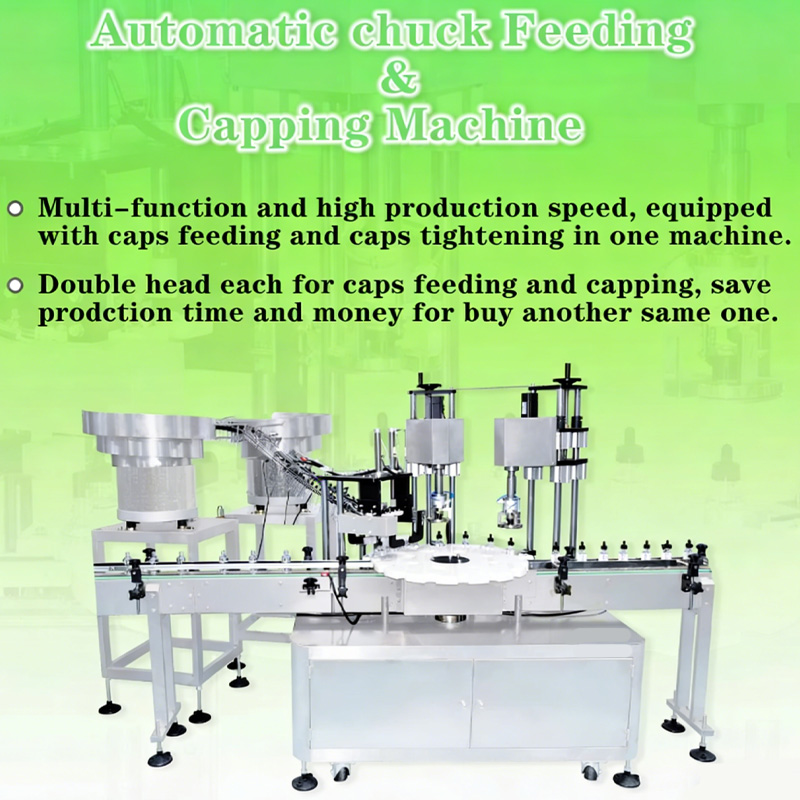

The 50-70 pcs/min high-speed cosmetic bottle cap capping machine is designed for the precise and efficient sealing of cosmetic bottles, including essential oils, serums, and skincare products. It incorporates a vibration cap sorter, elevator feeding system, and servo-driven screw capping to ensure uniform torque and tight sealing. The machine integrates seamlessly with filling lines, offering automated bottle feeding and capping, reducing labor and improving production efficiency. Built with 304 stainless steel and a user-friendly touch screen interface, it is suitable for cosmetic factories, laboratories, and contract filling facilities aiming for high-quality, high-speed capping operations.

Working Principle：

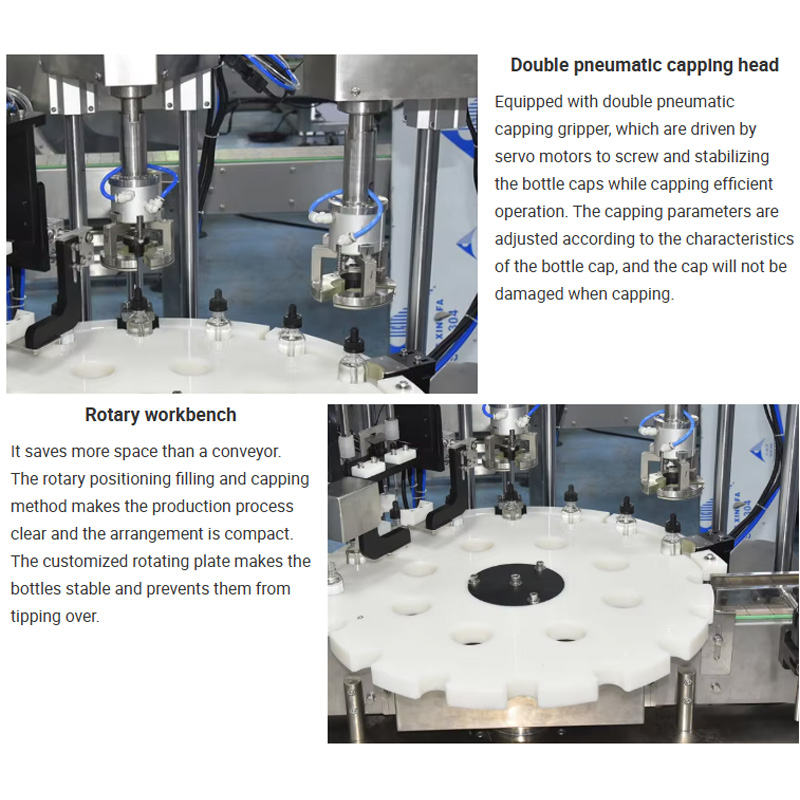

Bottles are manually or automatically fed onto the conveyor, then positioned under the cap feeder. Caps are sorted via vibration plate and elevated to align with bottles. A servo motor-driven screw capping head grips each cap, rotates it to secure the bottle, and applies uniform torque. The PLC touchscreen monitors speed, torque, and alignment, ensuring consistent sealing quality throughout high-speed operation.



Technical Specifications：

Cap feeding way	Vibrating plate
Capping way	Pneumatic double-head capping
Capacity	50–70 BPM (bottles per minute)
Material	304 SUS (Stainless Steel)
Program control	PLC + Touch screen
Conveyor	Share with filling machine or separate
Conveyor size	82 mm wide POM chain belt, 750 mm ±25 mm above ground, adjustable speed
Dimension	2500 × 2300 × 1700 mm (L×W×H)
Power	1.5 kW
Air pressure	0.6–0.8 MPa

Main features：

• High-speed operation, 50-70 pcs/min, suitable for small to medium-scale production lines.
• Servo motor-driven screw capping ensures consistent torque, tight seal, and prevents bottle deformation.

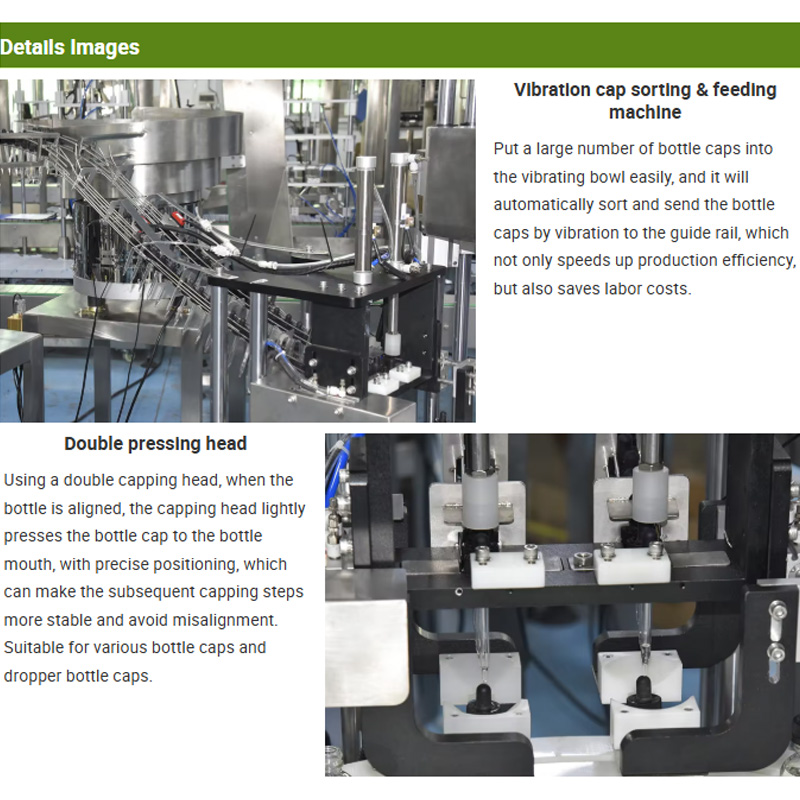

• Vibration cap sorting and elevator feeding system allow precise alignment for various cap sizes.
• 304 stainless steel construction, corrosion-resistant, easy to clean, suitable for cosmetic hygiene standards.
• PLC touchscreen control enables programmable parameters, speed adjustment, and automated monitoring.

Application Scenarios：

• Essential oil bottle production lines for small and medium cosmetic factories.
• Skincare and serum bottles filling and packaging facilities.
• High-speed cosmetic production for facial oils, lotions, and perfumes.
• Laboratories or R&D facilities producing small batches of cosmetic products.
• Contract filling plants handling multiple bottle types and cap designs.
• Automated production lines for plastic, glass, or dropper bottles.
• High hygiene environments requiring stainless steel and clean capping process.

FAQ

• Q: What bottle types are compatible?
  A: Suitable for plastic, glass, and dropper bottles, including cosmetic, essential oil, and serum bottles.
• Q: What is the capping speed?
  A: 50-70 pcs per minute, adjustable depending on bottle and cap size.
• Q: How is the cap fed into the machine?
  A: Via vibration cap sorter and elevator feeding system for precise alignment.
• Q: Can it integrate with filling lines?
  A: Yes, it can synchronize with upstream filling machines for automated production.
• Q: What type of control system is used?
  A: PLC touchscreen control with easy operation and parameter adjustment.
