5–25 cartons/min Smart Protective Packaging Cartoning Machine

Protective Packaging Cartoning Machine Product Introduction

The 5–25 Cartons/Min Smart Protective Packaging Cartoning Machine is a versatile solution for protective packaging lines requiring precision and speed. Suitable for fragile, heavy, or sensitive items such as electronics, glassware, cosmetics, medical supplies, and delicate consumer products.

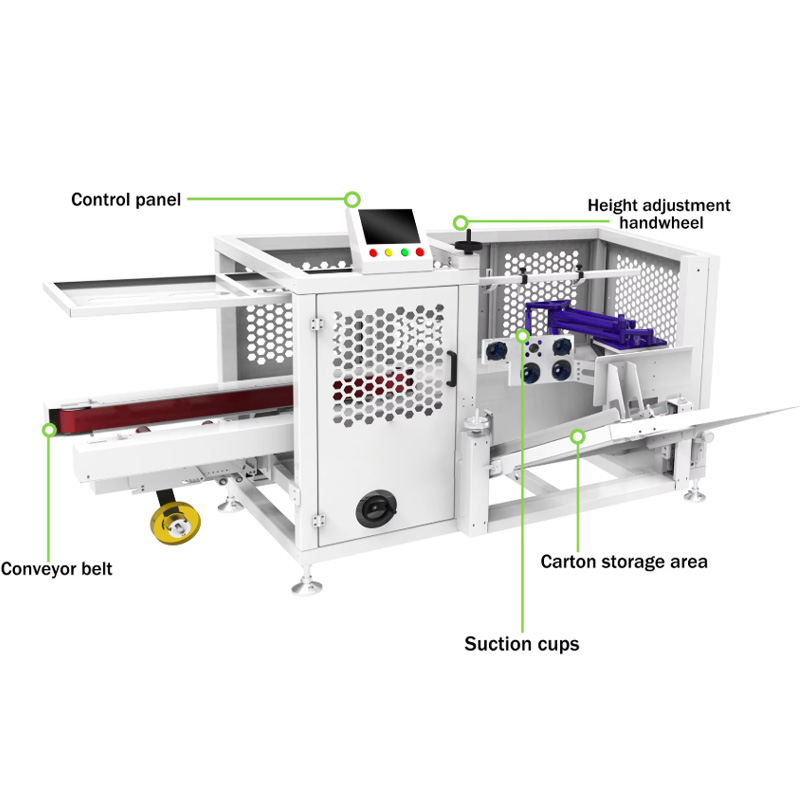

This machine features automatic carton forming, product insertion, and sealing, ensuring high reliability and consistent quality. The intelligent PLC control system allows easy adjustment of carton size, sealing parameters, and production speed. Made of durable stainless steel and equipped with safety sensors, it ensures both operator safety and product protection. Compact and modular, it integrates seamlessly into automated production lines for fully automated protective packaging.

Working Principle：

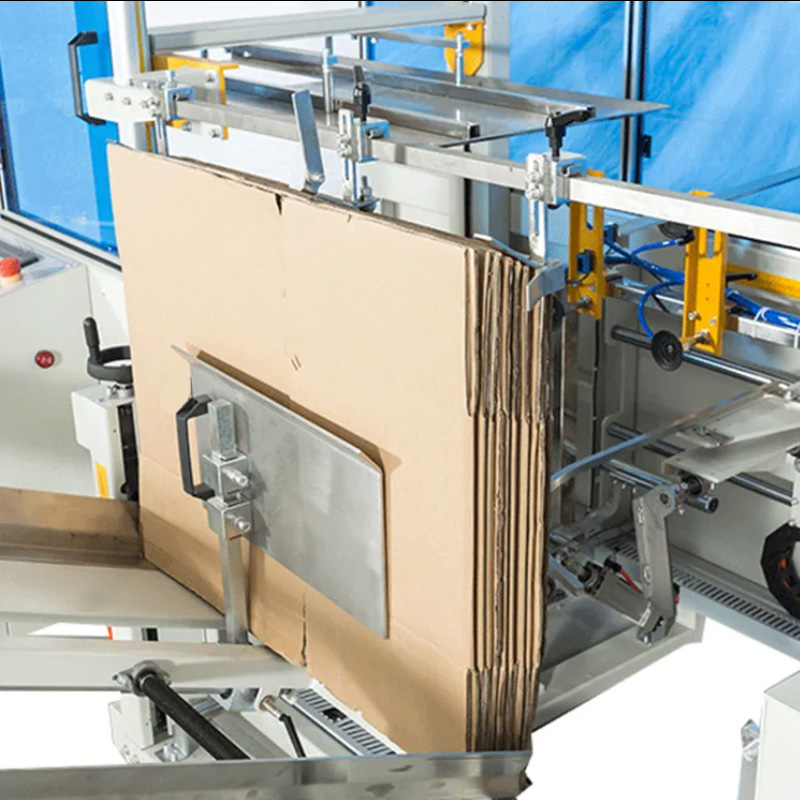

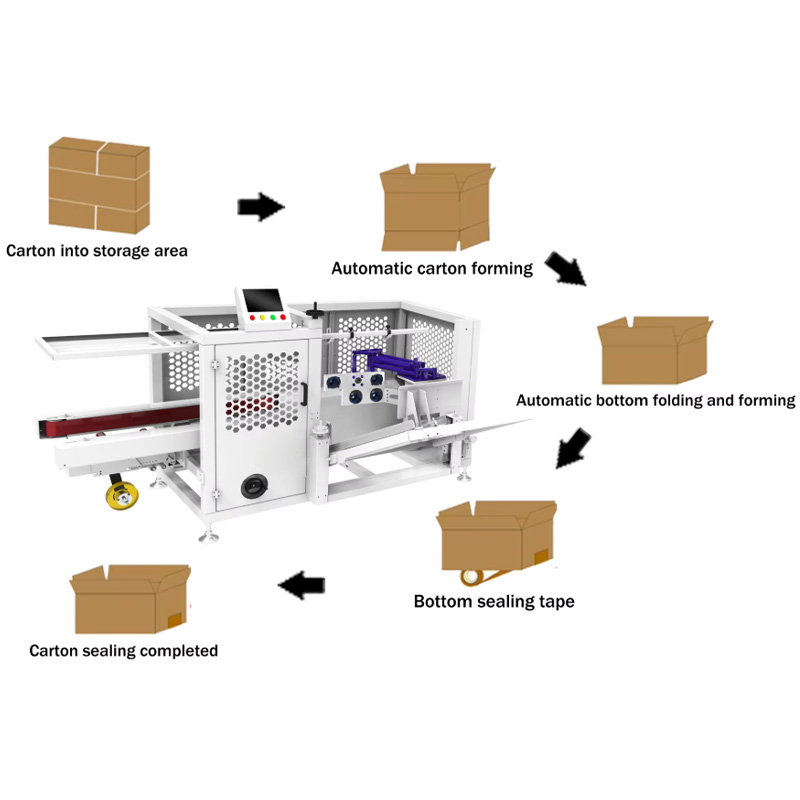

The machine automatically feeds carton blanks into the forming station, where each carton is erected and positioned. Products are then inserted into the cartons using precise mechanical arms or conveyors. Top and side flaps are folded and sealed using hot-melt adhesive or mechanical locking. PLC sensors monitor carton positioning, sealing quality, and production speed to ensure consistent packaging of delicate products.

Technical Specifications：

Speed	5–25 cartons/min (Depending on Box Size and Type)
Box Size Range	Length 145–400 mm, Width 85–350 mm, Height 150–350 mm
Rated Power	2.1 kW
Air Pressure	0.6 MPa
Machine Weight	550 kg
Overall Dimensions (L × W × H)	2400 × 1900 × 1400 mm
Power Supply	220 V, 50 Hz
Adhesive Tape Width	≤ 48 mm

Main features：

• High-speed operation: 5–25 cartons per minute, improving line efficiency.

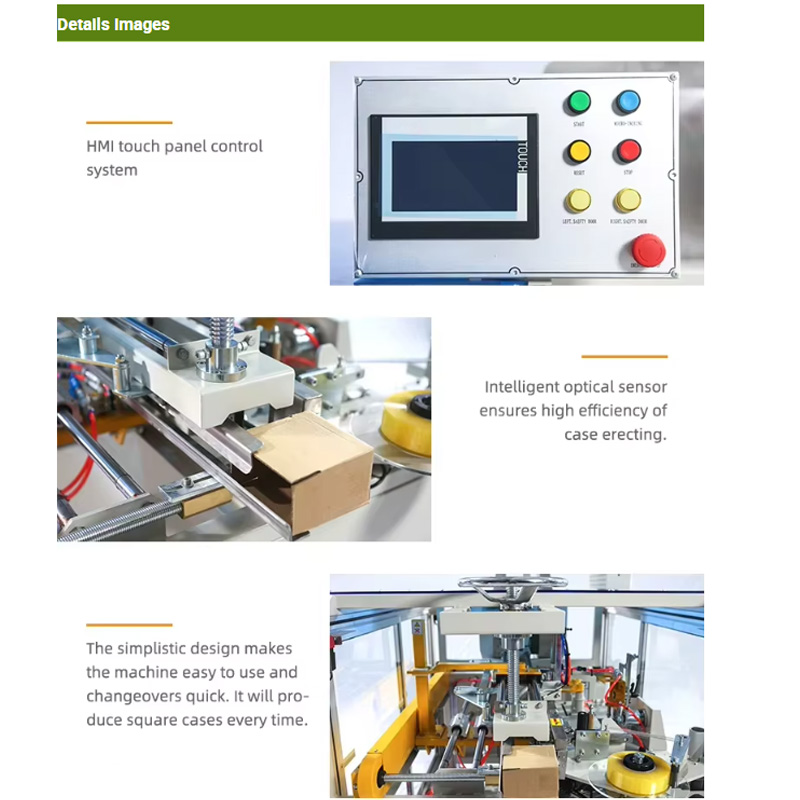

• Smart PLC control with touch screen for easy adjustment of carton size, sealing temperature, and speed.
• Automatic carton forming, product insertion, and sealing ensures consistent quality.
• Durable stainless steel construction with safety sensors for operator protection.
• Modular design integrates easily into existing protective packaging lines.

Application Scenarios：

• Protective packaging of fragile electronics and small appliances.
• Secure packaging for glass bottles and jars.
• Cosmetics and personal care product packaging.
• Medical and laboratory equipment packaging.
• High-value consumer products requiring precise and safe packaging.

FAQ

• What types of products can this machine handle?
  Fragile items, electronics, glassware, cosmetics, medical supplies, and high-value consumer products.
• Is it fully automatic?
  Yes, from carton forming to product insertion and sealing.
• What is the production speed?
  5–25 cartons per minute, depending on product size and carton dimensions.
• Can I adjust the carton size?
  Yes, the PLC touchscreen allows quick adjustment of carton length, width, and height.
• What type of sealing does it use?
  Hot-melt adhesive or mechanical locking, depending on product requirements.
