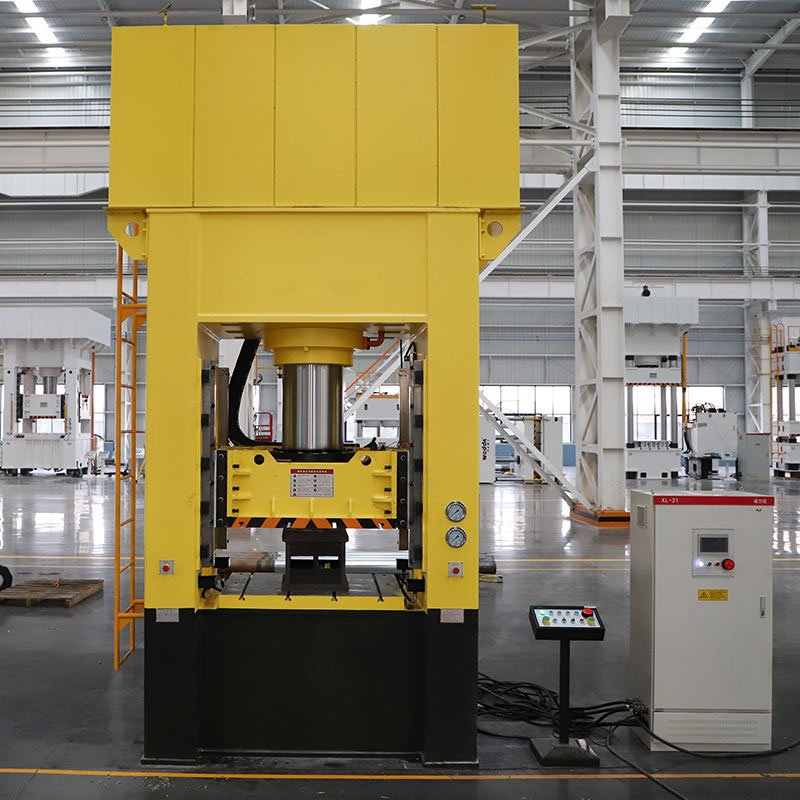

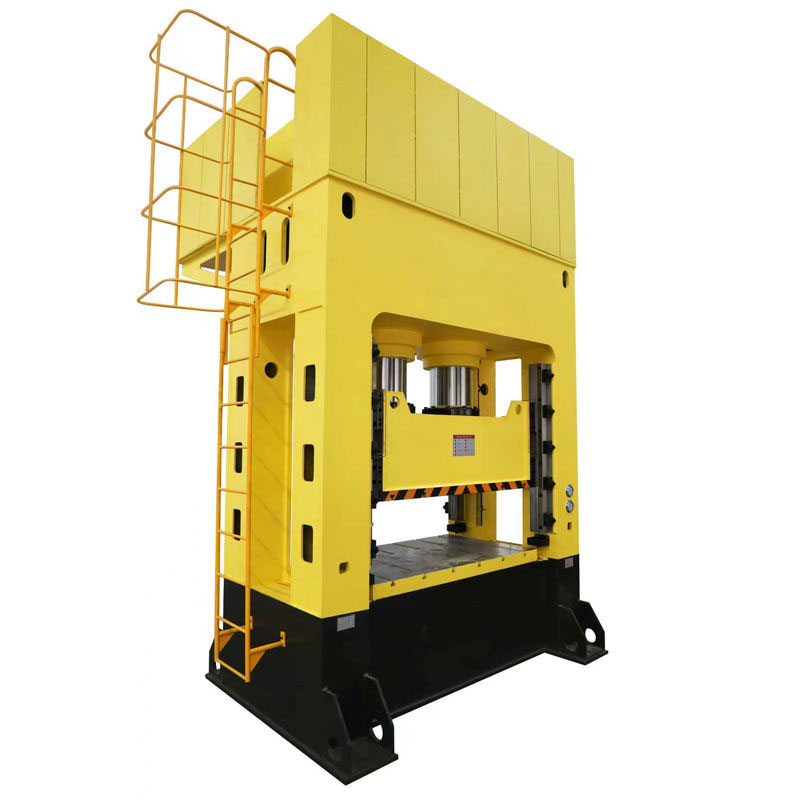

400 Ton H Frame Hydraulic Press with Energy-Saving Control
The 400-ton hydraulic press is a versatile machine tool for stamping, forming, deep drawing, and metal sheet processing. It also handles non-metallic materials such as powder metallurgy and ceramics. With adjustable working pressure and stroke, it supports precise and efficient operations. Suitable for industrial applications, it comes in various structural types including four-column, frame, single-arm, and gantry designs, allowing users to select the optimal press configuration for specific manufacturing and forming requirements.
Compare
Product Description of H Frame Hydraulic Press
400-ton hydraulic press designed for metal stamping, forming, and deep drawing, as well as non-metallic materials like powder metallurgy and ceramics. Adjustable pressure and stroke ensure precise, efficient operation. Available in multiple structural types, including four-column, frame, single-arm, and gantry, this press meets diverse industrial forming and manufacturing needs with flexibility and reliability.
Product Parameter Table
| Maximum liquid pressure (Mpa) | 25 |
| Slider stroke (mm) | 800 |
| Maximum opening height (mm) | 1250 |
| Table size (mm) | 1260*1200 |
| Down speed of empty range (mm / S) | 100 |
| Working speed (mm / S) | 6-15 |
| Return speed (mm / S) | 80 |
| Motor power( kw) | 22 |
| Eject force (t) | 100 |
| Eject stroke (mm) | 300 |
Main features
-
Reliable Hydraulic Control: Cartridge valve integrated system ensures high flow, low internal leakage, and long service life, reducing pipes and leakage points.
-
Flexible Operation Modes: Centralized button control with adjustment and semi-automatic modes for directional or fixed pressure operation.
-
High Precision Guide Rails: Four-corner and eight-sided guide rails offer accurate guidance, strong load capacity, and centralized lubrication.
-

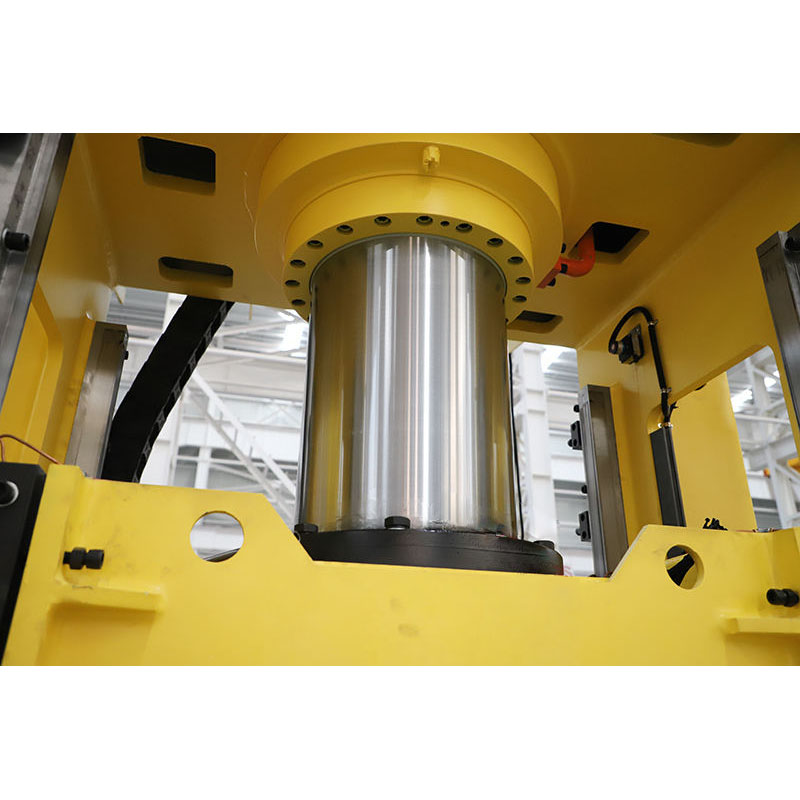

Durable Cylinder Seals: New oil cylinder sealing elements provide high reliability and extended service life.
-
Fast and Efficient Slider: Optimized slider design delivers high-speed movement and improved work efficiency.
Application scenarios
-
Metal Sheet Forming: Stamping, deep drawing, bending, flanging, and pressing of steel and aluminum sheets.
-
Non-Metal & Composite Processing: Pressing and forming powder metallurgy components, ceramics, and thermoset plastics.
-
Industrial Manufacturing: Automotive parts, hardware components, and heavy machinery fabrication.
-
Precision Forming: Accurate pressing and forming operations requiring high guide rail precision and controlled pressure.
-
High-Efficiency Production Lines: Suitable for semi-automatic or fully automated processes in modern industrial workshops.
Contact us to get your quotation now.
