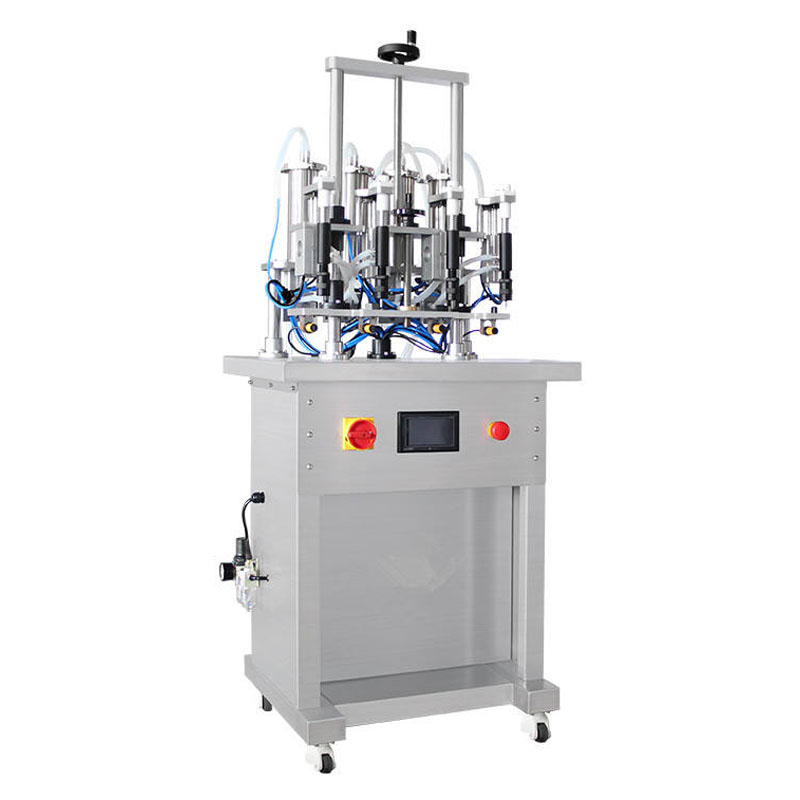

4 Heads Perfume Filling Machine for Liquid and Cosmetic Bottles

Product introduction of Perfume Filling Machine

The perfume filling machine is an automatic liquid filling device designed for small-caliber glass, plastic, and metal bottles, with a vacuum negative pressure and self-suction system. It solves inconsistent dosing, spillage, and inefficiency in small-bottle liquid production, ensuring precise filling and hygienic operation. The machine is suitable for cosmetic, chemical, food, and light industry manufacturers, supporting small-scale or industrial production. With a storage tank, computer monitoring, and sensor-controlled automatic filling, it improves production accuracy and efficiency while preventing liquid overflow and maintaining a clean working environment.

Working Principle

The perfume filling machine uses vacuum negative pressure to draw liquid from a storage tank into the filling head. Bottles are detected by sensors, which trigger the filling head to descend automatically. The self-suction design ensures that liquid fills small-caliber containers without overflowing. PLC and computer monitoring systems control the filling volume, speed, and timing. The filling head can adapt to different bottle sizes and liquid viscosities, maintaining stable, accurate, and hygienic operation suitable for perfumes, cosmetics, chemical solutions, and food liquids.

Product Parameter Table

Bottle height	≤250 mm
Bottle max diameter	≤ 20 mm
Mini diameter	≥ 4.5 mm
Distance height to the mouth	26-50 mm
Size	660×470×1330 mm
Temperature of condition	(0-30)℃
Electric power	3AC 38 V
Vacuum pump	XD-020( anti-explosion:2X-4A)
Air Absorb speed	5.5(anti-explosion 4)L/second
Electric powder	0.75 kW

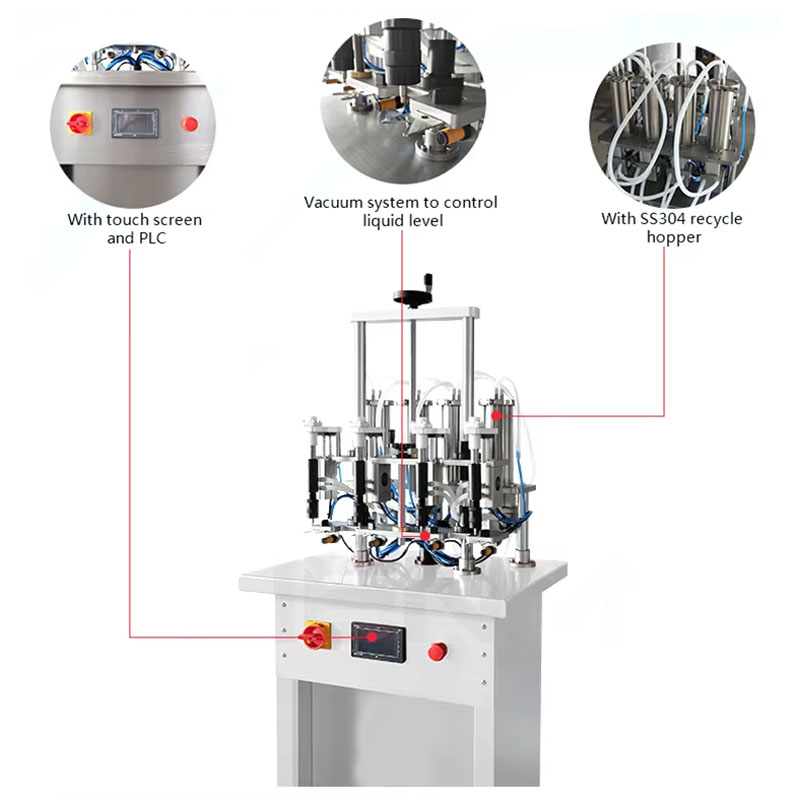

Main Features

1. Sensor-controlled automatic filling ensures bottles are detected and filled accurately each cycle.

2. Vacuum negative pressure system prevents liquid overflow and maintains hygienic operation.

3. Self-suction design allows filling of small-caliber glass, plastic, or metal containers.

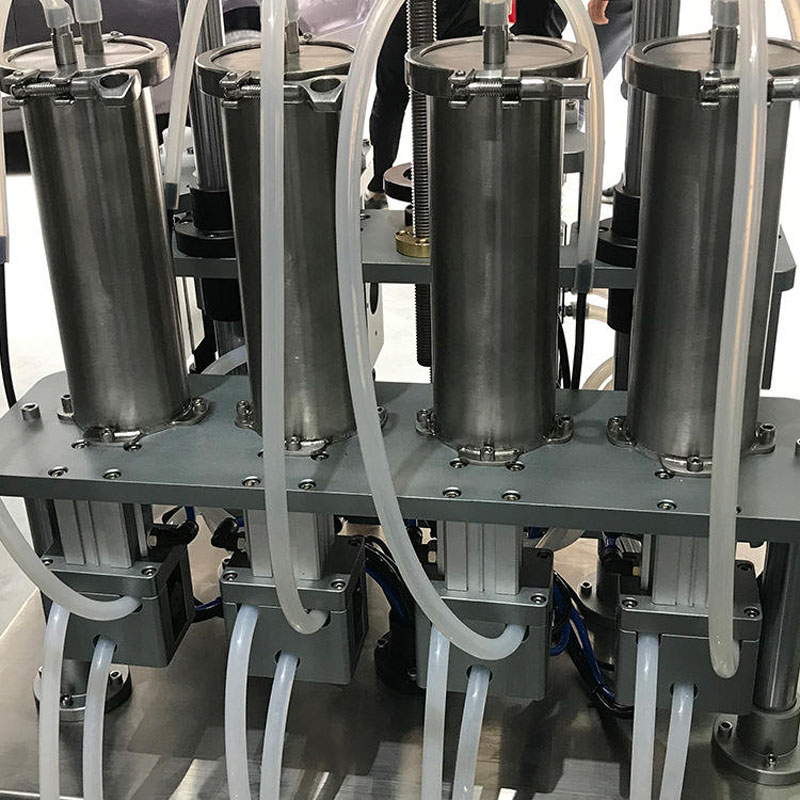

4. Storage tank and computer monitoring system enable stable production and precise dosing.

5. Adjustable filling parameters accommodate different liquid viscosities and container types.

6. Stainless steel construction ensures corrosion resistance, easy cleaning, and long-term durability.

Application Scenarios

• Filling of perfume, essential oils, and cosmetic liquids in glass and plastic bottles.

• Bottling oral liquids, chemical solutions, and light industry products requiring small-caliber containers.

• Automatic filling for food and beverage products with vacuum-controlled dosing.

• Cosmetic and fragrance production lines needing hygienic, precise, and efficient liquid filling.

• Small-scale or industrial manufacturers seeking low-maintenance and high-accuracy automatic filling solutions.

FAQ

Q1: What type of containers can this machine fill?
A1: It can fill small-caliber glass, plastic, and metal bottles with liquids or perfumes.

Q2: What industries is this machine suitable for?
A2: Cosmetic, chemical, food, and light industry manufacturers can use this machine.

Q3: How does it prevent liquid overflow?
A3: Using vacuum negative pressure and self-suction, the liquid surface expansion exceeds hydrostatic pressure.

Q4: Is it fully automatic?
A4: Yes, bottles are detected by sensors and filled automatically, with computer monitoring.

Q5: How is dosing accuracy ensured?
A5: Sensor induction, self-suction technology, and adjustable filling parameters maintain precise volume control.
