The semi-automatic gear pump filling machine delivers high-precision liquid filling for beverages, oils, chemicals, and pesticides. Its stainless steel construction ensures hygienic operation, while the anti-drip filling heads, large hopper, and adjustable nozzle positions allow versatile applications. Equipped with Taiwan PLC and touch screen interface, along with imported components from FESTO and Sick, the machine offers stable performance, easy operation, and minimal maintenance for small-scale and industrial liquid production environments.

Compare

Product introduction of Gear Pump Filling Machine

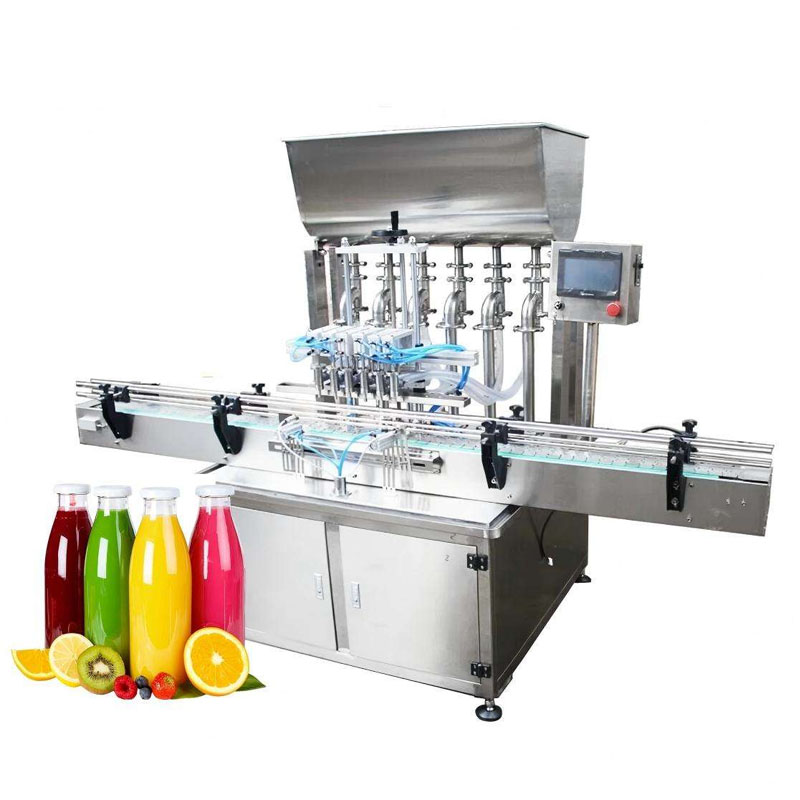

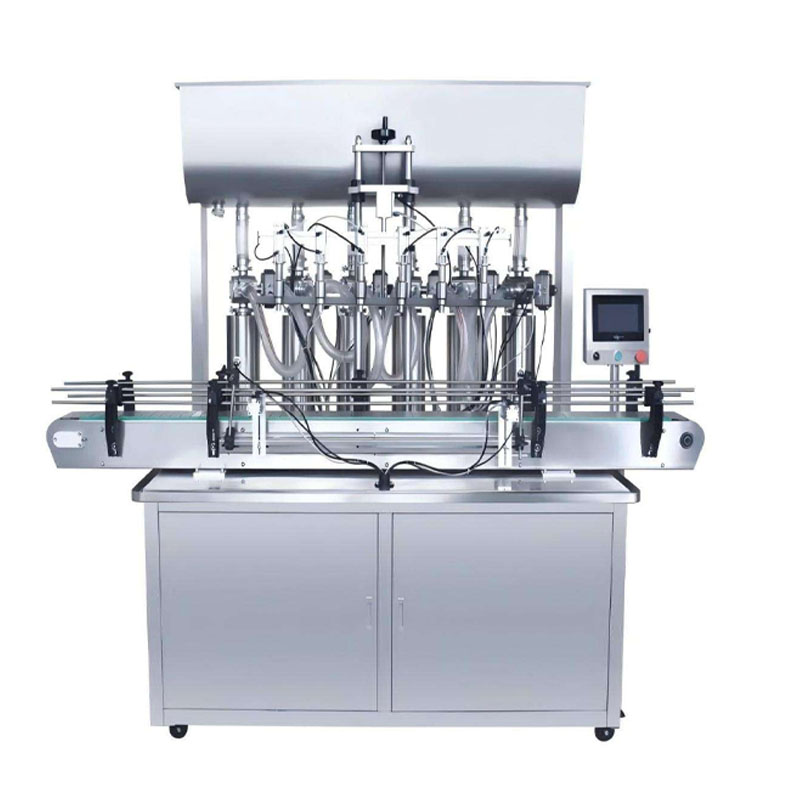

The gear pump filling machine is a semi-automatic liquid filling device with a capacity of 10–60 bottles per minute, constructed from 304 stainless steel (customizable to 316 stainless steel) and an all-stainless steel frame. It solves the problem of inconsistent dosing and waste in liquid production, supporting high-precision filling of beverages, oils, pesticides, and other liquids. The machine is suitable for food, chemical, daily chemical, and industrial manufacturers, providing hygienic, easy-to-clean, and low-maintenance operation. Adjustable anti-drip filling heads and a large hopper ensure efficient, accurate, and flexible production for various bottle types.

Product Parameter Table

Power 1000 W
Power supply AC220/110 V,50/60 Hz
Air pressure 0.5-0.7 MPa
Speed 10-60 bottles/min(depend on material)
Accuracy ±1%
Number of machine heads 2/4/6/8/10 heads (customizable)
Filling range 10-100 ml, 30- 300 ml, 50-500 ml, 100-1000 ml, 500-3000 ml, 1000-5000 ml
Conveyor length 2050 mm
Size of air compressor connector φ10 mm
Machine size 2000×900×1700 mm,350 kg

Main Features

  • High-precision gear pump filling ensures consistent liquid volume and minimal waste.

  • Anti-drip filling head moves vertically and horizontally for versatile bottle applications.

  • Stainless steel hopper and frame provide hygienic, corrosion-resistant, and easy maintenance operation.

  • Taiwan PLC and touch screen interface allow precise parameter control and simple operation.

  • Imported components from FESTO and Sick guarantee stable performance and long-term reliability.

  • Photoelectric bottle detection prevents empty filling and maintains workplace cleanliness.

Application Scenarios

  • Filling of beverages including juice, wine, and purified water.

  • Packaging edible oils, liquid condiments, and chemical solutions.

  • Filling pesticides and other liquid chemicals in controlled quantities.

  • Small-scale and industrial production lines requiring hygienic, precise dosing.

  • Food, daily chemical, pharmaceutical, and beverage manufacturing facilities needing low-maintenance filling equipment.

FAQ

Q1: What type of liquids can this machine fill?
A1: It can fill beverages, edible oil, chemicals, pesticides, and other liquid products.

Q2: What is the filling capacity?
A2: The machine handles 10–60 bottles per minute depending on liquid viscosity and bottle size.

Q3: What material is used for construction?
A3: The machine is made of 304 stainless steel, with optional 316 stainless steel for highly corrosive liquids.

Q4: Is it fully automatic?
A4: It is semi-automatic, combining manual and automated steps for efficiency.

Q5: How is dosing accuracy ensured?
A5: High-precision gear pump, adjustable anti-drip nozzles, and PLC-controlled touch screen interface ensure stable and accurate filling.
