This 3500LPH UF water treatment system is designed for well water and groundwater filtration. Using advanced PVDF ultrafiltration membranes, it efficiently removes suspended solids, bacteria, and colloids while maintaining stable water quality. Built with SUS304 stainless steel and multi-stage filtration, it ensures reliable performance for industrial and agricultural water treatment applications.
Compare
Product Introduction for UF Water Treatment System
The 3500LPH ultrafiltration UF water treatment system is a high-efficiency filtration unit designed for continuous water purification processes. With a processing capacity of 3500 liters per hour and constructed using durable SUS304 stainless steel, it offers reliable operation in demanding environments.
This system is used to separate suspended solids, colloids, microorganisms, and large molecular substances from water while allowing smaller molecules and beneficial minerals to pass through. It ensures stable water quality and efficient filtration performance across various water sources.
It is widely applied in groundwater treatment, agricultural irrigation systems, industrial processing, and commercial water purification applications requiring consistent and efficient filtration.
Technical Specifications：
| Item | Parameter |
| Membrane Material | PVDF |
| Carrier Shell Material | SUS304 Stainless Steel |
| Inlet Water Source | Municipal Tap Water/Surface Water |
| Water Temperature | 4-40℃ |
| Flow Rate | 3500 L/h |
| Operating Water Pressure | 0.1-0.4MPa |
| NTU Inlet | ≤ 50 NTU |
| Outlet NTU | ≤ 1 NTU |
| Pretreatment Set | Quartz Sand + Activated Carbon |
| Cartridge Life | 2-3 years |
| Product Dimensions | ф141 × 490 mm |
| Filtration Direction | External Pressure Filtration |
| Ultrafiltration Membrane Material | Reinforced PVDF with Lined Membrane |
| Filtration Accuracy | 0.01-0.16 μm |
Working principle：
Raw water first undergoes pre-filtration to remove large particles and impurities. Then, under pressure, water is forced through PVDF ultrafiltration membranes. The membrane acts as a selective barrier, allowing water molecules and small solutes to pass while retaining suspended solids, bacteria, colloids, and macromolecules. The filtered water is collected as clean output, while impurities are discharged as concentrate.
Main features：
Application scenarios：
FAQ
Contact us to get your quotation now.
Get in touch with our engineering team.
Download full specification PDF.
The ultrafiltration (UF) membrane system uses high-performance membrane filaments to purify and separate solutions. It allows water, inorganic salts, and small organic molecules to pass while blocking suspended solids, colloids, proteins, and microorganisms. This technology ensures clean, safe, and high-quality water by removing impurities, heat sources, and harmful substances from raw water. Ideal for industrial, municipal, and commercial water treatment, the UF system delivers efficient filtration, reliable operation, and long-lasting membrane performance.

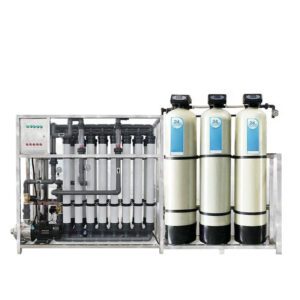

This 20T/h ultrafiltration system is designed for industrial wastewater treatment and water reuse applications. It effectively removes suspended solids, bacteria, colloids, and macromolecular impurities while maintaining stable water quality. Built with stainless steel structure and food-grade piping, it ensures durability, safety, and long-term performance for continuous filtration in various industrial environments.
The automatic industrial ultrafiltration system uses hollow fiber membranes as the core water purification component. It achieves deep water purification through precise size exclusion, efficiently retaining bacteria, viruses, colloids, suspended solids, and high-molecular organic substances in the water. The entire process does not use any chemical additives, preventing secondary pollution at the source and ensuring stable and safe water quality, meeting the purification standards for various industrial water applications.
The comprehensive ultrafiltration water treatment system highlights all-around adaptability and safety. All components in contact with water are made of food-grade PP thickened piping, which is sturdy, resistant to damage, non-toxic, harmless, and free from secondary pollution. It can be safely used in various scenarios involving drinking water or production water, effectively preventing water quality contamination caused by pipe aging or damage.
