This 10TPH ultrafiltration system is designed for groundwater and industrial water purification. It removes suspended solids, bacteria, and colloids using advanced UF membrane technology. With automatic operation, low-pressure filtration, and integrated pre-treatment and sterilization units, it ensures stable water quality and efficient performance for continuous water treatment applications.
The 10TPH ultrafiltration system is an advanced water treatment solution designed for groundwater purification and industrial water processing. With a capacity of 10 tons per hour, it integrates multiple filtration stages and membrane separation technology to ensure stable and reliable performance.
This system effectively removes suspended solids, bacteria, colloids, and organic matter, making it suitable for producing clean water for various applications. It is widely used in industries such as beverage production, pharmaceuticals, chemical processing, and boiler water supply systems.
The equipment is ideal for users requiring continuous operation, stable water quality, and efficient filtration in medium to large-scale water treatment projects.
220V/380V/480V, 1ph/3ph, 50Hz/60Hz (can be changed)
Ultrafiltration Membrane
UFc160AL
Materials
Fiberglass, SUS, PVC
Application
Water Purification
Working principle：

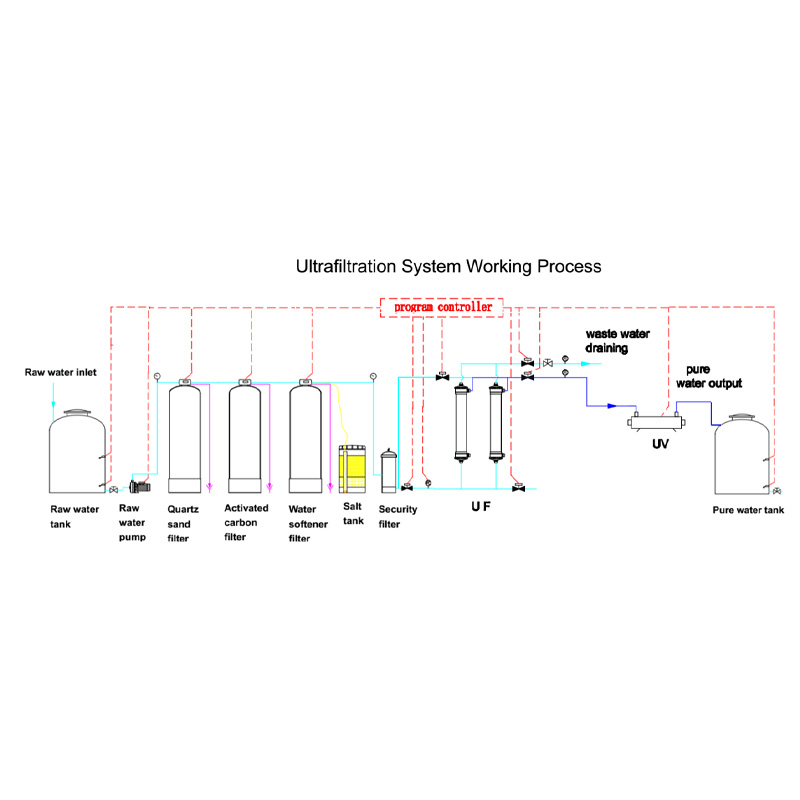

The system operates through a multi-stage filtration process combined with ultrafiltration membrane separation. Raw water is first pressurized and passes through sand filters, activated carbon filters, and softening units to remove large particles, chlorine, and hardness. It then enters the UF membrane unit, where fine particles, bacteria, and colloids are retained. Finally, ultraviolet and ozone sterilization further disinfect the water, ensuring high-quality output suitable for reuse or consumption.
Main features：
■ Continuous automatic operation ensures stable water production with minimal manual intervention ■ Ultrafiltration membrane technology effectively removes bacteria, viruses, and suspended impurities from water ■ Multi-stage pre-treatment system improves filtration efficiency and extends membrane service life ■ Automatic cleaning function reduces membrane fouling and maintains consistent system performance ■ Integrated protection system safeguards pumps and equipment during low water supply conditions
pplication scenarios：
■ Groundwater and underground river water purification systems ■ Drinking water production for beverage and food processing industries ■ Pharmaceutical and medical water treatment applications ■ Boiler feed water preparation in industrial plants ■ Chemical and petrochemical process water purification
FAQ
Q: What is the capacity of this UF treatment system?
A: Its treatment capacity is 10 tons per hour.
Q: What kind of water is this system mainly used for?
A: It is mainly used for groundwater purification.
Q: Does this system use ultrafiltration membrane technology?
A: Yes, it adopts high-performance UF membrane modules.
Q: Can it produce safe drinking water from groundwater?
A: Yes, it can purify groundwater into safe drinking water.
Q: Is the system suitable for industrial and rural water supply?
A: Yes, it is widely used in industrial and rural water supply.
