35–50 pcs/min Automatic Screw Cap Placing Machine Daily Use

Screw Cap Placing Machine Product Introduction

The 35–50 pcs/min automatic screw cap placing machine is designed for daily use bottled products, automatically capping bottles after high-speed filling. Equipped with a servo motor and continuous tracking placement system, it ensures precise cap positioning. The PLC control panel allows adjustment of speed, capping torque, and operation mode to accommodate various bottle types and cap sizes. The stainless steel frame is easy to clean and meets industrial hygiene standards. It can be integrated with filling, labeling, and conveying lines for efficient automated packaging.

Working Principle：

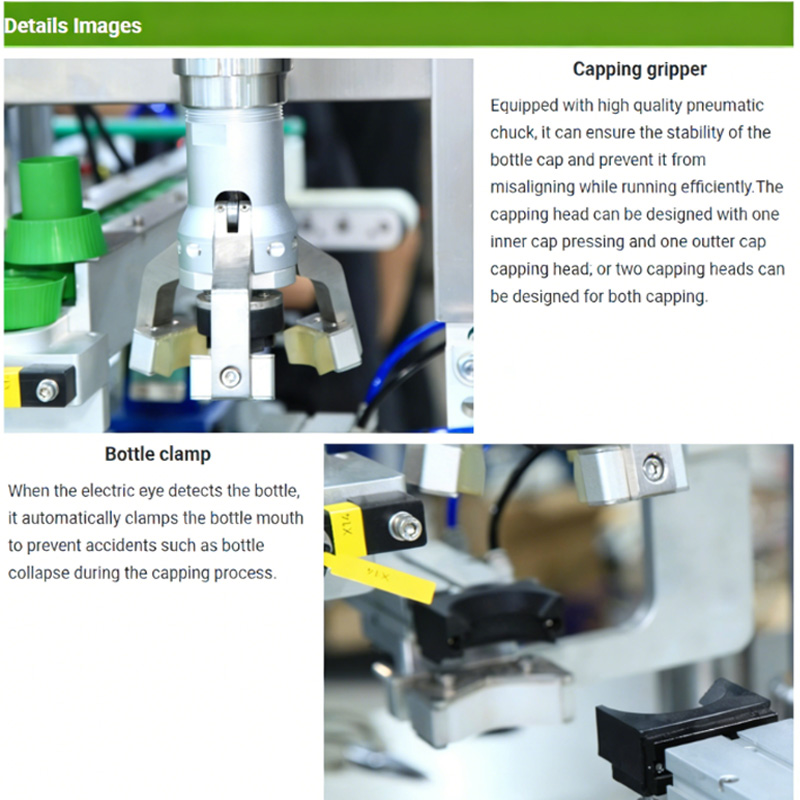

Bottles move continuously on the conveyor into the cap placing station. A servo-controlled gripper picks up screw caps and accurately places them onto the bottle neck while rotating to secure the cap. The PLC system controls conveyor speed and capping torque, with sensors ensuring leak-proof and precise sealing.

Technical Specifications：

Machine voltage	220V/380V, 50/60Hz, Three-phase
Power	1.5 kW
Capping speed	35–50 pcs/min (depending on bottle size and cap type)
Bottle diameter	30–120 mm (adjustable)
Bottle height	80–300 mm (adjustable)
Cap type	Screw cap, plastic or metal
Capping head	Servo motor driven, automatic screw cap placement
Conveyor width	500 mm (adjustable)
Conveyor speed	0–20 m/min (adjustable via PLC)
Control system	PLC with touch screen, adjustable torque and speed
Frame material	SUS304 stainless steel, hygienic and corrosion-resistant
Capping torque	1–5 N·m (adjustable)
Air source	0.6–0.8 MPa

Main features：

• Servo motor drive – ensures precise and uniform cap placement.
• Continuous tracking system – high-speed, smooth capping without stopping the line.
• PLC touch screen control – adjustable speed, torque, and operation mode.
• Stainless steel frame – hygienic, corrosion-resistant, and easy to clean.
• Versatile compatibility – supports different bottle sizes and screw cap types.
• Leak-proof sealing – prevents liquid leakage and ensures product quality.
• Compact modular design – easily integrates into automated production lines.

Application Scenarios：

• High-speed capping for daily use products like shampoo, conditioner, body wash, and cleaning liquids.
• Small to medium-sized production lines requiring precise and uniform screw capping.
• Integration with filling, labeling, and conveyor lines for automated packaging.
• Suitable for cosmetic, personal care, and household liquid products.
• Ideal for improving production efficiency and maintaining hygiene standards.

FAQ

• Q: What is the capping speed?
  A: 35–50 bottles per minute depending on bottle and cap size.
• Q: Can it handle different screw cap sizes?
  A: Yes, the machine is adjustable to fit various bottle and cap specifications.
• Q: Is it suitable for small production lines?
  A: Yes, it is ideal for small to medium daily use bottle production lines.
• Q: How is the machine controlled?
  A: Via a PLC touch screen for easy adjustment of speed, torque, and operation mode.
• Q: Does it ensure leak-proof capping?
  A: Yes, sensors and precise servo control ensure tight, leak-proof sealing.
