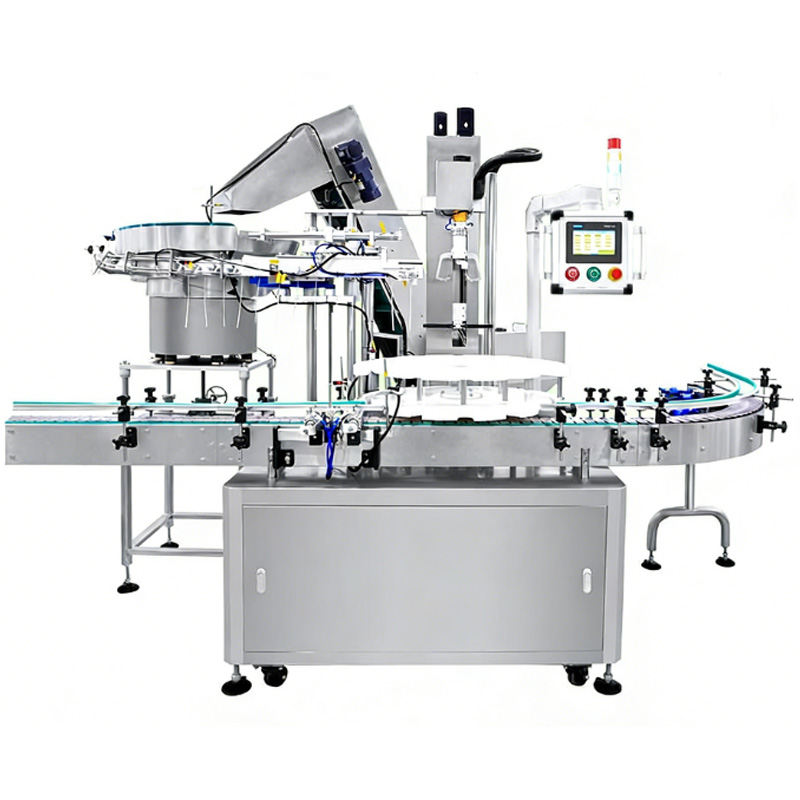

30 bottles/min Rotary Bottle Capping Machine for Plastic

Capping Machine Product Introduction

The 30 bottles/min Rotary Bottle Capping Machine for Plastic is engineered for precise and reliable capping of plastic bottles across industries such as food, beverage, cosmetics, and chemicals. Featuring a rotary plate design, the machine ensures smooth bottle handling and continuous operation, making it ideal for medium-scale production lines.

It supports a wide range of cap types including pump caps, spray trigger caps, and standard screw caps. The fully automatic system integrates bottle feeding, cap positioning, and capping into one streamlined process, significantly reducing manual labor and increasing efficiency. Adjustable parameters allow quick adaptation to different bottle sizes and cap specifications.

Constructed with durable stainless steel and equipped with a user-friendly control system, this machine offers long-term stability, easy maintenance, and consistent high-quality sealing performance for modern packaging lines.

Working Principle：

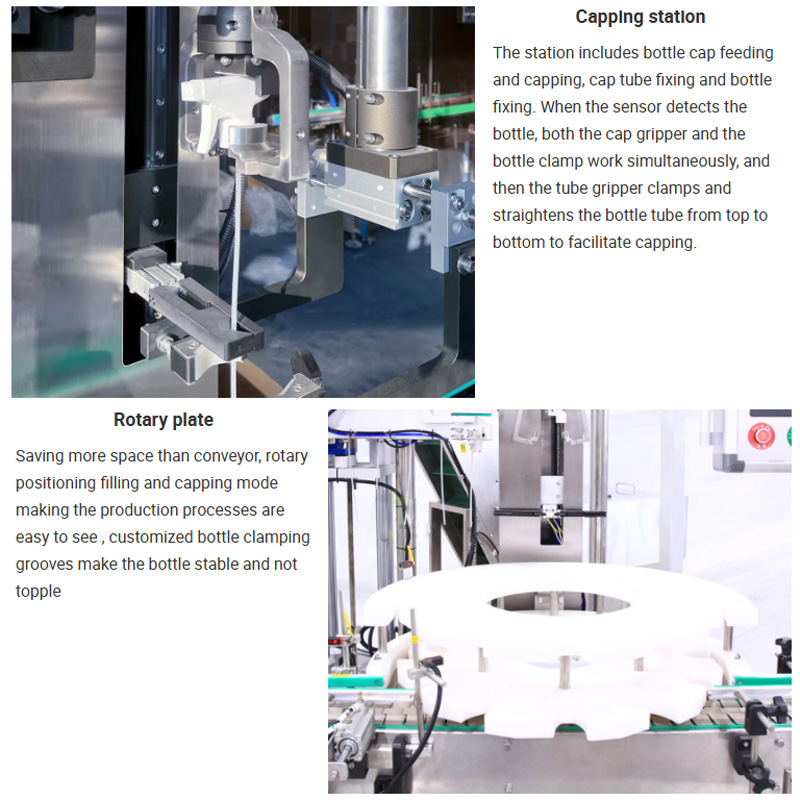

The 30 bottles/min Rotary Bottle Capping Machine uses a rotary plate system to automatically feed and position plastic bottles in sequence. Caps are placed onto the bottles through a cap feeding mechanism, and the capping heads apply controlled torque to tighten pump, spray trigger, or screw caps securely. The synchronized system ensures continuous operation, stable performance, and consistent sealing quality throughout the entire capping process.

Technical Specifications：

Voltage	AC220V 50Hz
Automatic Grade	Fully automatic
Driven Type	Electric
Capping Speed	30 bottles per minute
Capping System	Servo motor fetching and screw capping
Capping Distributor	Elevator cap feeder with vibration plate
Bottle Feeding Way	Connected to filling machine conveyor
Suitable Bottle Type	Trigger pump bottle spray bottle
Packaging Material	Plastic metal glass wood
Application	Food beverage commodity chemical machinery hardware

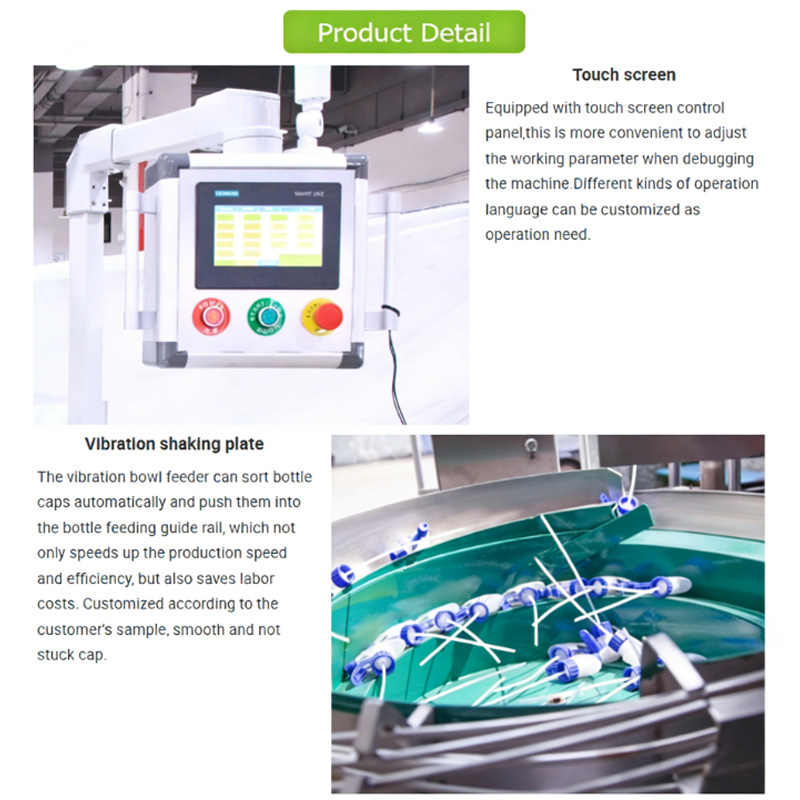

Control System	PLC with touchscreen
Air Pressure	0.6 to 0.8 MPa
Conveyor	82 mm POM chain belt height 800±25 mm
Machine Dimension	3000 × 2527 × 2110 mm
Machine Weight	550 kg

Main features：

• Rotary Plate Design – Ensures smooth, continuous bottle movement and stable capping performance.
• Multi-Cap Compatibility – Supports pump caps, spray trigger caps, and screw caps.
• Automatic Operation – Integrates bottle feeding, cap placement, and capping in one system.
• Adjustable Settings – Easily adapts to different bottle sizes and cap types.
• Durable Construction – Stainless steel body ensures long service life and hygiene compliance.

Application Scenarios：

• Cosmetics Industry – Ideal for lotions, shampoos, and spray bottles with pump or trigger caps.
• Chemical Industry – Suitable for detergents, cleaning liquids, and industrial chemicals.
• Food Industry – Used for sauces, oils, and liquid food packaging in plastic bottles.
• Beverage Industry – Applicable for specialty drinks and functional beverages in plastic containers.
• Medium Production Lines – Perfect for factories requiring stable and continuous capping operations.

FAQ

• Q: What types of caps can this machine handle?
  A: It supports pump caps, spray trigger caps, and standard screw caps.
• Q: What is the production capacity?
  A: The machine operates at 30 bottles per minute.
• Q: Is it suitable for different bottle sizes?
  A: Yes, it has adjustable settings for various bottle diameters and heights.
• Q: Is the machine fully automatic?
  A: Yes, it integrates feeding, capping, and discharge automatically.
• Q: Which industries can use this machine?
  A: It is widely used in cosmetics, chemical, food, and beverage industries.
