Product
|
PX-CP50 AUTOMATIC TORQUING MACHINE
|
Output
|
1000-6000BPH, or customized
|
Bottle type
|
Pleastic screw bottle and lid
|
Air compressor
|
0.6-0.8Mpa
|
Torquing motor
|
Magnetic /Servo motor
|
Control
|
PLC and Touch Screen
|
Torque Range
|
0-100N
|

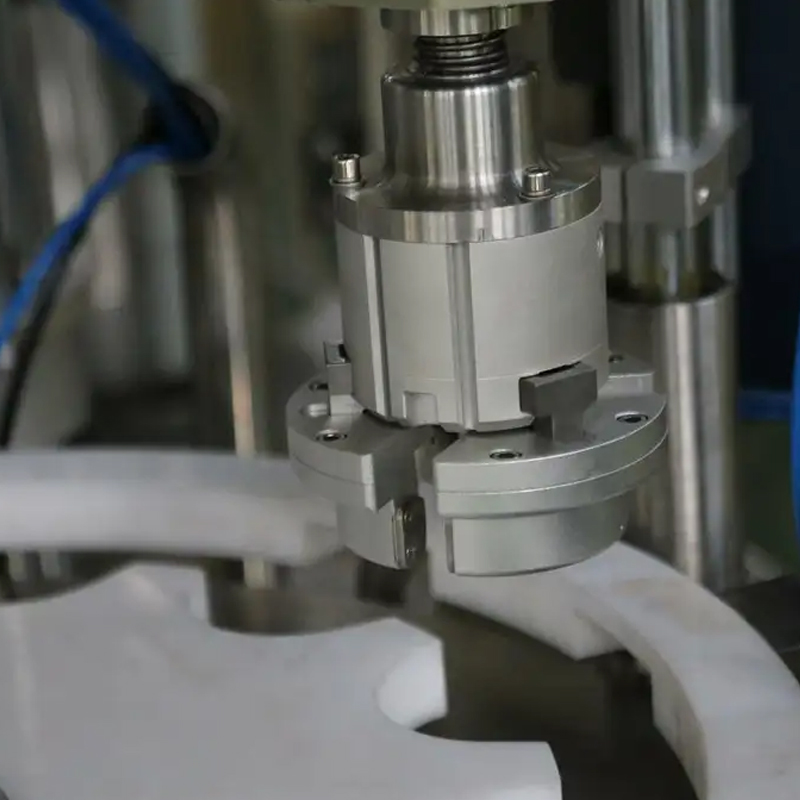

Capping hand style
|
Three Jaw
|
Cap size
|
5-200mm diameter
|
Detection
|
Photocell
|
Filling Type
|
Piston Pump, Peristaltic Pump
|
Power
|
1.5KW
|
Material
|
SS304
|
Capping Head
|
Screwing, Pressing, Crimping Head ( According to the cap type)
|
Suitable Industry
|
Cosmetic, food, detergent, etc
|
Human protection
|
Complete safety switch alarm
|
Working noise
|
lower than 60 dpi
|
Capping Machines

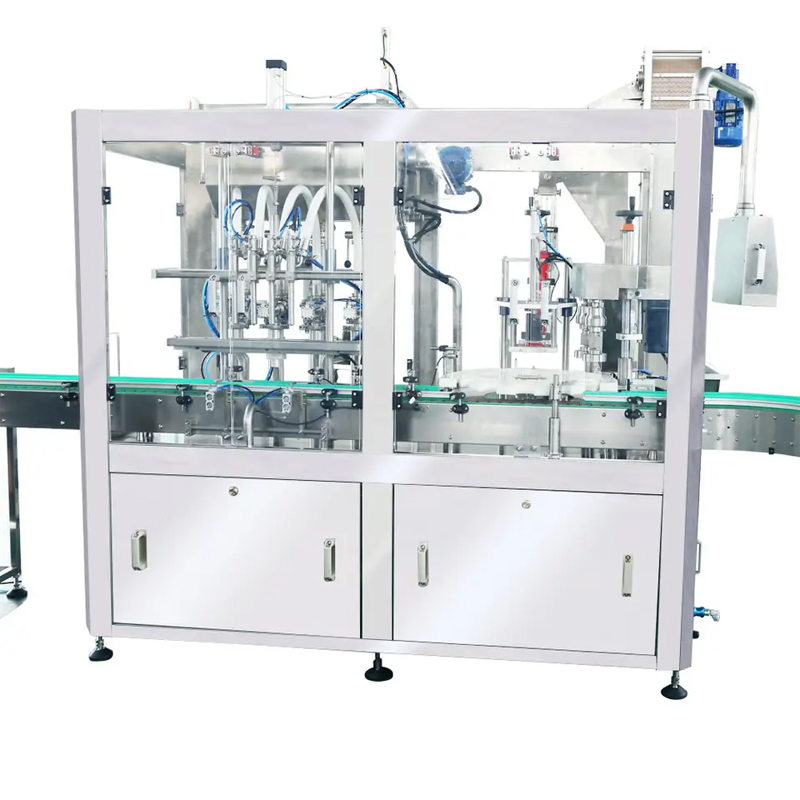

Food beverage packing machinery automatic 10-100 ml glass plastic bottle filling capping machine
The Newest PX-CP50 Monoblock smart capper is specially designed for different molds lids torque application , , machine adopts the newest magnetic motor /servo group in torque releasing , which making the whole working process more and more convenient , we divided the torque from 0-100N ,different from traditional machinery , now operator needs only select the torque date at the controlling channel instead of adjust the machinery part which may spending you one hour , another points to be said for the PX-CP50 , that the low noise level ,Combined with blimp , we control the noise lower than 60 dpi which bringing all workers a good and silent working environment .
$16,250.00
