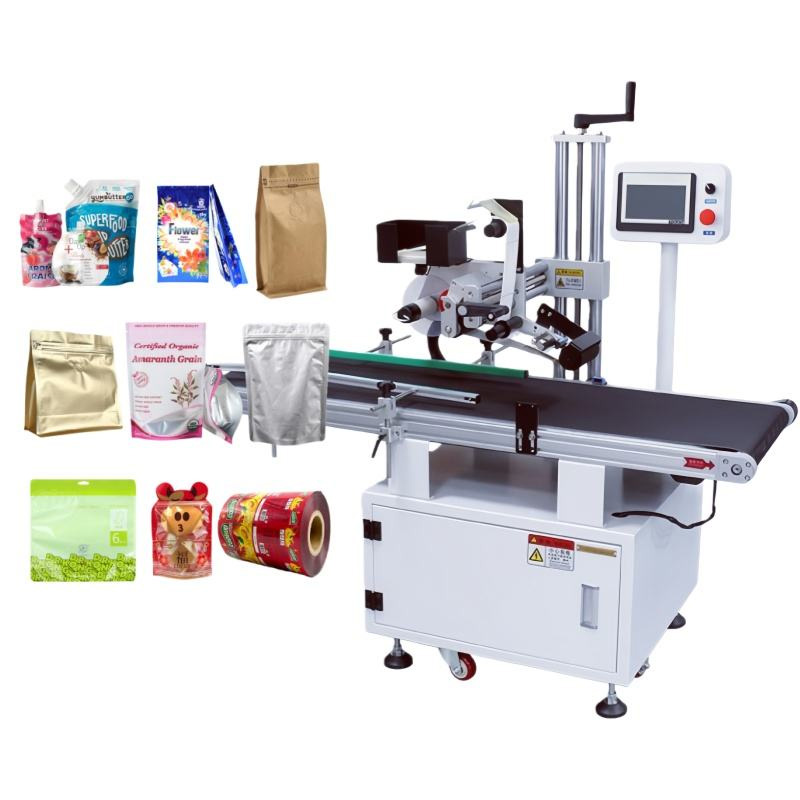

30–90 pcs/min Plastic Bag Flat Surface Labeling Machine

Labeling Machine Product Introduction

The 30–90 pcs/min Plastic Bag Flat Surface Labeling Machine provides reliable and high-precision labeling for flat surfaces such as plastic bags, pouches, cartons, and paper packaging. It supports a wide range of self-adhesive labels and ensures smooth feeding, accurate positioning, and strong adhesion during high-speed operation.

Featuring an advanced PLC control system and user-friendly interface, operators can easily adjust labeling speed, position, and parameters to meet different production needs. The motor-driven mechanism ensures stable performance and consistent output, while high-sensitivity sensors guarantee precise label detection and placement. This machine is widely used in food packaging, snack production, cosmetics, pharmaceuticals, and consumer goods industries, offering an efficient and cost-effective labeling solution.

Technical Specifications：

Product Name	Flat Surface Automatic Labeling Machine
Applicable Label Size	Length 20–230 mm, Width 20–180 mm
Applicable Products	Plastic bags, pouches, cartons, flat surfaces
Applicable Bag Size	Length 50–180 mm (customizable)
Labeling Speed	30–90 pcs/min
Labeling Accuracy	±1 mm (depending on product and label)
Machine Material	Stainless steel + aluminum alloy
Power Consumption	350 W
Power Supply	220V/50Hz
Overall Dimensions (L×W×H)	700 × 900 × 1750 mm
Net Weight	Approx. 200 kg
Export Packing Size	1000 × 1200 × 2000 mm (2 cases)

Main features：

• High-speed performance – Adjustable 30–90 pcs/min to meet different production demands.
• High-precision labeling – Ensures accurate placement on flat surfaces with minimal deviation.
• Motor-driven system – Provides stable and continuous operation for consistent output.
• Wide compatibility – Suitable for plastic bags, pouches, cartons, paper boxes, and flat packages.
• Flexible adjustment – Easy control of labeling speed, position, and label size.

Application Scenarios：

• Food packaging – snacks, candies, dried foods, and frozen food bags.
• Beverage and powder products – sachets, small packs, and flexible packaging.
• Cosmetic and personal care – face masks, cream sachets, and sample pouches.
• Pharmaceutical packaging – medical pouches, test kits, and flat packages.
• Consumer goods packaging – retail products, accessories, and small items.



FAQ

• What types of products can this machine label?
  Plastic bags, pouches, cartons, paper boxes, and flat packages.
• Is the labeling speed adjustable?
  Yes, it can be adjusted between 30–90 pcs/min.
• What type of labels are supported?
  Self-adhesive labels in roll form.
• Is the machine easy to operate?
  Yes, it features PLC control and a simple user interface.
• Can it be integrated into a production line?
  Yes, it can work with filling, sealing, and packaging machines.
