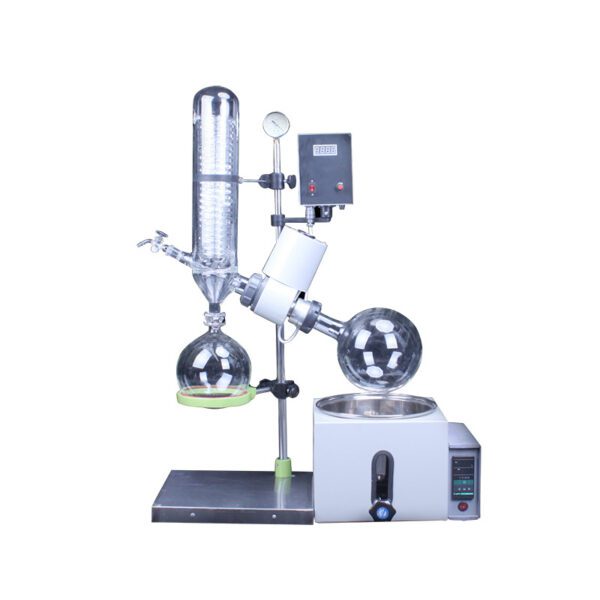

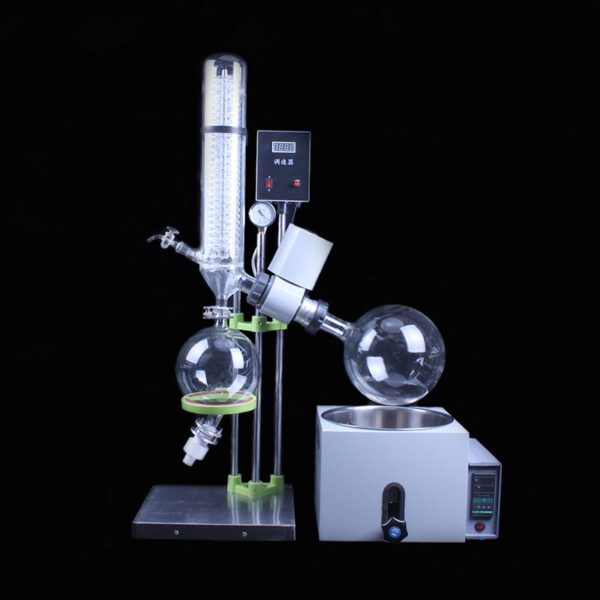

Product details of Rotary Evaporator
- Rotation system: DC frequency conversion motor, worm gear gearbox, stable operation, adjustable constant speed, liquid crystal digital display of speed.
- Constant temperature system: Just input the required temperature to automatically heat and keep the constant temperature water and oil heating bath evenly, and the constant temperature is stable.
- Sealing system: Teflon and mechanical double seal, the vacuum can reach 0.098MPA, resistant to strong acid, strong alkali, and various organic solvents.
Rotary Flask | 2L |
Collect Flask | 1L |
Motor Power | 40W |
Power Voltage | 220/110V for Optional |
Bath Power | 1200 W |
Bath Volume | 2L |
Evaporation Rate(Water) | 1L/ H |
Speed Range | 0 – 120 RPM |
Lift and Stroke | Water Bath Lifting with Manual Control, 150 mm |
Heating Temperature Range | Rm-99 Degree |
Heat Control | PID |
Heat control accuracy | ±1 Degree |
Ultimate Vacuum | 0.098 Mpa |
