13 Gallon/50L Rotary Evaporator Manual Lifting Rotary Evaporator Laboratory Large Spiral Tube Evaporator Laboratory Equipment

Add to wishlist
Compare
  • All PTFE valves for improved sealing and chemical resistance
  • PID rotation speed controls
  • Removeable base & bath improved workspace allocation
  • Receiving flask drain port for easy draining
  • Specialized motor for stepless adjustable speed

Note: Prices may vary depending on product capacity and quality.

$5,050.00

Compare

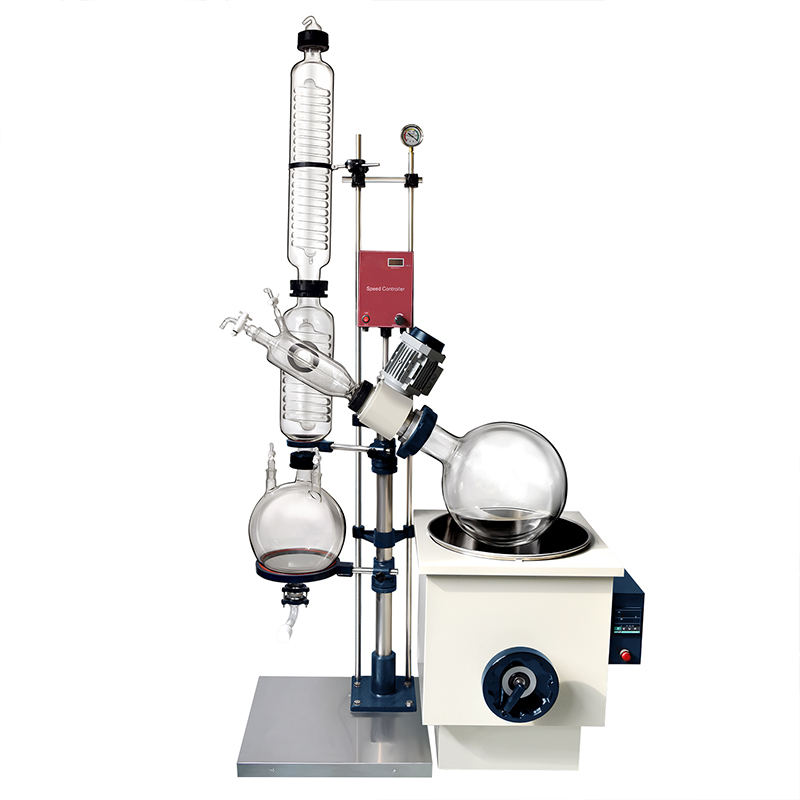

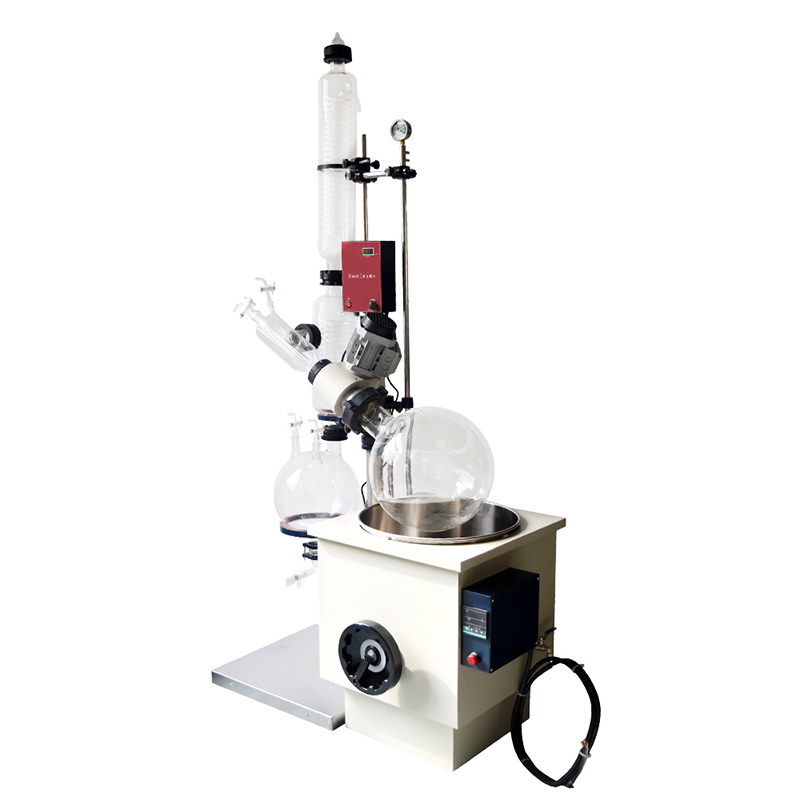

Description of Rotary Evaporator

Model 50L Rotary Evaporator
Glass Material GG-17 High Borosilicate
Power (V/Hz) 220V 50Hz
Speed Regulation Digital Step-less Regulation
Rotation Speed 0~110RPM
Set Temperature 0-99C / 0-210F
Temperature Control Digital Temperature Control
Maximum Vacuum Pressure < 3 torrs
Evaporating Flask Capacity 50L / 13.0 gallon
Receiving Flask Capacity 20L / 5.3 gallon
Condenser Style Main + Auxiliary Vertical Double Helix
Evaporation Capacity H2O ≥ 11 L/H
Bath Heating Max Current Draw 23 Amps
Water Bath Material 304 Stainless Steel
Water Bath Heating Power 8 kW
Motor Power 120 W
Lifting Function Manual
Lifting Stroke 180mm / 7.0”
Dimensions (L) 1250mm x (W) 540mm x (H) 2000mm
Weight 320 lbs.

Details of Rotary Evaporator

  • Spiral condenser: spiral shape inside the tube, large cooling area and good condensation effect.
  • Bathing pot: The bathing pot is made of stainless steel as a whole, which is resistant to high temperature.
  • Motor: AC induction motor stepless speed regulation, no brush, no spark, long life.
  • Intelligent digital display controller: simple operation, accurate temperature control.
