20-30 Bottles/min Suction Filling Machine for Detergent Bags

Product introduction of Suction Filling Machine

The suction filling machine is an automated packaging system designed for filling and sealing bagged products with liquids, pastes, and viscous materials. Built with stainless steel components that comply with GMP standards, it ensures high hygiene and durability. The machine uses a piston suction filling system combined with PLC and servo control to achieve accurate and consistent filling. It solves common problems such as inconsistent dosing, low efficiency, and manual operation errors. Suitable for food and beverage manufacturers, condiment producers, and liquid packaging industries, it offers a flexible and efficient solution for multi specification production needs.

Working principle

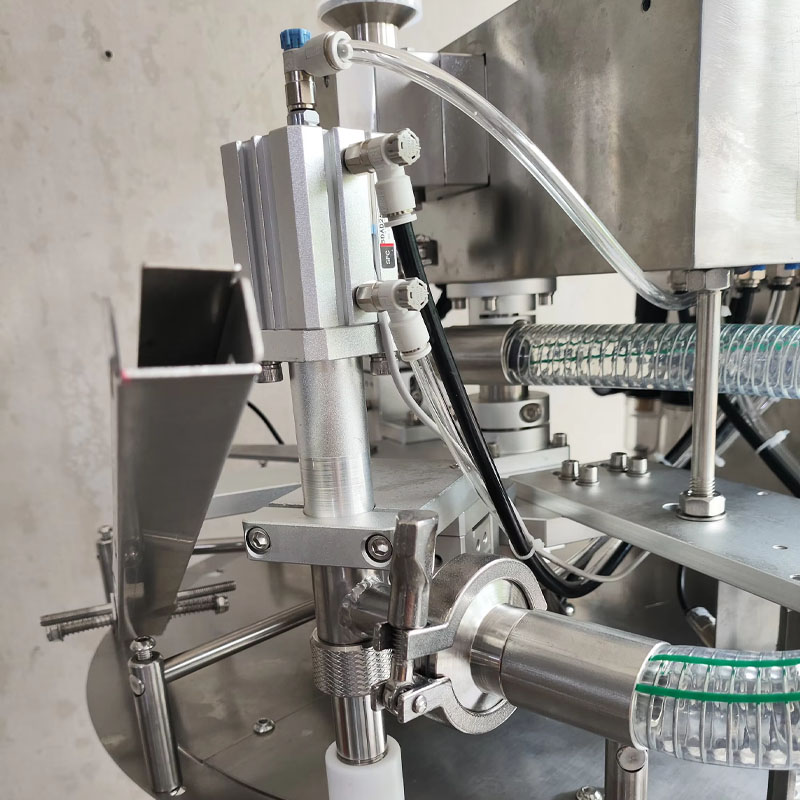

The suction filling machine operates using a piston suction system that draws material from a storage tank into the filling nozzle. When a bag is positioned, the PLC system controls the filling process, ensuring precise volume dispensing. The machine then automatically feeds, fills, and seals the bag in sequence. The servo system coordinates each step for accuracy and stability. This integrated process ensures efficient, hygienic, and consistent packaging for a wide range of liquid and paste products.

Product Parameter Table

Filling speed	20-30 bottles/min
Suitable materials	liquid, semi-fluid, paste
Size	800×600×700 mm
Weight	70 kg
Material	SUS 304 stainless steel/aluminum plate
Power supply	220 V,50-60 Hz
Voltage	0.5-0.7 MPa

Main Features

• Equipped with a PLC control system and human machine interface that provides intuitive operation and precise control over filling and sealing parameters.

• Uses a piston suction filling structure that enables accurate dosing of liquids, pastes, and viscous materials with consistent performance.

• All material contact parts are made of 304 stainless steel, ensuring hygiene, corrosion resistance, and compliance with GMP food safety standards.

• Fully automated process integrates bag feeding, filling, and capping to significantly reduce manual labor and improve production efficiency.

• Servo system control ensures high precision operation, stable performance, and smooth synchronization of all machine components.

• Quick mold changeover design allows flexible production of different bag sizes and specifications with minimal downtime.

Application Scenarios

• Food industry packaging for sauces, honey, jelly, milk, and soy milk in flexible bag formats.

• Beverage production lines requiring automated filling and sealing of liquid drink products.

• Condiment and paste packaging such as ketchup, mayonnaise, and chili sauce production.

• Small and medium factories requiring efficient bag filling and capping for viscous and liquid materials.

FAQ

1. What types of materials can this machine handle?
It can handle liquids, pastes, and viscous materials such as sauces, honey, and beverages.

2. Is the machine fully automatic?
Yes, it supports automatic bag feeding, filling, and capping with PLC and servo control.

3. Does it meet food safety standards?
Yes, it is made of 304 stainless steel and complies with GMP hygiene requirements.

4. Can it handle different bag sizes?
Yes, the machine supports quick mold changeover for multi specification product
