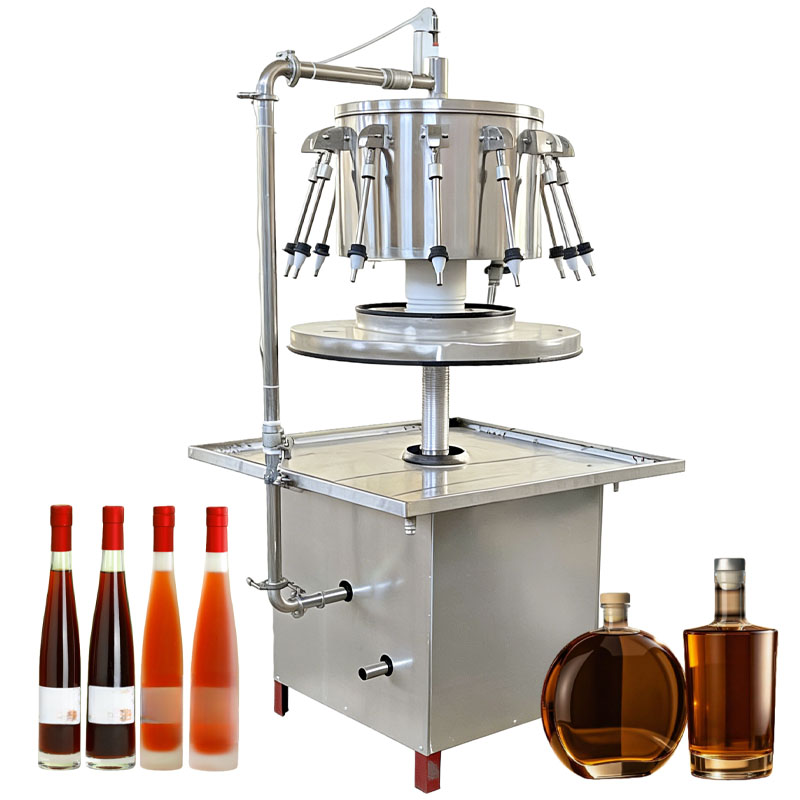

1500-2000 Bottles/h Rotary Liquid Filling Machine for Water Bottles

Product introduction of Rotary Liquid Filling Machine

The rotary liquid filling machine is a high efficiency automated filling system designed for handling liquids that are prone to foaming. Built with a rotary platform and precision filling technology, it ensures continuous operation and stable output. The machine is constructed with durable materials suitable for food grade applications and meets hygiene standards. It solves common issues such as overflow, inconsistent liquid levels, and inefficient manual filling. It is widely used by manufacturers in food, beverage, and condiment industries, especially those producing wine, vinegar, soy sauce, and similar liquids requiring controlled and precise filling processes.

Working principle

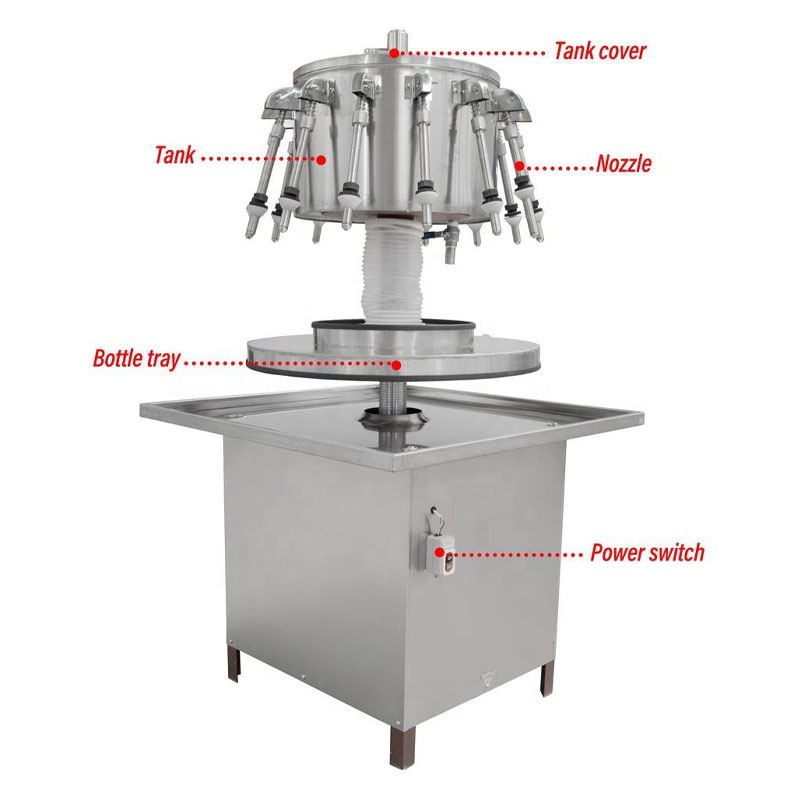

The rotary liquid filling machine works by using a rotating platform that continuously moves bottles through the filling station. As bottles pass the filling nozzles, the siphon system draws liquid into each container until the preset level is reached. The system automatically stops filling when the desired level is achieved, preventing overflow and ensuring consistency. The no bottle no filling function ensures only positioned bottles are filled, improving efficiency and reducing waste during production.

Product Parameter Table

Power	AC 220 V/380 V,50 Hz
Bottle height	100-320 mm(or customized)
Cap diameter	55-100 mm
Working capacity	1500-2000 bottles/h(500 ml)
Motor power	0.37 kW
Machine weight	100-1000 ml
Size	90×90×190 cm
Weight	150 kg

Main Features

• Equipped with a no bottle no filling function that prevents waste and ensures accurate filling only when containers are present.

• Uses siphon filling technology to maintain consistent liquid levels and effectively prevent overflow and excessive foaming during operation.

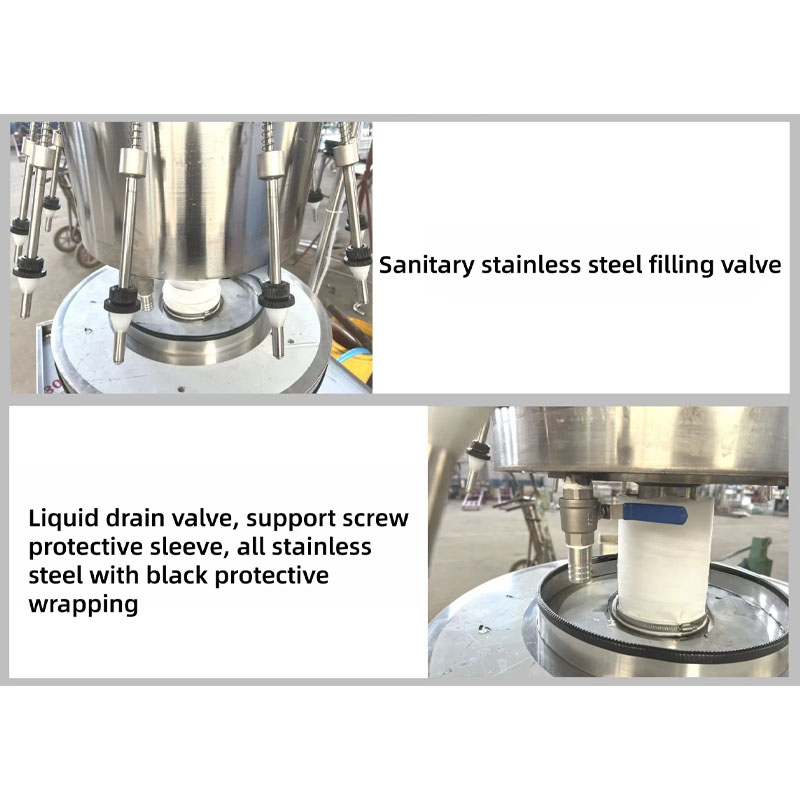

• Filling plug design ensures continuous liquid flow without dripping, backflow, or leakage during the entire filling process.

• Easy to operate system that requires no complex suction process, improving usability and reducing operator workload.

• Multiple nozzle sizes and specifications are available to meet different production requirements and bottle configurations.

• Designed for stable and continuous operation, ensuring reliable performance for high efficiency industrial filling applications.

Application Scenarios

• Wine and alcoholic beverage filling for wineries and distilleries requiring anti-foaming and stable filling.

• Food condiment production such as soy sauce, vinegar, and cooking wine packaging.

• Beverage industry applications including juice and liquid drink filling with controlled flow.

• Small to medium manufacturing lines needing precise liquid filling for foaming or viscous liquids.

FAQ

1. What types of liquids can this machine handle?
It is suitable for foaming liquids such as wine, vinegar, soy sauce, and other similar fluids.

2. Does the machine prevent overflow during filling?
Yes, it uses siphon technology and liquid level control to prevent overflow and ensure stable filling.

3. Is it difficult to operate?
No, it is designed for simple operation and does not require complex setup or suction processes.

4. Can it be used in continuous production?
Yes, the rotary structure supports continuous and stable operation for production lines.
