1T/H Reverse Osmosis System for Industrial Pure Water Plant
This 1T/H reverse osmosis system is designed for industrial pure water production and water purification applications. Using advanced RO membrane separation technology, the system removes dissolved salts, bacteria, organic matter, and other contaminants from raw water. With automatic flushing and stable pressure operation, it ensures reliable purified water output for industrial processing and equipment cleaning systems.
Compare
Product Introduction for Reverse Osmosis System

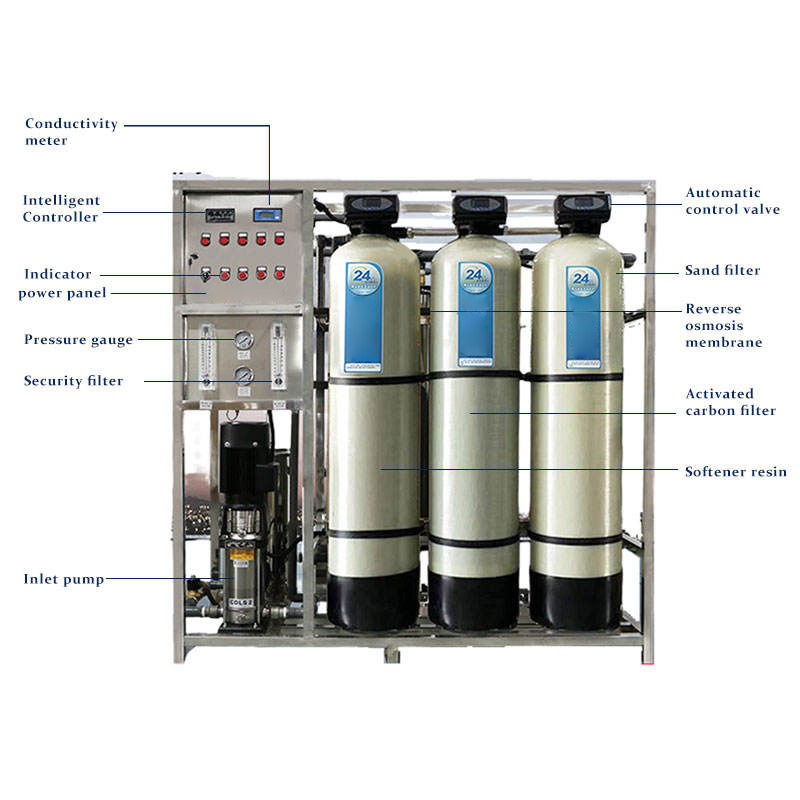

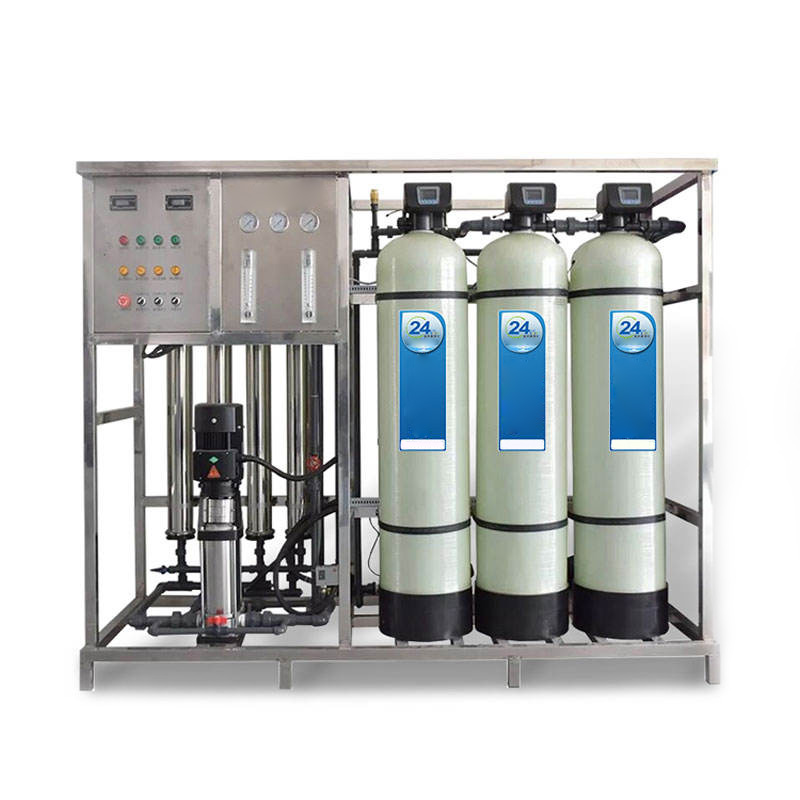

The 1T/H reverse osmosis system is an industrial water purification unit designed for continuous pure water production. With a treatment capacity of 1 ton per hour and a compact structural design, the system integrates pretreatment filtration and reverse osmosis membrane technology to ensure efficient water purification.
This equipment separates dissolved salts, suspended particles, microorganisms, and organic impurities from raw water sources, improving water quality for industrial processing requirements. The filtration process helps maintain stable water purity and reliable system operation.
It is widely used in electronics manufacturing, chemical solution preparation, industrial equipment cleaning, and precision production processes requiring purified water.
Technical Specifications：
| Item | Parameter |
|---|---|
| Product Name | 1t/h Water Treatment Plant |
| Type | Pure Water Treatment System |
| Filtration Principle | Reverse Osmosis Filtration |
| Technology | Pretreatment + RO, Reverse Osmosis Membrane, Vontron Membrane |
| Productivity | 1 ton/hour (1t/h) |
| Application | Hotel, School, Farm, Factory, Office |
| Usage | Water Treatment |
| Function | Producing Fresh Water |

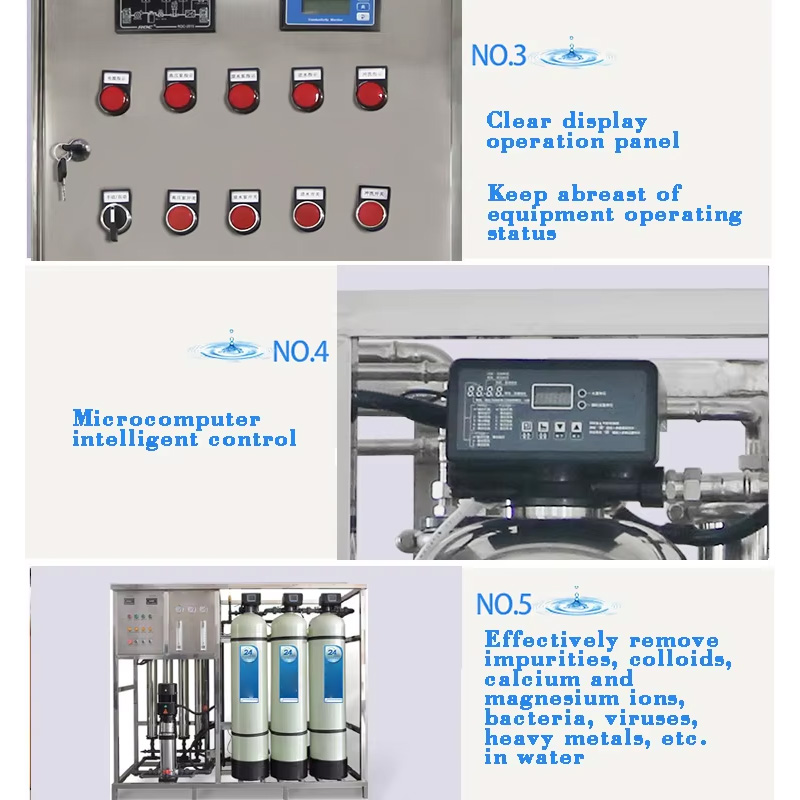

| Operation | Automatic Operation |
| Cleaning Method | Automatic Flushing |
| Voltage | 110V / 220V / 380V |
| Dimensions | 1600×750×1800 mm |
| Weight | 400 kg |
Working principle：
Raw water first enters the pretreatment system where filtration media remove suspended solids, sediment, and large impurities. This stage protects the reverse osmosis membrane from fouling and improves filtration efficiency.

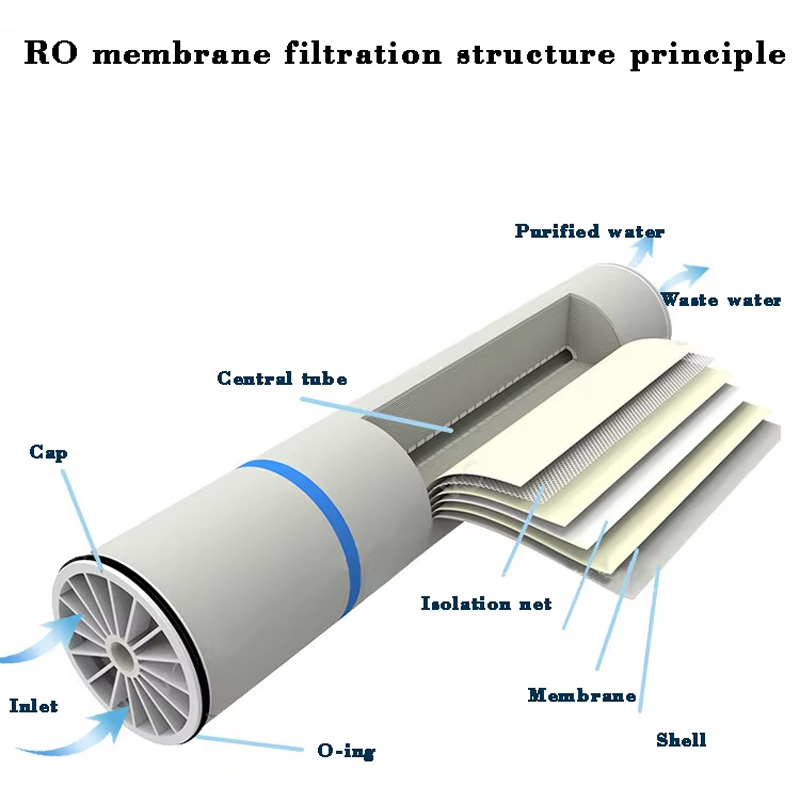

After pretreatment, the water is pressurized by a high-pressure pump and directed into the reverse osmosis membrane module. The semi-permeable membrane allows water molecules to pass through while blocking dissolved salts, bacteria, organic substances, and other contaminants.
The purified water is collected for industrial use, while concentrated impurities are discharged as reject water to maintain continuous system operation.
Main features：
• High-efficiency reverse osmosis membrane technology capable of removing most dissolved salts and impurities
• Automatic flushing function helps reduce membrane fouling and extend membrane service life
• Compact structural design allows convenient installation and efficient use of limited equipment space
• Stable pressure operation ensures consistent purified water output for industrial production processes
• Integrated filtration system effectively removes sediment, organic matter, bacteria, and other contaminants
Application scenarios：
• Electronics manufacturing process water purification
• Precision product cleaning water systems
• Chemical solution preparation and laboratory water treatment
• Electrocoating and electroplating process water purification
• LED and LCD manufacturing water treatment systems
• Industrial equipment washing and cleaning water supply
FAQ
A: It can produce 1 ton of industrial pure water per hour for water plants.
A: Yes, it is specially built for industrial pure water production and purification.
A: Yes, it runs fully automatically with intelligent control and monitoring.
A: It removes ions, bacteria, heavy metals, particles and other impurities effectively.
Contact us to get your quotation now.
Get in touch with our engineering team.
Download full specification PDF.
