3000L/H Reverse Osmosis System for Industrial Pure Water

Product Introduction for 3000L/H Reverse Osmosis System

The 3000L/H reverse osmosis system is an industrial water purification unit designed for medium-scale pure water production. With a production capacity of 3000 liters per hour, the system combines pretreatment filtration and reverse osmosis membrane technology to ensure stable and efficient water purification.

This equipment removes dissolved salts, suspended particles, bacteria, and organic contaminants from raw water sources, improving overall water quality for industrial use. The integrated filtration process helps protect the membrane system and maintain consistent purification performance.

It is widely used in beverage production, pharmaceutical manufacturing, industrial boiler water treatment, and chemical processing industries that require reliable purified water supply.

Technical Specifications：

Item	Parameter
Product Name	Water Treatment System for Reverse Osmosis Plants
Processing Technology	Reverse Osmosis System
Capacity	3000 liters/hour
Power	5 kW
Voltage	220V
Core Components	Motor, Gears, PLC
Dimensions (L×W×H)	6000×800×2200mm
Weight	800 kg
Keywords	RO Water Treatment

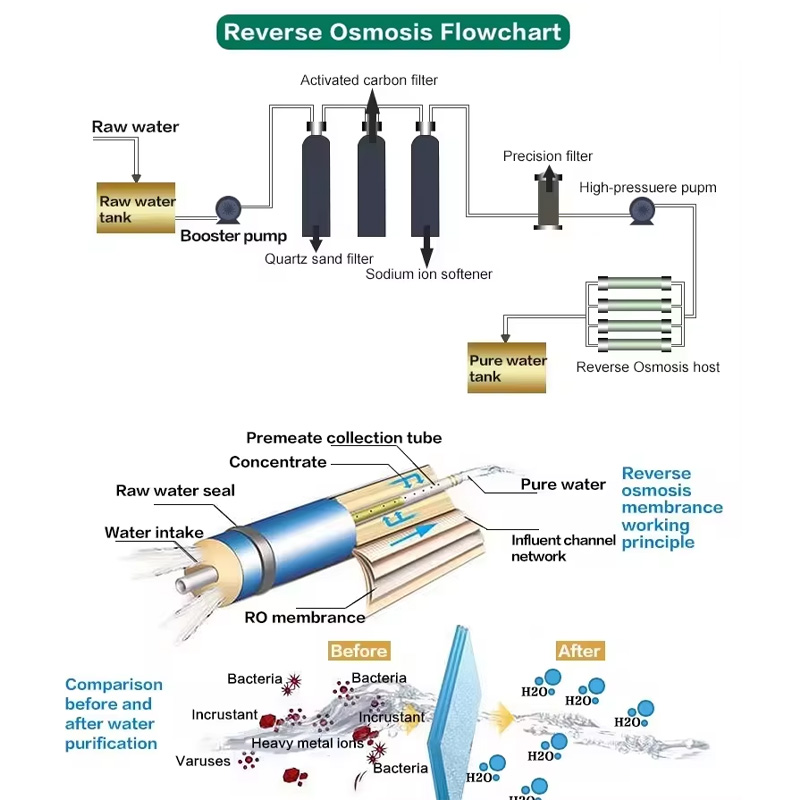

Working principle：

Raw water first enters the pretreatment stage where quartz sand filtration removes suspended solids, turbidity, and large particles. The water then flows through an activated carbon filter that eliminates chlorine, color, and organic substances.

Next, a resin softener reduces calcium and magnesium ions to prevent scaling in the membrane system. After passing through a precision security filter, the water is pressurized by a high-pressure pump and delivered into the reverse osmosis membrane unit.

Under pressure, the semi-permeable RO membrane allows water molecules to pass while rejecting dissolved salts, bacteria, viruses, and organic contaminants. Purified water is collected while concentrated impurities are discharged as wastewater.

Main features：

• High-performance reverse osmosis membrane technology capable of removing more than 97 percent dissolved salts and impurities

• Multi-stage pretreatment system including quartz sand filtration, activated carbon filtration, and resin softening

• Automatic operation system supports continuous purified water production with minimal manual intervention

• High desalination efficiency with effective removal of bacteria, viruses, colloids, and organic contaminants

• Built-in low-pressure protection system prevents high-pressure pump damage during water supply interruption

• Compact process design with simple structure for easy installation, operation, and routine maintenance



Application scenarios：

• Bottled drinking water production plants

• Beverage and food processing water purification systems

• Pharmaceutical purified water preparation lines

• Industrial boiler feedwater purification systems

• Chemical and petrochemical manufacturing water treatment

• Electronics manufacturing process water purification

FAQ

Q1: What is the hourly pure water output of this RO system?
A: It can stably output 3000 liters of industrial pure water per hour.

Q2: Is this system specially designed for industrial pure water production?

A: Yes, it is professionally built for industrial pure water manufacturing.

Q3: Does this reverse osmosis system support fully automatic operation?

A: Yes, it realizes automatic operation and fault self-checking.

Q4: What harmful substances can this RO system remove from water?

A: It removes ions, bacteria, heavy metals and suspended solids effectively.
