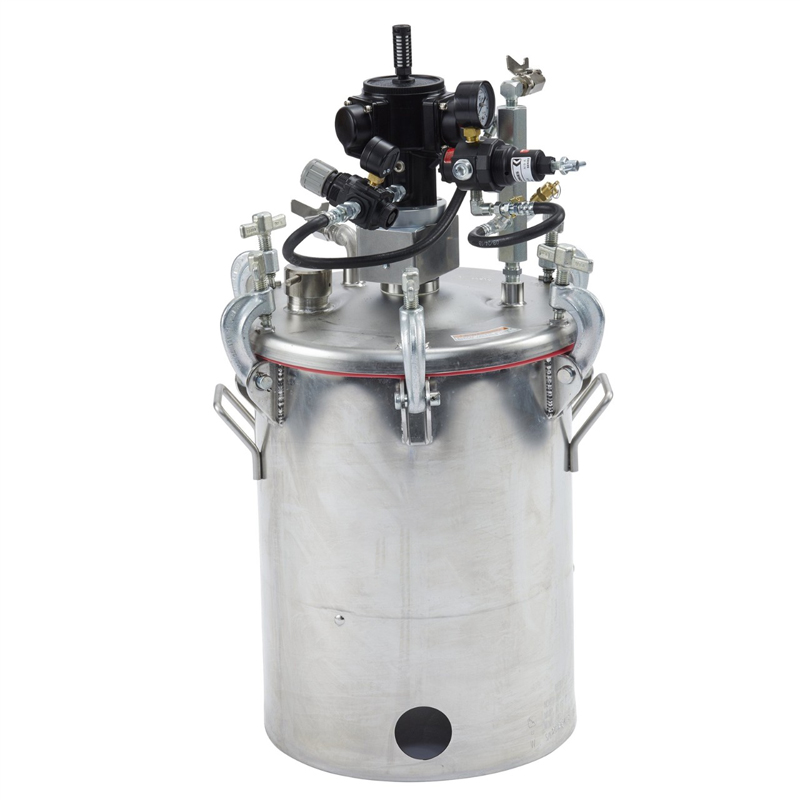

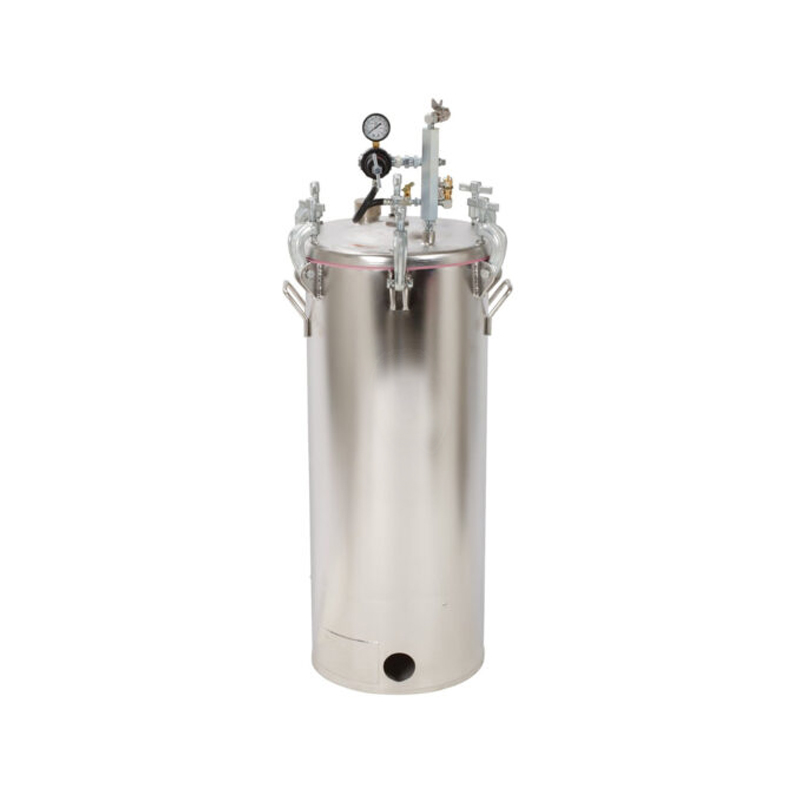

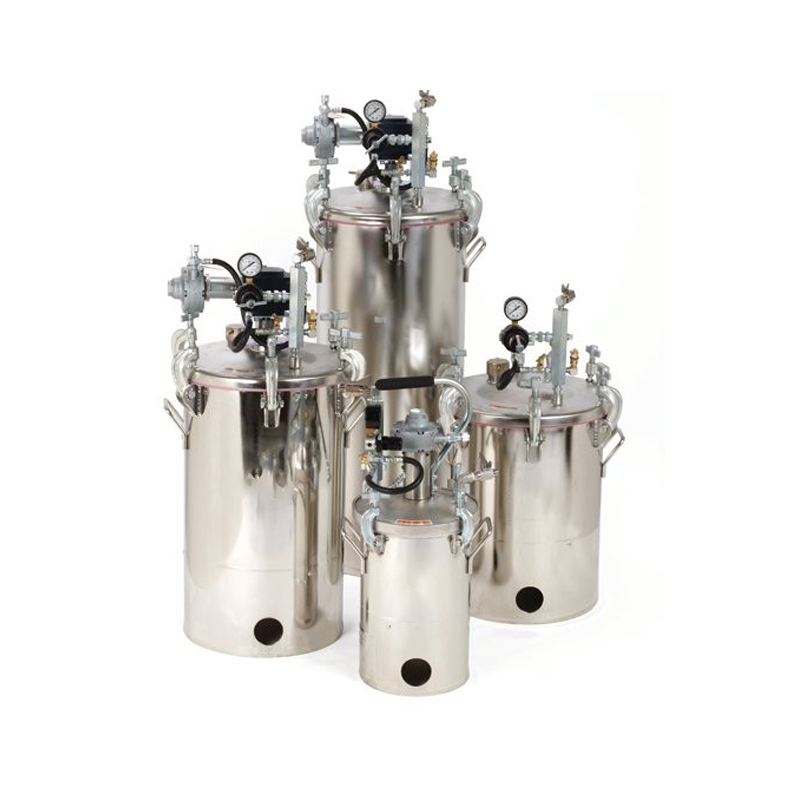

15 Gallon Pressure Tank, Non-Agitated, Low Pressure
- ASME rated to ensure it meets factory standards
- High quality stainless steel design is compatible with many materials
- Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
$2,520.00
CompareLightweight, portable stainless steel pressure tank with pneumatic or without agitator. The robust stainless steel design and the anti-rust coating ensure a long service life.
The optional pneumatic agitator ensures a pulsation-free transport of paints, varnishes, oils or other liquid materials. Suitable up to max. 3.0 bar (with safety valve). The pressure tank is equipped with a manometer for material injection pressure. Mobile with folding wheels.
Industrial grade pressure tanks used to supply, agitate, and pressurize finishing liquids.
For professional use only.
Maximum Air Inlet Pressure 100 psi (0.7 MPa, 7 bar)
Maximum Working Fluid Pressure
Low-Pressure Regulated Tank 15 psi (0.1 MPa, 1 bar)
(for HVLP or low-pressure, fine-adjustment applications)
High-Pressure Regulated Tank 100 psi (0.7 MPa, 7 bar)
Related products
-
Food Processing Industry, Mixing Tanks
Stainless Steel insulated Mixing Tank Pesticide Formulation, Capacity:3000 L
Food Processing Industry, Mixing TanksStainless Steel insulated Mixing Tank Pesticide Formulation, Capacity:3000 L

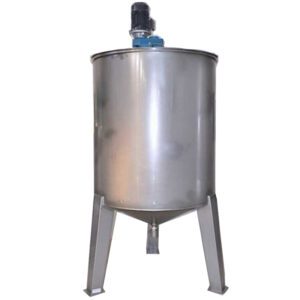

Stainless Steel Mixing Tanks
