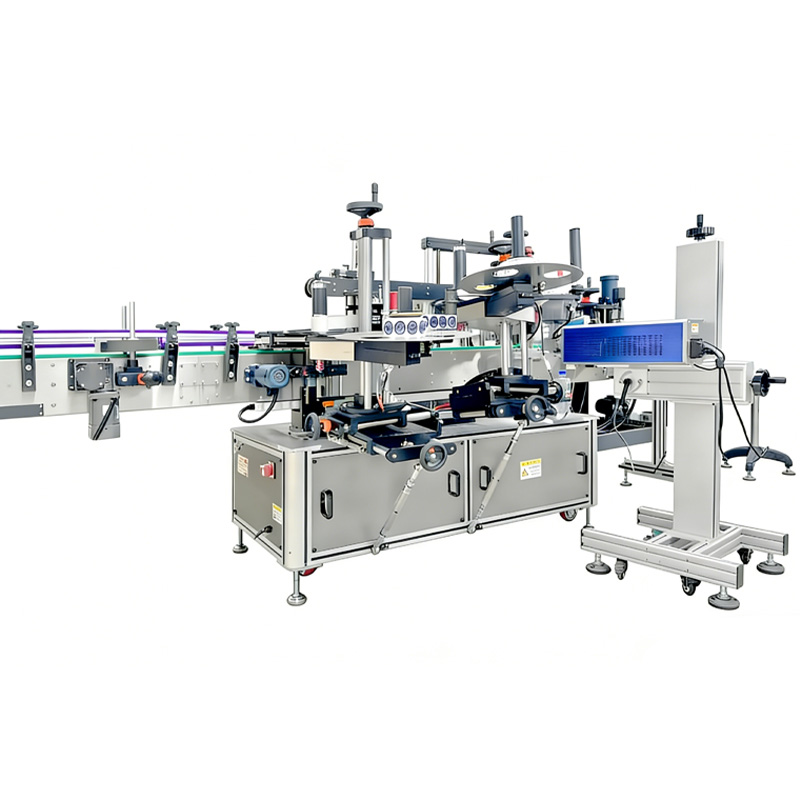

1200 bottles/h Automatic Round Glass Bottle Labeling Machine

Labeling Machine Product Introduction

The 1200 bottles/h Automatic Round Glass Bottle Labeling Machine is a high-performance labeling solution for glass bottles in the food, beverage, wine, and pharmaceutical industries. Equipped with advanced self-adhesive labeling technology, this machine ensures precise label placement on round bottles with minimal deviation. Its fully automatic operation, adjustable speed, and robust construction provide reliable and continuous production. The machine supports various bottle diameters and heights, making it ideal for small to medium-scale production lines. Easy to operate and maintain, it significantly improves labeling efficiency while reducing labor costs.

Technical Specifications：

Labeling Accuracy	±1 mm
Label Roll Max Outer Diameter	400 mm
Label Roll Inner Diameter	76.2 mm
Production Capacity	1200 bottles/h
Max Label Width (Height)	180 mm (customizable)
Max Bottle Height	300 mm
Applicable Bottle Size	Diameter: 30–120 mm, Height: 50–300 mm (customizable)
Applicable Label Material	PP, PET, OPS, Paper
Power Supply	2 kW, 220V/380V (customizable)

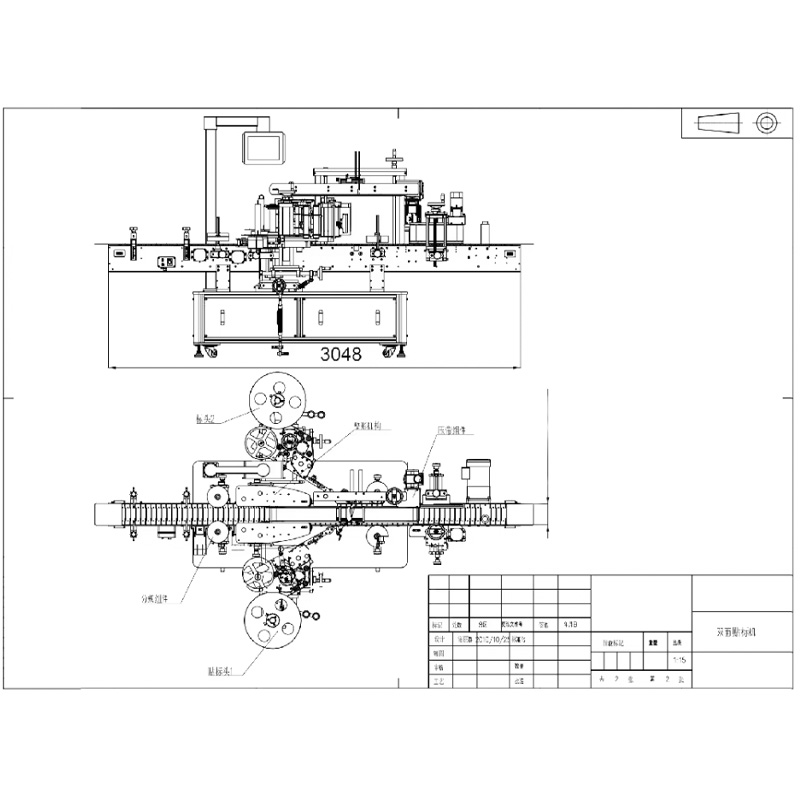

Overall Dimensions	3000 × 1500 × 1500 mm (L×W×H)
Net Weight	500 kg

Main features：

• High-speed labeling: 1200 bottles per hour for efficient production.
• Accurate placement: ±1 mm labeling precision for round glass bottles.
• Adjustable operation: Suitable for various bottle sizes and heights.
• Fully automatic: Minimal manual intervention and reduced labor cost.
• Durable construction: Stainless steel and industrial-grade components for long service life.

Application Scenarios：

• Beverage industry: carbonated drinks, juice, and bottled water.
• Wine production: labeling glass wine bottles of different sizes.
• Pharmaceutical: labeling medicine or supplement bottles.
• Food industry: sauces, oils, and condiments in glass bottles.
• Cosmetic industry: essential oils, serums, and lotions in glass bottles.



FAQ

• Q: What is the labeling speed of this machine?
  A: It can label up to 1200 bottles per hour.
• Q: What bottle sizes are compatible?
  A: Suitable for round bottles with diameter 30–120 mm and height 50–300 mm (customizable).
• Q: What type of labels can be used?
  A: Supports self-adhesive labels, protective films, and barcodes.
• Q: Is it easy to operate?
  A: Yes, it features a user-friendly interface and minimal manual operation.
• Q: What power supply is required?
  A: 220V/380V, 50/60Hz, adjustable depending on customer needs.
