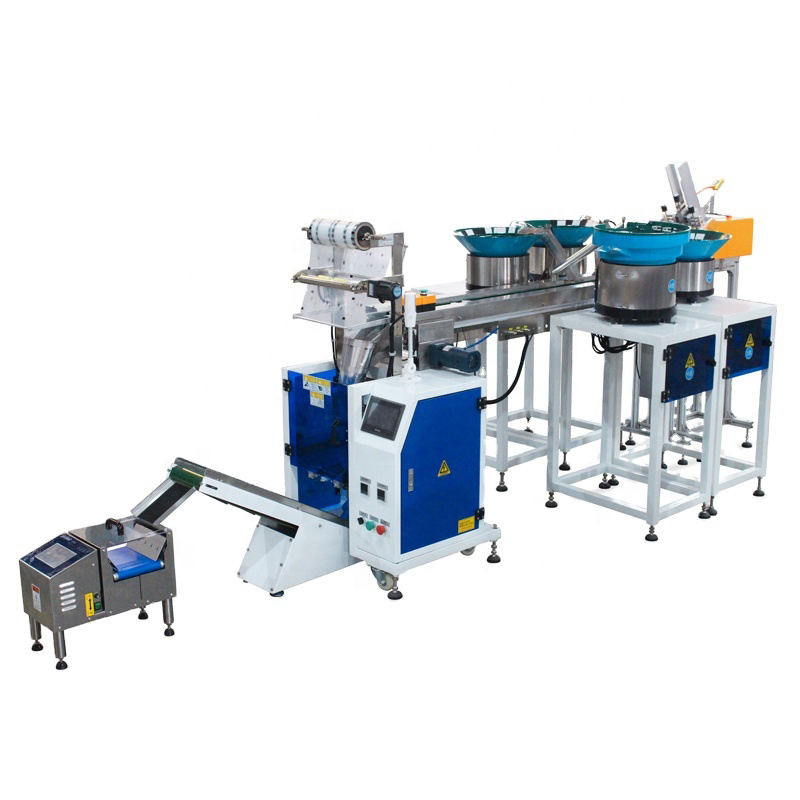

1-50 Bags/Min Weighing Packaging Machine for Small Parts
This automatic weighing packaging machine is designed for small parts and mixed items. With a speed of 1–50 bags per minute, it integrates counting, weighing, filling, and sealing. Featuring PLC control, four-side sealing, and pneumatic operation, it ensures accurate packaging, strong sealing, and stable performance for hardware, electronics, and industrial component packaging.
Compare
Product Introduction Weighing Packaging Machine
The 1–50 bags per minute weighing packaging machine is an automatic packaging system designed for small parts and mixed component packaging. It integrates counting, weighing, bag forming, filling, sealing, and cutting into a continuous and efficient process, ensuring stable and consistent packaging results.
This equipment is suitable for packaging single items or combinations of two to three different products in one bag. It helps improve packaging efficiency while maintaining accurate quantity control and neat packaging appearance. The machine uses a programmable control system, allowing operators to easily manage different product settings and production requirements.
It is widely used in hardware manufacturing, electronics assembly, plastic parts production, and light industrial packaging industries. The machine provides a reliable solution for businesses that require flexible packaging, precise counting, and efficient handling of small components in various production environments.
Technical Specifications
| Item | Parameter |
|---|---|
| Packaging Dimensions | L: 50-300 mm, W: 90-250 mm |
| Maximum Film Width | 520 mm |
| Packaging Materials | OPP, CPP, Laminated Film |
| Air Supply | 0.4-0.6 MPa |
| Packaging Speed | 10-50 bags/min (depending on count quantity and material size) |
| Power | AC220V or 380V 2KW-6KW |
| Applications | Daily Necessities, Chemicals, Machinery & Hardware |
| Fill Material | Granular, Solid |
| Main Functions | Counting and Automatic Packaging |

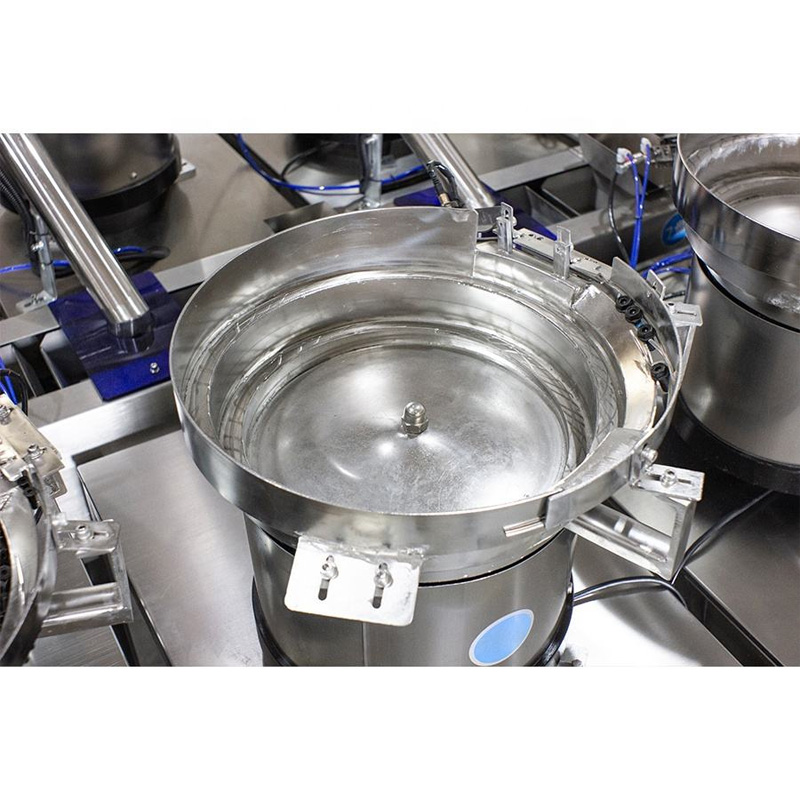

| Feeding Type | Vibrating Bowl |
| Bag Type | 3-Side Seal, Fin Seal |
| Count Quantity | 1-20 pcs |
Working principle

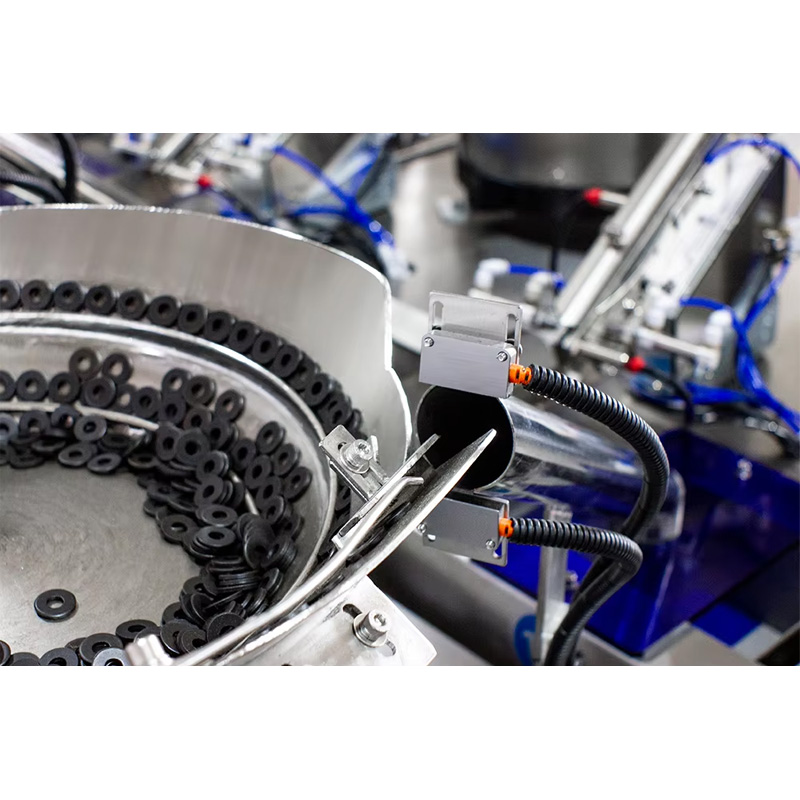

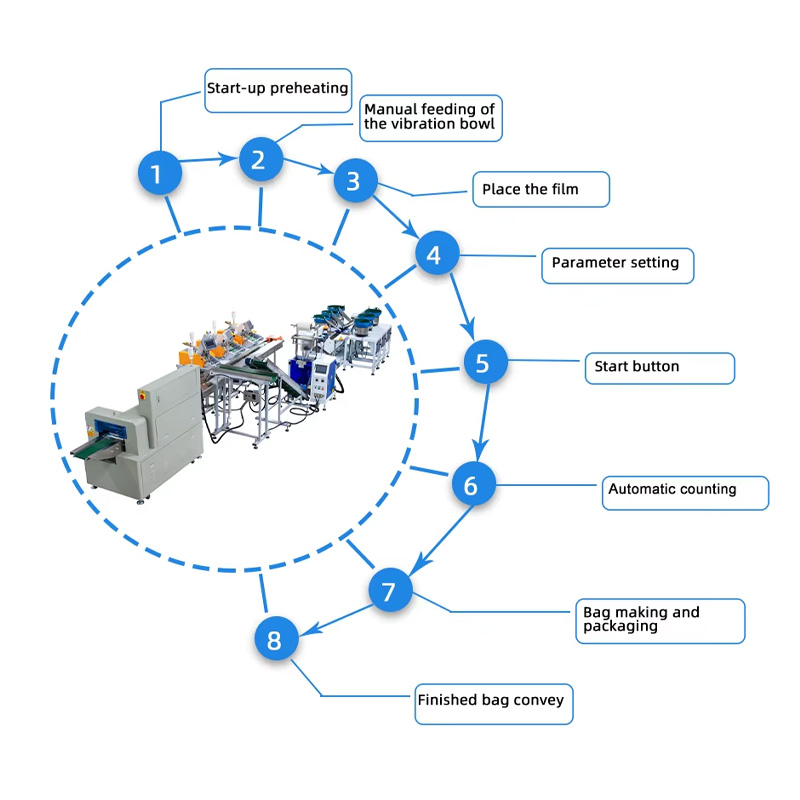

The machine feeds small parts into the counting and weighing system, where sensors accurately detect and measure the preset quantity. Once the required amount is reached, the materials are released into a forming bag made from OPP/CPP film. The system then performs four-side sealing using pneumatic heat sealing technology, followed by cutting and discharge. The PLC control system coordinates all processes to ensure precise operation and consistent packaging quality.
Main features
• PLC programmable control system enables easy operation and flexible switching between product types
• Supports single-item and mixed-item packaging for up to two or three different components per bag
• Four-side sealing structure ensures strong sealing performance and neat, attractive bag appearance
• Pneumatic sealing system provides stable sealing pressure and consistent packaging quality
• Integrated counting and weighing system improves accuracy and reduces manual labor requirements
• Compatible with auxiliary equipment such as printers, labeling systems, conveyors, and checkweighers
Application scenarios
• Electronic components packaging including connectors, clips, and small accessories
• Plastic parts and molded component packaging in industrial production
• Mixed product packaging for assembly kits and hardware sets
• Light industrial component packaging for manufacturing and distribution
• Accessories packaging for furniture, appliances, and mechanical parts
• General-purpose packaging for small items requiring accurate counting and sealing
FAQ
A: Yes, it is designed for weighing and packing various small parts.

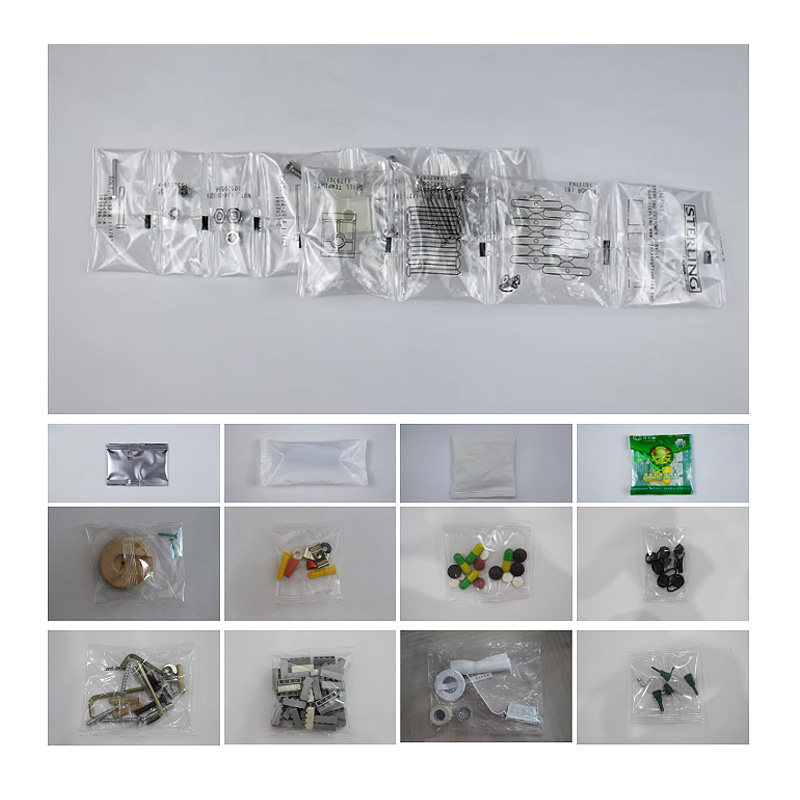

A: It fits screws, nuts, bolts, plastic fittings and other small hardware.

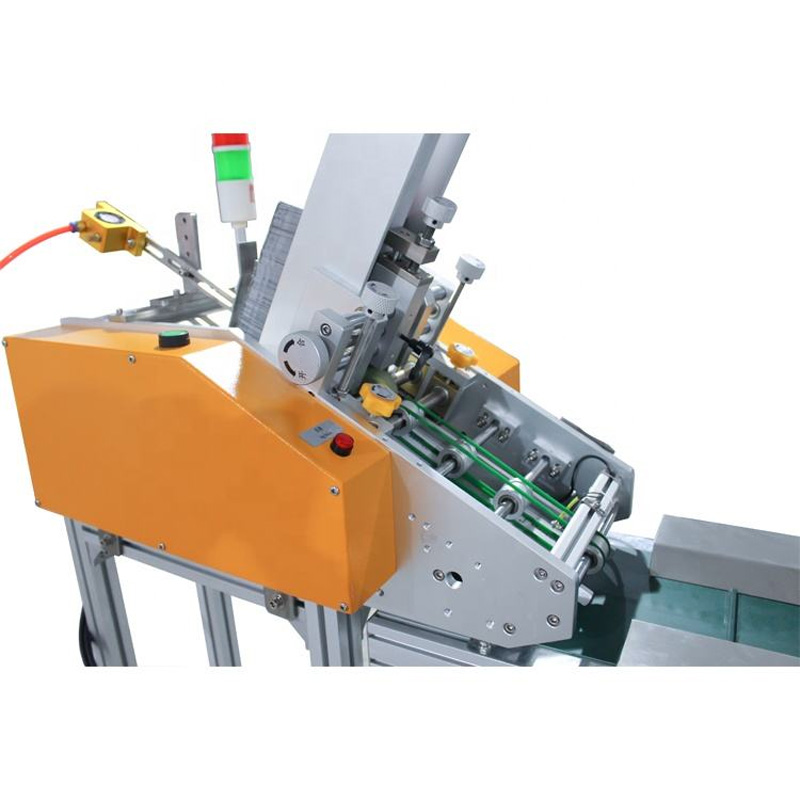

A: Yes, material contact parts are made of stainless steel.
A: Yes, both weight and speed can be set on the control panel.
Why Choose Us
• Flexible packaging capability supports both single and mixed product applications efficiently
• Accurate counting and weighing system ensures consistent packaging quality and reduces errors
• Stable PLC control system simplifies operation and improves production efficiency
• Strong sealing technology guarantees secure packaging and protects product integrity
• Durable machine structure ensures reliable long-term industrial performance
• Easy integration with auxiliary equipment enhances overall packaging line automation
Contact us to get your quotation now.
Get in touch with our engineering team.
